MSTDatasheet (PDF)

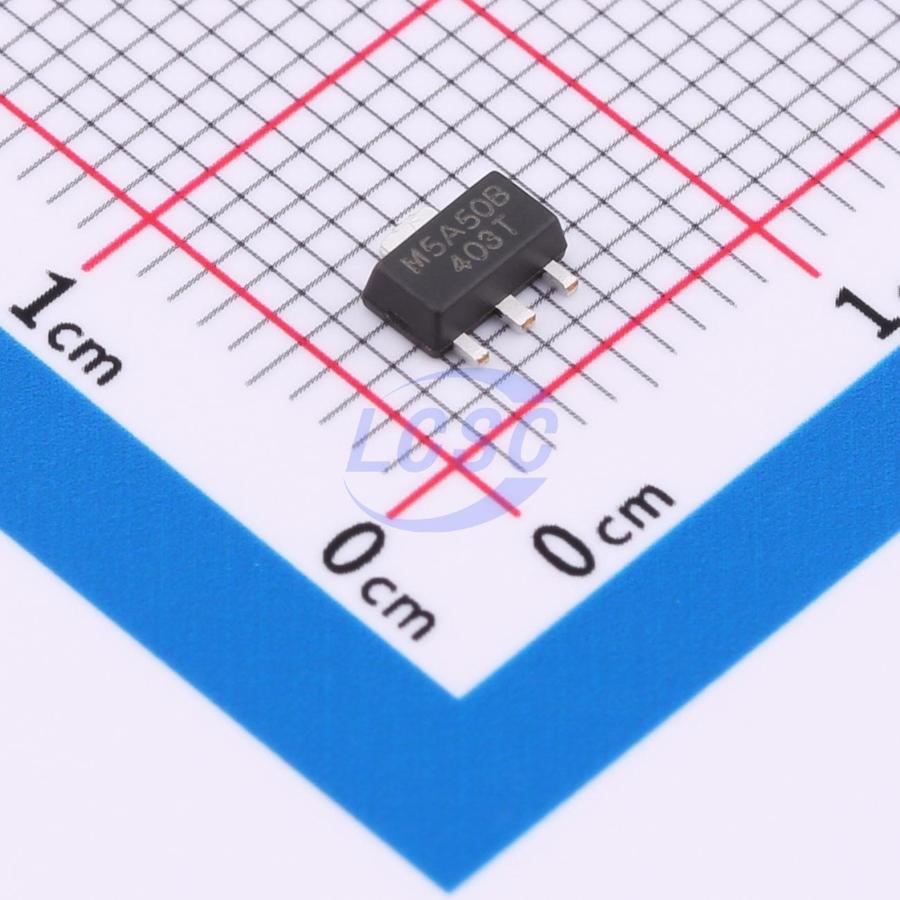

MST5A50BTS-C
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
100V,Low-Dropout Voltage Regulator
- Manufacturer
- MST
- Manufacturer part #
- MST5A50BTS-C
- Store part #
- C22395095
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,415 in stock
#C22395095
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.12 | ₹185.60 |
| 50+ | ₹30.56 | ₹1,528.00 |
| 150+ | ₹27.74 | ₹4,161.00 |
| 500+ | ₹24.22 | ₹12,110.00 |
| 2,500+ | ₹16.59 | ₹41,475.00 |
| 5,000+ | ₹15.64 | ₹78,200.00 |
5 × ₹37.12
₹185.60
excl. GST
₹219.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MST5A50BTS-C
₹185.60 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 4.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 100V
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
MST5AXXBTS-C is a high-voltage low-power LDO with an input voltage up to 100V, a static current of 4.5uA (VIN = 12V), ±2% high output voltage accuracy, and a maximum output current of 100mA. MST5AXXBTS-C has a fast response to input voltage transients and load current transients, ensuring no overshoot voltage during startup and short-circuit recovery. MST5AXXBTS-C has short-circuit protection, current limiting protection, and over-temperature protection functions. MST5AXXBTS-C includes two fixed output voltages: 3.3V and 5.0V.
Applications
- Battery-powered Equipment
- Smoke Detector and Sensor
- Micro Controller Applications
- Home Appliance
Key features
- Low Quiescent Current: 4.5uA
- Wide Input Voltage Range: 4V to 100V
- High Output Current: 100mA
- Fixed Output Voltages: 3.3V and 5.0V
- Output Voltage Tolerance: ±2%
- Current Limit Protection
- Short Circuit Protection
- Thermal Shutdown Protection
- Available Packages: SOT89 - 3
