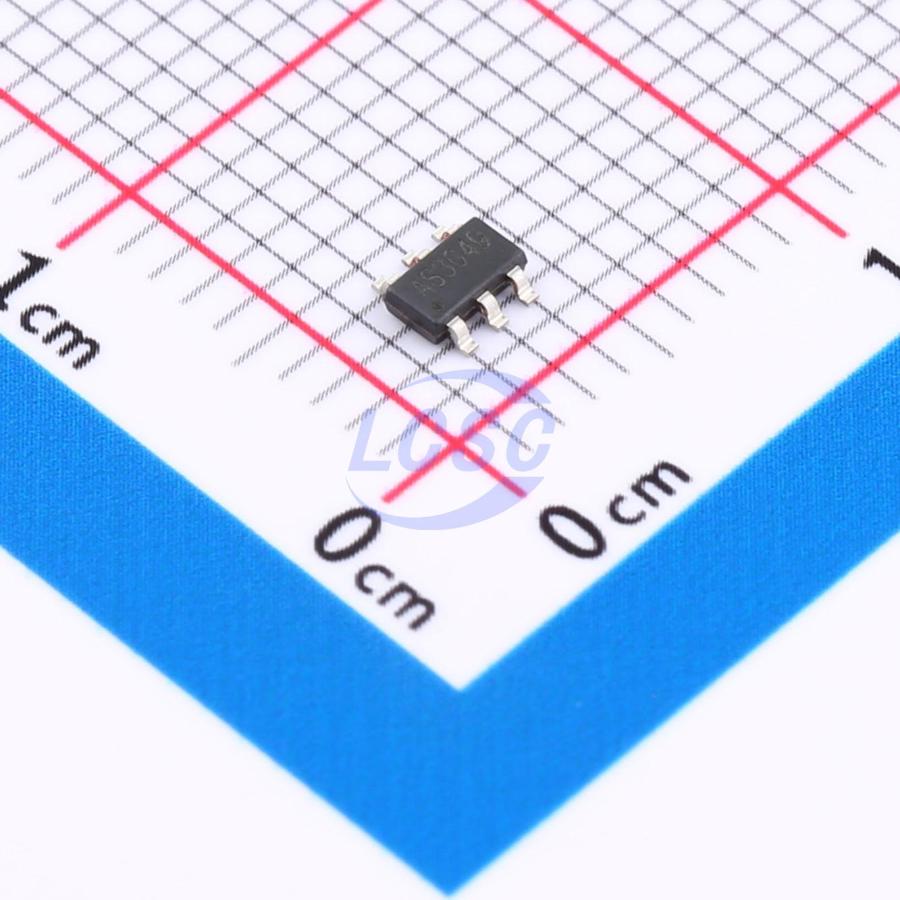

MSKSEMIDatasheet (PDF)
MSTPS563201DDCR
Step-down type 600kHz Adjustable 3A 800mV~6V SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSTPS563201DDCR
- Store part #
- C49208507
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,500 in stock
#C49208507
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.69 | ₹73.45 |
| 50+ | ₹11.67 | ₹583.50 |
| 150+ | ₹10.16 | ₹1,524.00 |
| 500+ | ₹9.02 | ₹4,510.00 |
| 3,000+ | ₹8.12 | ₹24,360.00 |
| 6,000+ | ₹7.67 | ₹46,020.00 |
5 × ₹14.69
₹73.45
excl. GST
₹86.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSTPS563201DDCR
₹73.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Outputs
- 1
- Function
- Step-down type
- Frequency - Switching
- 600kHz
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~16V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Output Voltage
- 800mV~6V
- Quiescent Current
- 600uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
Synchronous buck converter with constant on-time control, employing this mode as the main control loop. Supports low-ESR ceramic capacitors and achieves fast transient response without external compensation components — only 50mV deviation at 1.2V output under 0-to-3A load transients. The control scheme enables seamless transition between heavy-load PWM mode and light-load operation, maintaining high efficiency under light-load conditions. Input voltage range: 4.0V to 16V; adjustable output voltage: 0.8V to 6V; adjustable soft-start time. Integrated over-temperature protection, undervoltage protection, and cycle-by-cycle current limiting. 6-pin TSOT23-6 package; operating temperature range: -40°C to 85°C.
Applications
- Digital TV
- Home network terminal
- Digital set-top box
- DSL modem
Key features
- Constant on-time operation mode
- Ultra-fast transient response
- Compatible with low-ESR ceramic capacitors
- Low output ripple
- 0.8V reference voltage
- Output voltage range: 0.8V to 6V
- 3A output current
- 600kHz pseudo-fixed frequency (at 5V output)
- Light load mode switching
- 4.0V to 16V input voltage range
- Internal soft-start
- Cycle-by-cycle valley current limiting
- Integrated internal compensation
- TSOT23-6 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MSTPS563200DDCR#C49208508MSKSEMI · SOT-23-6 | MSKSEMI | SOT-23-6 | 3,205 | ₹22.41 · 3,205 in stock | View |
