MSKSEMI

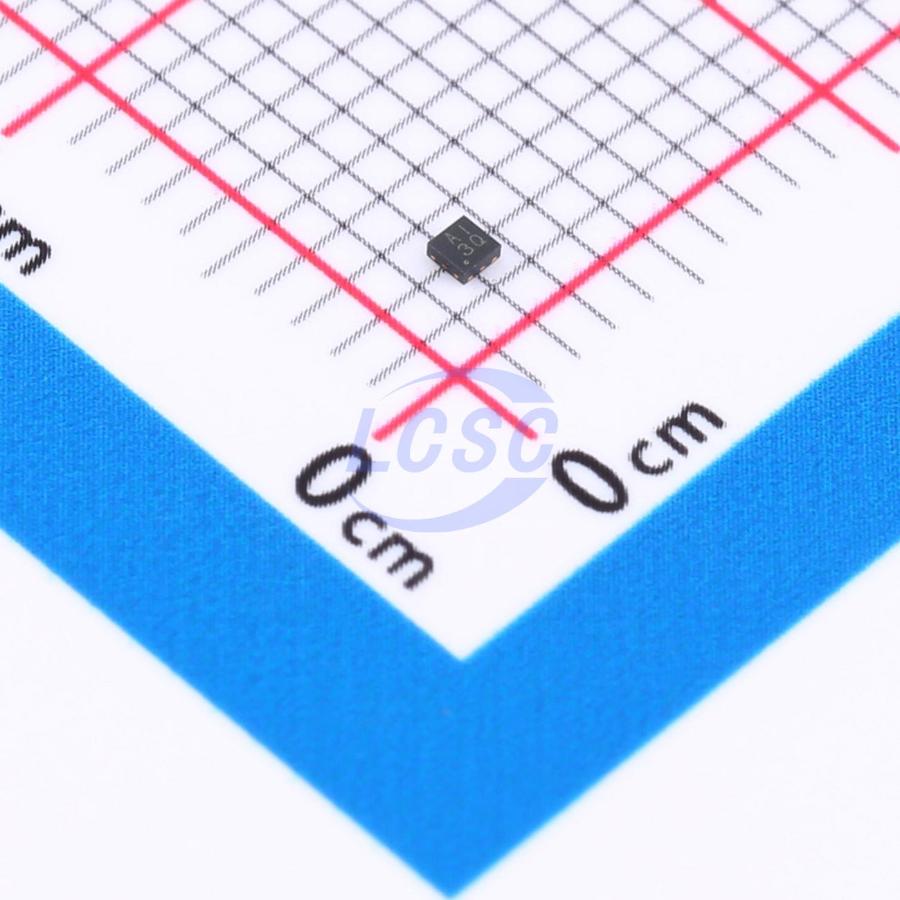

MSTPS7A2015PDQNR

Positive DFN-4L(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

DFN-4L(1x1)RoHSActive

IC REG LINEAR 300mA DFN-4L(1x1)

Manufacturer: MSKSEMI
Manufacturer part #: MSTPS7A2015PDQNR
Store part #: C49208538
Package / case: DFN-4L(1x1)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,895 in stock

#C49208538

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹27.88	₹139.40
50+	₹24.46	₹1,223.00
150+	₹22.99	₹3,448.50
500+	₹21.15	₹10,575.00
2,500+	₹19.37	₹48,425.00
5,000+	₹18.88	₹94,400.00

Quantity (min 5, multiples of 5)

5 × ₹27.88

₹139.40

excl. GST

₹164.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

MSTPS7A2015PDQNR

₹139.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 800nA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Over Current Protection;Short Circuit Protection;Output discharge;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.007 g

Overview

MSTPS7A20xxPDQNR is a low-I0, low-dropout linear regulator with a 300mA drive current. The device features <0.1μA shutdown current and 0.8μA quiescent current under light-load conditions, delivering excellent power consumption performance for portable devices. It provides an output voltage range of 0.8~3.6V for a wide variety of applications, with integrated thermal shutdown and current-limiting protection.
