MSKSEMIDatasheet (PDF)

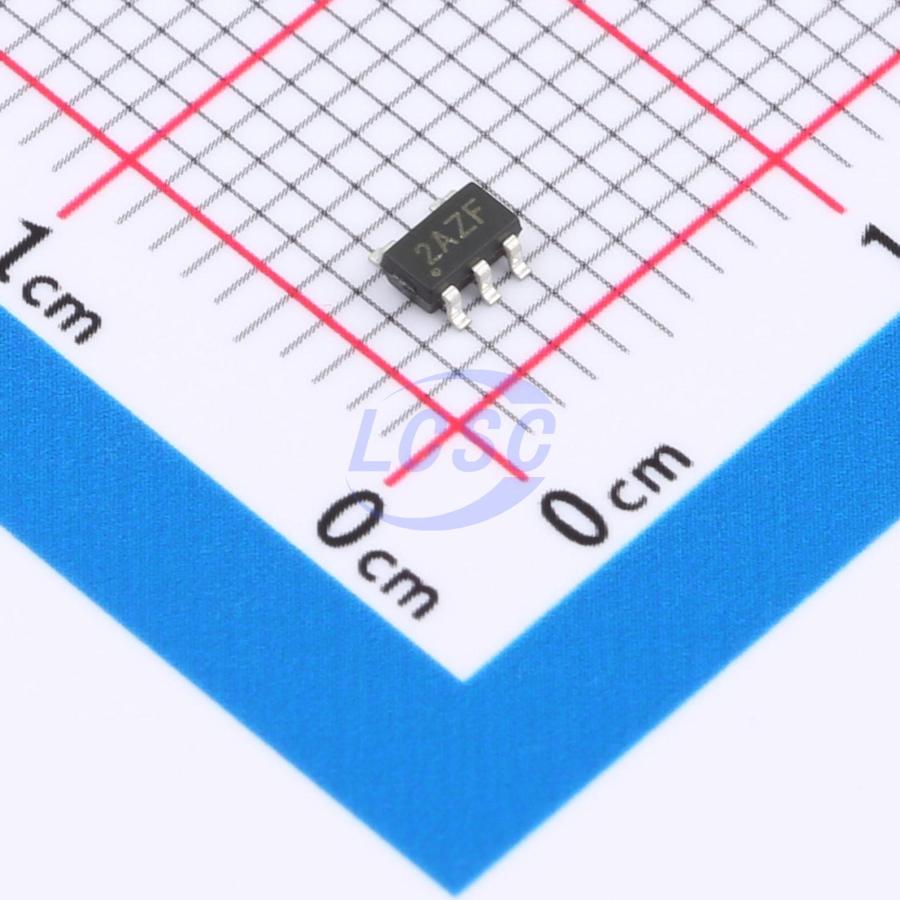

MSTPS7A2033PDBVR
Linear Voltage Regulator IC 400mA SOT-23-5
SOT-23-5ROHS CompliantActive
Three-terminal buck regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSTPS7A2033PDBVR
- Store part #
- C45367201
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,440 in stock
#C45367201
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.06 | ₹75.30 |
| 50+ | ₹11.93 | ₹596.50 |
| 150+ | ₹10.36 | ₹1,554.00 |
| 500+ | ₹9.19 | ₹4,595.00 |
| 3,000+ | ₹8.26 | ₹24,780.00 |
| 6,000+ | ₹7.78 | ₹46,680.00 |
5 × ₹15.06
₹75.30
excl. GST
₹88.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSTPS7A2033PDBVR
₹75.30 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Operating Voltage
- 10V
- Output Current
- 400mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The MSTPS7A20XXPDBVR series is a high-precision, low-dropout, low-quiescent-current three-terminal step-down voltage regulator. With an input voltage range up to 10V, it delivers high output current capability under minimal dropout conditions with excellent regulation. The device provides output current up to 400mA, making it a high-PSRR linear regulator. The enable pin EN controls the device entry into standby mode, significantly reducing quiescent current consumption — particularly well-suited for applications with stringent battery life requirements. The device features current limiting for short-circuit protection and thermal shutdown to prevent overheating, making it widely applicable in audio, video, and communications equipment.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
- Smart battery packs
- EV and hybrid vehicle battery management systems
Key features
- Maximum output current 400mA
- Low dropout 75mV @ 50mA, VOUT = 3.3V
- Low temperature coefficient
- Withstand voltage 10V
- Quiescent current 2.0μA @ 6V
- Output voltage accuracy: ±2%
- Output short-circuit protection
- Output current limiting
- High PSRR 76dB @ 1kHz
- Low output noise: 70μVRMS @ 10~100KHz
