MSKSEMIDatasheet (PDF)

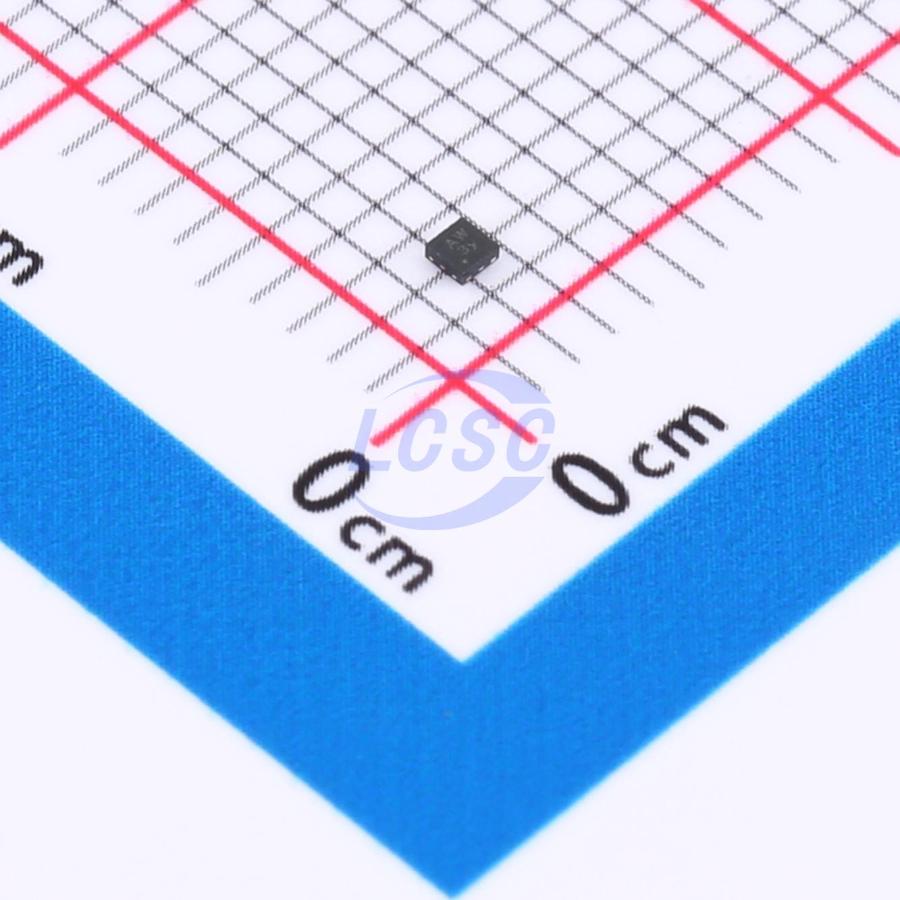

MSTPS7A2033PDQNR
3.3V Positive DFN-4L(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN-4L(1x1)RoHSActive
IC REG LINEAR 3.3V 300mA DFN-4L(1x1)
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSTPS7A2033PDQNR
- Store part #
- C49208543
- Package / case
- DFN-4L(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,280 in stock
#C49208543
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.57 | ₹72.85 |
| 50+ | ₹11.44 | ₹572.00 |
| 150+ | ₹9.88 | ₹1,482.00 |
| 500+ | ₹8.71 | ₹4,355.00 |
| 2,500+ | ₹7.77 | ₹19,425.00 |
| 5,000+ | ₹7.30 | ₹36,500.00 |
5 × ₹14.57
₹72.85
excl. GST
₹85.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
MSTPS7A2033PDQNR
₹72.85 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.007 g
Overview
MSTPS7A20xxPDQNR is a low-I0, low-dropout linear regulator with a 300mA drive current. The device features <0.1μA shutdown current and 0.8μA quiescent current under light-load conditions, delivering excellent power consumption performance for portable devices. It provides an output voltage range of 0.8~3.6V for a wide variety of applications, with integrated thermal shutdown and current-limiting protection.
Applications
- Cellular and smartphones
- Audio/video equipment
- Battery-powered devices
- Portable electronics
Key features
- Quiescent current 0.8μA at light load
- Output voltage accuracy ±2%
- Input voltage range 1.5~5.5V
- Output voltage range 0.8~3.6V
- Thermal shutdown protection
- Current limiting protection
- RoHS compliant and halogen-free
