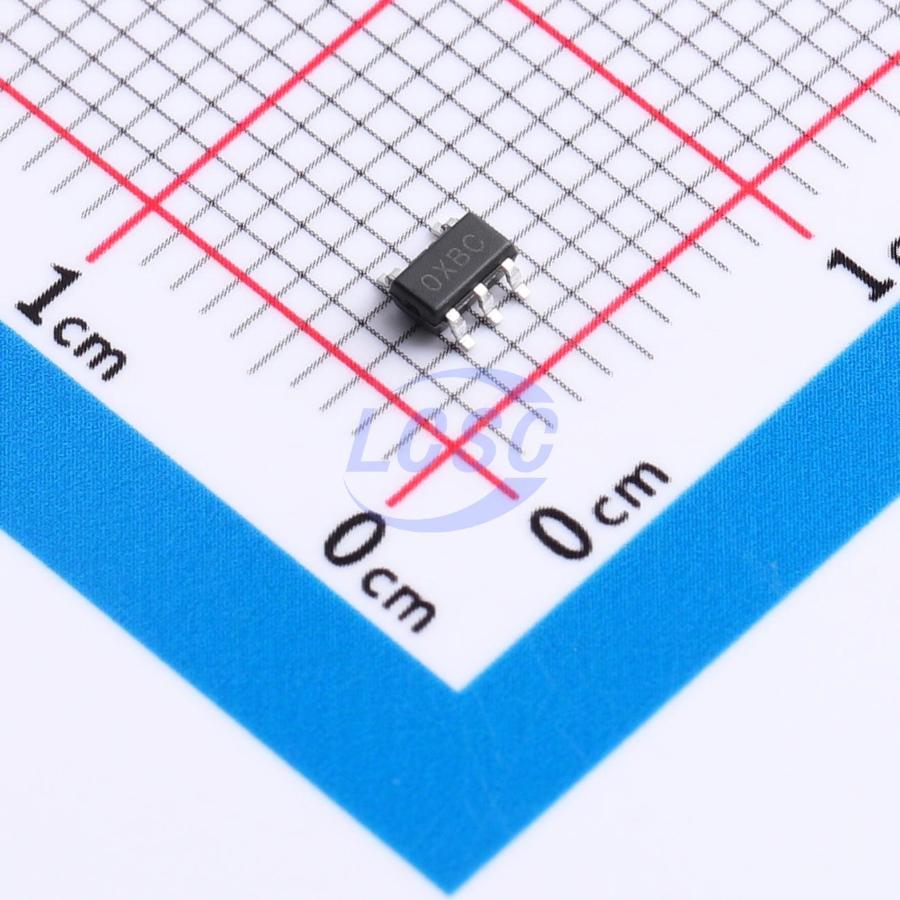

MSXC6210B122MR
1.2V Positive SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 1.2V 600mA SOT-23-5
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSXC6210B122MR
- Store part #
- C49375232
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C49375232
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.74 | ₹73.70 |
| 50+ | ₹11.62 | ₹581.00 |
| 150+ | ₹10.05 | ₹1,507.50 |
| 500+ | ₹8.89 | ₹4,445.00 |
| 3,000+ | ₹7.95 | ₹23,850.00 |
| 6,000+ | ₹7.49 | ₹44,940.00 |
5 × ₹14.74
₹73.70
excl. GST
₹86.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSXC6210B122MR
₹73.70 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
MSXC6210BxxxMR is a low dropout linear regulator with enable function, operating over a voltage range of 1.2V to 5.5V. It delivers up to 600mA of output current with low power consumption in a compact package. With a quiescent current as low as 2μA and near-zero shutdown current, it is ideal for extending battery life in battery-powered devices. The MSXC6210BxxxMR maintains stability with ceramic output capacitors across its wide input voltage range of 1.2V to 5.5V and throughout the full output load current range.
Applications
- Portable battery-powered devices
- Ultra-low-power microcontrollers
- Laptop computers
Key features
- Quiescent ground current: 2 μA (no load)
- Power supply rejection ratio: 75dB at 1kHz
- Adjustable output voltage for application-specific requirements
- Output voltage accuracy: ±2%
- Output current: 600mA in enabled state (VIN ≥ 2.3V)
- Shutdown current: as low as 0.1 μA
- Input voltage range: 1.2V to 5.5V
- Dropout voltage: 0.31V at VOUT ≥ 3V, 600mA
- Fixed output voltage options: 0.8V to 3.3V
- Stable with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- SOT-23-5 package
