micron

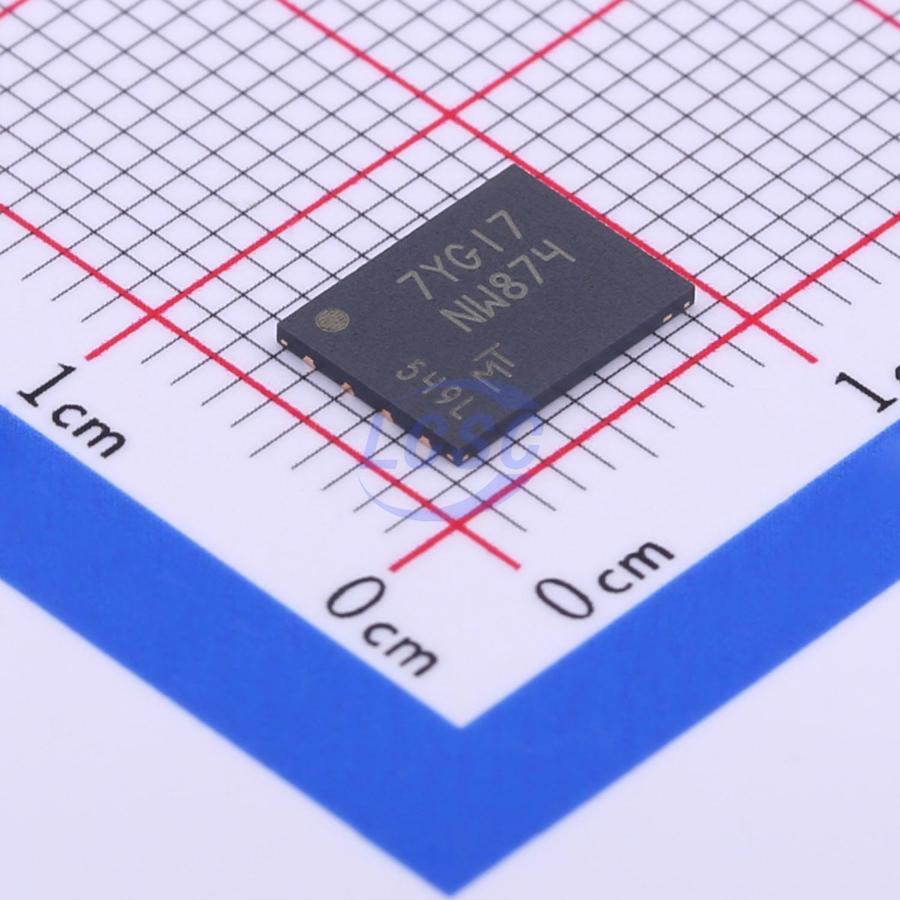

MT29F2G01ABAGDWB-IT:G
2Gbit 2.7V~3.6V 133MHz SPI U-PDFN-8(6x8) Memory
U-PDFN-8(6x8)RoHSActive
2Gb SPI NAND Flash Memory
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,240 in stock
#C410863
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,546.96 | ₹1,546.96 |
| 10+ | ₹1,470.13 | ₹14,701.30 |
| 30+ | ₹1,337.09 | ₹40,112.70 |
| 100+ | ₹1,220.98 | ₹1,22,098.00 |
1 × ₹1,546.96
₹1,546.96
excl. GST
₹1,825.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MT29F2G01ABAGDWB-IT:G
₹1,546.96 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Read buffer function;Write enable latch;Hardware reset function;Software write protection function;Hardware write protection function;ECC error correction function;OTP region write protection and lock function
- Memory Size
- 2Gbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 10 years
- Block Erase Time(tBE)
- 2ms
- Page Programming Time (Tpp)
- 220us
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- 3A991b1a
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.136 g
Overview
Key features
- Single-level cell (SLC) technology
- 2Gb density
- Organization – Page size x1: 2176 bytes (2048+128 bytes) – Block size: 64 pages (128K+8K bytes) – Plane size: 2Gb (2 planes, 1024 blocks per plane)
- Standard and extended SPI-compatible serial bus interface – Instruction, address on 1 pin; data out on 1, 2, or 4 pins – Instruction on 1 pin; address, data out on 2 or 4 pins Instruction, address on 1 pin; data in on 1 or 4 pins
- User-selectable internal ECC supported – 8 bits/sector
- Array performance – 133 MHz clock frequency (MAX) – Page read: 25µs (MAX) with on-die ECC disabled; 70µs (MAX) with on-die ECC enabled Page program: 200µs (TYP) with on-die ECC disabled; 220µs (TYP) with on-die ECC enabled – Block erase: 2ms (TYP)
- Advanced features – Read page cache mode Read unique ID – Read parameter page
- Device initialization – Automatic device initialization after power-up
- Security – Blocks 7:0 are valid when shipped from factory with ECC enabled – Software write protection with lock register Hardware write protection to freeze BP bits – Lock tight to freeze BP bits during one power cycle
- Permanent block lock protection – OTP Space: 10 pages one-time programmable NAND Flash memory area
- Operating voltage range – VCC=2.7–3.6V
- Operating temperature – Industrial: -40℃ to +85℃
- Quality and reliability – Endurance: 100,000 PROGRAM/ERASE cycles – Data retention: JESD47H-compliant; see qualification report – Additional: Uncycled data retention: 10 years 24/7 @85℃
- Package 16-pin SOP, 300 mils (package code: SF) – 8-pin U-PDFN, 8mm x 6mm x 0.65mm (MLP8) (package code: WB) 24-ball T-PBGA, 05/6mm x 8mm (5 x 5 array) (package code: 12)
