micron

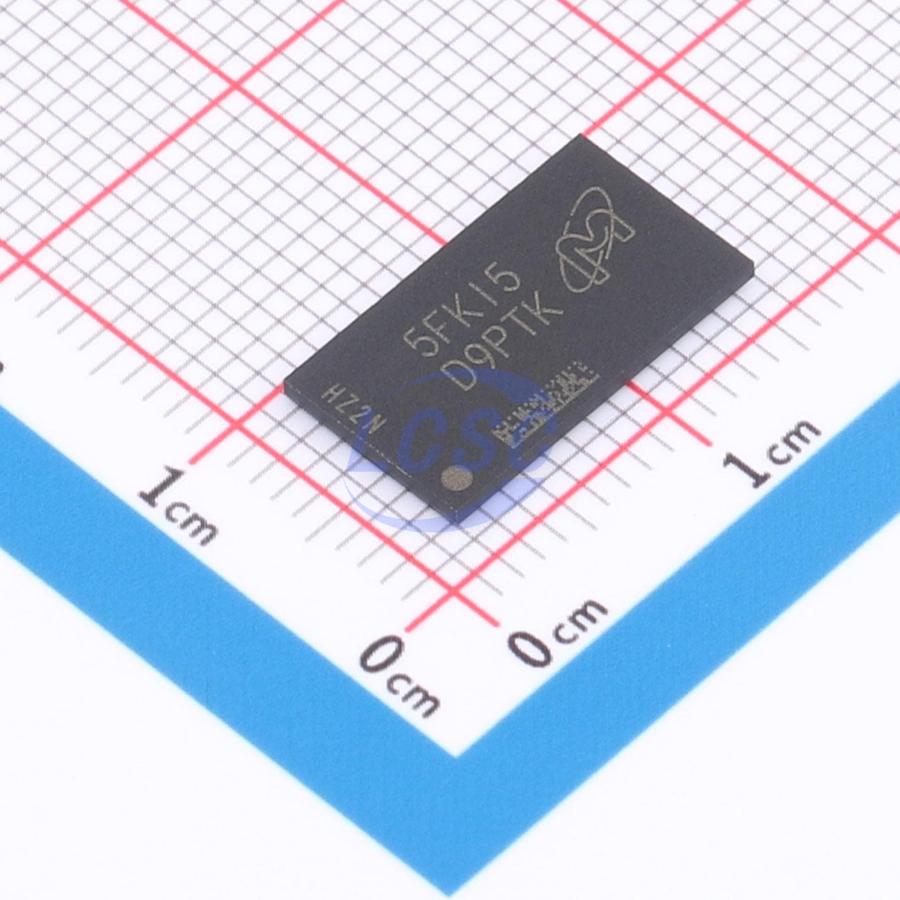

MT41K128M16JT-125:k
2Gbit 800MHz DDR3L SDRAM FBGA-96(8x14) Memory RoHS
FBGA-96(8x14)ROHS CompliantActive
2Gb:x4,x8,x16 DDR3L SDRAM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,140 in stock
#C36513
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,413.87 | ₹2,413.87 |
| 10+ | ₹2,315.98 | ₹23,159.80 |
| 30+ | ₹2,146.32 | ₹64,389.60 |
| 100+ | ₹1,748.90 | ₹1,74,890.00 |
1 × ₹2,413.87
₹2,413.87
excl. GST
₹2,848.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
MT41K128M16JT-125:k
₹2,413.87 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+95℃
- Features
- Auto self-refresh;Write leveling function;Data mask function;Dynamic on-chip termination;Asynchronous reset function
- Refresh Current
- 12mA
- Memory Size
- 2Gbit
- Voltage - Supply
- 46mA;1.283V~1.45V
- Clock Frequency
- 800MHz
- Memory Format
- DDR3L SDRAM
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.396 g
Overview
The 1.35V DDR3L SDRAM device is a low-voltage version of the 1.5V DDR3 SDRAM device. Unless stated otherwise, the DDR3L SDRAM device meets the functional and timing specifications listed in the equivalent density standard or automotive DDR3 SDRAM data sheet located on www.micron.com.
Key features
- VDD = VDDQ = 1.35V (1.283–1.45V)
- Backward-compatible to VDD = VDDQ = 1.5V±0.075V
- Differential bidirectional data strobe
- 8n-bit prefetch architecture
- Differential clock inputs (CK, CK#)
- 8 internal banks
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Programmable CAS (READ) latency (CL)
- Programmable posted CAS additive latency (AL)
- Programmable CAS (WRITE) latency (CWL)
- Fixed burst length (BL) of 8 and burst chop (BC) of 4 (via the mode register set [MRS])
- Selectable BC4 or BL8 on-the-fly (OTF)
- Self refresh mode
- TC of 0℃ to +95℃ – 64ms, 8192-cycle refresh at 0℃ to +85℃ 32ms at +85℃ to +95℃
- Self refresh temperature (SRT)
- Automatic self refresh (ASR)
- Write leveling
- Multipurpose register
- Output driver calibration
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MT41K128M16JT-107:K#C2841151micron · FBGA-96(8x14) | micron | FBGA-96(8x14) | 24 | ₹1,421.66 · 24 in stock | View |
| MT41K128M16JT-125 AIT:K#C20569043micron · 96-FBGA(8x14) | micron | 96-FBGA(8x14) | On request | ₹1,900.60 · 0 in stock | View | |
 | MT41K128M16JT-125 AAT:K#C2909868micron · FBGA-96(8x14) | micron | FBGA-96(8x14) | On request | ₹1,256.51 · 0 in stock | View |
| MT41K128M16JT-125 XIT:K TR#C2063694micron · FBGA-96(8x14) | micron | FBGA-96(8x14) | On request | ₹1,050.25 · 0 in stock | View | |
| MT41K128M16JT-107 IT:K TR#C2062004micron · FBGA-96(8x14) | micron | FBGA-96(8x14) | On request | ₹404.36 · 0 in stock | View | |
