micron

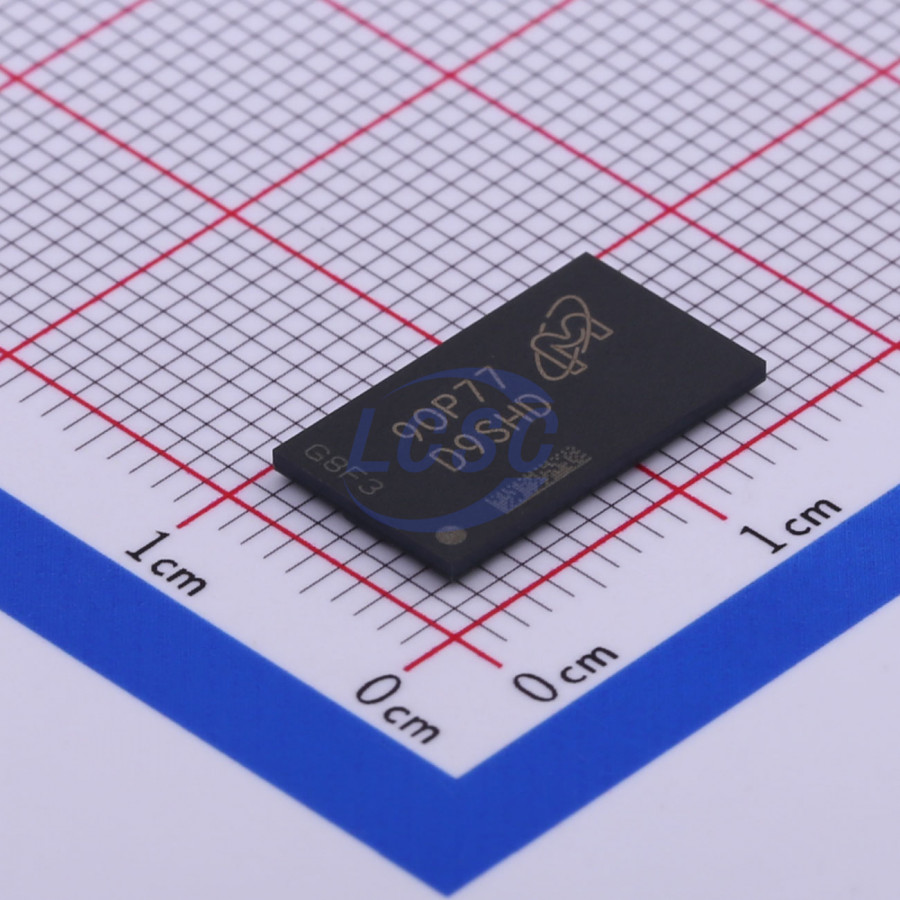

MT41K256M16TW-107:P
4Gbit 933MHz DDR3L SDRAM FBGA-96(8x14) Memory
PopularFBGA-96(8x14)RoHSActive
4Gb:X4,x8,X16 DDR3L SDRAM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,425 in stock
#C253882
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,992.40 | ₹2,992.40 |
| 10+ | ₹2,854.20 | ₹28,542.00 |
| 30+ | ₹2,614.51 | ₹78,435.30 |
| 100+ | ₹2,283.58 | ₹2,28,358.00 |
1 × ₹2,992.40
₹2,992.40
excl. GST
₹3,531.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
MT41K256M16TW-107:P
₹2,992.40 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+95℃
- Features
- Auto self-refresh;Auto precharge function;Asynchronous reset function;Data mask function;Write leveling function;Dynamic on-chip termination;ZQ calibration function
- Refresh Current
- 15mA
- Memory Size
- 4Gbit
- Voltage - Supply
- 32mA;1.283V~1.45V
- Clock Frequency
- 933MHz
- Memory Format
- DDR3L SDRAM
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
DDR3L SDRAM (1.35V) is a low voltage version of the DDR3 (1.5V) SDRAM. Refer to DDR3 (1.5V) SDRAM (Die Rev :E) data sheet specifications when running in 1.5V compatible mode.
Key features
- VDD = VDDQ = 1.35V (1.283–1.45V)
- Backward compatible to VDD = VDDQ = 1.5V ± 0.075V – Supports DDR3L devices to be backward compatible in 1.5V applications
- Differential bidirectional data strobe
- 8n-bit prefetch architecture
- Differential clock inputs (CK, CK#)
- 8 internal banks
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Programmable CAS (READ) latency (CL)
- Programmable posted CAS additive latency (AL)
- Programmable CAS (WRITE) latency (CWL)
- Fixed burst length (BL) of 8 and burst chop (BC) of 4 (via the mode register set [MRS])
- Selectable BC4 or BL8 on-the-fly (OTF)
- Self refresh mode
- TC of 105℃ – 64ms, 8192-cycle refresh up to 85℃; 32ms, 8192-cycle refresh at >85℃ to 95℃; 16ms, 8192-cycle refresh at >95℃ to 105℃
- Self refresh temperature (SRT)
- Automatic self refresh (ASR)
- Write leveling
- Multipurpose register
- Output driver calibration
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MT41K256M16TW-093:P#C2064402micron · FBGA-96(8x14) | micron | FBGA-96(8x14) | 24 | ₹3,281.93 · 24 in stock | View | |
 | MT41K256M16TW-107 XIT:P#C1349259micron · FBGA-96(8x14) | micron | FBGA-96(8x14) | 1 | ₹6,051.26 · 1 in stock | View |
| MT41K256M16TW-107 AAT:P TR#C2061252micron · FBGA-96(8x14) | micron | FBGA-96(8x14) | On request | Price on request | Quote | |
| MT41K256M16TW-107 AUT:P TR#C2064331micron · FBGA-96(8x14) | micron | FBGA-96(8x14) | On request | Price on request | Quote | |
| MT41K256M16TW-093 IT:P#C20567119micron · 96-FBGA (8x14) | micron | 96-FBGA (8x14) | On request | Price on request | Quote | |
