onsemiDatasheet (PDF)

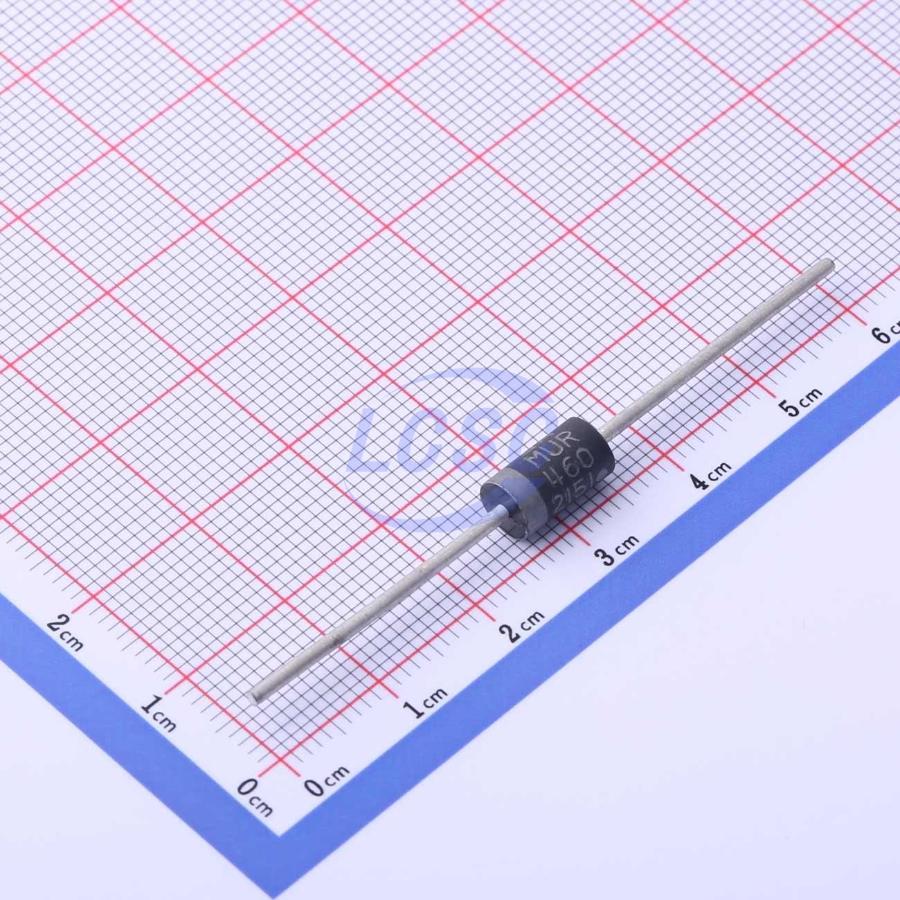

MUR460G
75ns 600V 1 Independent 1.28V@4A 4A Through Hole,D4.8xL7.3mm Single Diodes RoHS
Through Hole,D4.8xL7.3mmROHS3 CompliantActive
Diode 600V 4A Through Hole,D4.8xL7.3mm
- Manufacturer
- onsemi
- Manufacturer part #
- MUR460G
- Store part #
- C179590
- Package / case
- Through Hole,D4.8xL7.3mm
- Category
- Single Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
854 in stock
#C179590
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.78 | ₹86.78 |
| 10+ | ₹70.42 | ₹704.20 |
| 30+ | ₹62.35 | ₹1,870.50 |
| 100+ | ₹54.30 | ₹5,430.00 |
| 500+ | ₹43.39 | ₹21,695.00 |
| 1,000+ | ₹40.99 | ₹40,990.00 |
1 × ₹86.78
₹86.78
excl. GST
₹102.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per bag
MUR460G
₹86.78 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 75ns
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - Forward(Vf@If)
- 1.28V@4A
- Reverse Leakage Current (Ir)
- 10uA
- Non-Repetitive Peak Forward Surge Current
- 110A
- Current - Rectified
- 4A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 500 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.108 g
Overview
These state−of−the−art devices are a series designed for use in switching power supplies, inverters and as free wheeling diodes.
Applications
- switching power supplies
- inverters
- free wheeling diodes
Key features
- Ultrafast 25 ns, 50 ns and 75 ns Recovery Times
- 175℃ Operating Junction Temperature
- Low Forward Voltage
- Low Leakage Current
- High Temperature Glass Passivated Junction
- Reverse Voltage to 600 V
- Shipped in Plastic Bags, 500 per Bag
- Available in Tape and Reel, 1500 per Reel, by Adding a “RLG’’ Suffix to the Part Number
- MUR460 available in Fan Fold Ammo Pak, 1000 per Box, by adding a “FFG” suffix to the part number
- These are Pb−Free Packages
