onsemiDatasheet (PDF)

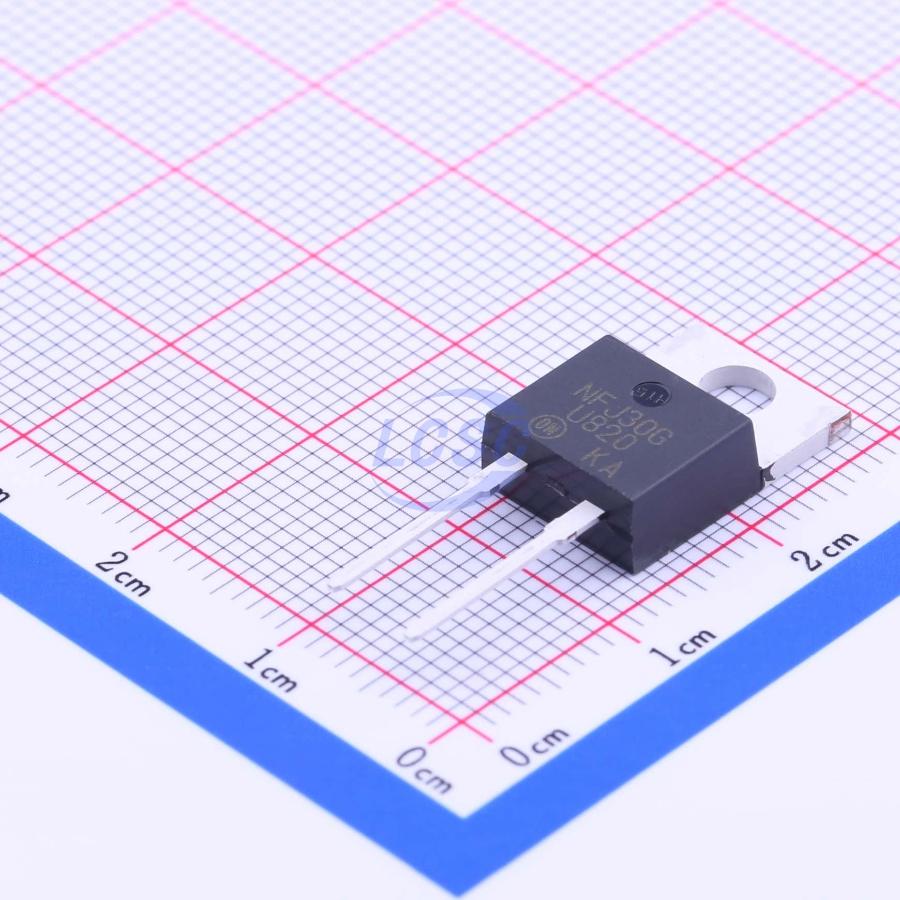

MUR820G
Diode Independent 200V 8A Through Hole TO-220AC-2
TO-220AC-2ROHS3 CompliantActive
DIODE GP 200V 8A TO-220AC-2
- Manufacturer
- onsemi
- Manufacturer part #
- MUR820G
- Store part #
- C90996
- Package / case
- TO-220AC-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
927 in stock
#C90996
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹103.01 | ₹103.01 |
| 10+ | ₹82.33 | ₹823.30 |
| 50+ | ₹71.88 | ₹3,594.00 |
| 100+ | ₹61.64 | ₹6,164.00 |
| 500+ | ₹55.54 | ₹27,770.00 |
| 1,000+ | ₹52.27 | ₹52,270.00 |
1 × ₹103.01
₹103.01
excl. GST
₹121.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MUR820G
₹103.01 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 35ns
- Operating Junction Temperature Range
- -65℃~+175℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 975mV@8A
- Reverse Leakage Current (Ir)
- 5uA
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.16 g
Overview
This series is designed for use in switching power supplies, inverters and as free wheeling diodes.
Applications
- switching power supplies
- inverters
- free wheeling diodes
Key features
- Ultrafast 25 and 50 Nanosecond Recovery Time
- 175℃ Operating Junction Temperature
- Epoxy Meets UL 94 V-0 @ 0.125 in
- Low Forward Voltage
- Low Leakage Current
- Reverse Voltage to 600 V
- ESD Ratings: Machine Model Ω = C(>400 V), Human Body Model = 3B(>16,000 V)
- SUR8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BYW29-200-E3/45#C17614267VISHAY · TO-220AC | VISHAY | TO-220AC | 38 | ₹206.65 · 38 in stock | View |
 | IDV15E65D2#C535934Infineon · TO-220-2 | Infineon | TO-220-2 | 115 | ₹153.40 · 115 in stock | View |
 | IDP08E65D2#C535907Infineon · TO-220-2 | Infineon | TO-220-2 | 239 | ₹174.27 · 239 in stock | View |
 | IDP08E65D1#C535906Infineon · TO-220AC | Infineon | TO-220AC | 289 | ₹181.08 · 289 in stock | View |
 | IDV30E65D2#C535936Infineon · TO-220AC | Infineon | TO-220AC | 103 | ₹202.96 · 103 in stock | View |
