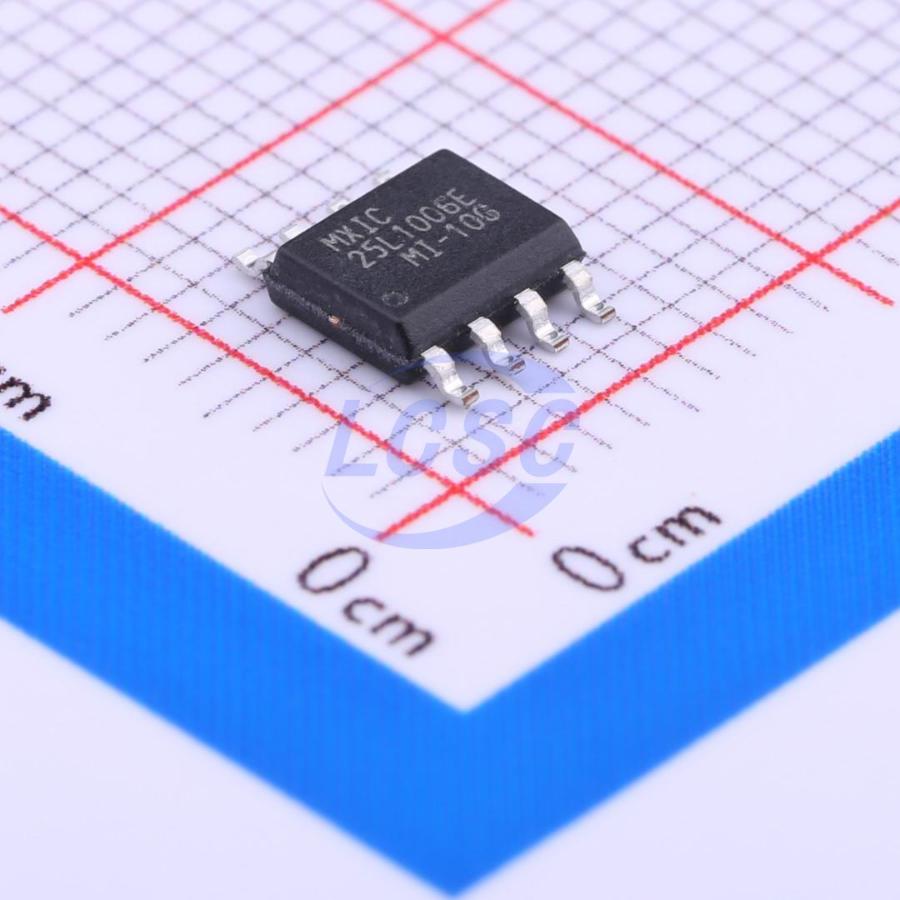

MX25L1006EMI-10G

MX25L1006E is a CMOS 1,048,576 bit serial Flash memory, which is configured as 131,072 × 8 internally.

Key features

• Serial Peripheral Interface compatible -- Mode 0 and Mode 3
• 1,048,576 x 1 bit structure or 524,288 x 2 bits (Dual Output mode) Structure
• 32 Equal Sectors with 4K byte each - Any Sector can be erased individually
• 2 Equal Blocks with 64K byte each - Any Block can be erased individually
• Single Power Supply Operation - 2.7 to 3.6 V for read, erase, and program operations
• Latch-up protected to 100 mA from -1 V to Vcc + 1 V
• High Performance - Fast access time: 104 MHz serial clock - Serial clock of Dual Output mode: 80 MHz - Fast program time: 0.6 ms (typ.) and 3 ms (max.)/page (256-byte per page) - Byte program time: 9 μs (typ.) - Fast erase time: 40 ms (typ.)/sector (4K-byte per sector) ; 0.8 s (typ.) and 2 s (max.)/chip
• Low Power Consumption - Low active read current: 12 mA (max.) at 104 MHz and 4 mA (max.) at 33 MHz - Low active programming current: 15 mA (typ.) - Low active sector erase current: 9 mA (typ.) - Low standby current: 15 μA (typ.) - Deep power-down mode 2 μA (typ.)
• Minimum 100,000 erase/program cycles
• 20 years data retention
• Input Data Format - 1-byte Command code
• Block Lock protection - The BP0~BP1 status bit defines the size of the area to be software protected against Program and Erase instructions.
• Auto Erase and Auto Program Algorithm - Automatically erases and verifies data at selected sector - Automatically programs and verifies data at selected page by an internal algorithm that automatically times the program pulse widths (Any page to be programed should have page in the erased state first)
• Status Register Feature
• Electronic Identification - JEDEC 2-byte Device ID - RES command, 1-byte Device ID
• Support Serial Flash Discoverable Parameters (SFDP) mode
• SCLK Input - Serial clock input
• SI/SIO0 - Serial Data Input or Serial Data Output for Dual output mode
• SO/SIO1 - Serial Data Output or Serial Data Output for Dual output mode
• WP# pin - Hardware write protection
• HOLD# pin - pause the chip without diselecting the chip
• PACKAGE - 8-pin SOP (150 mil) - 8-USON (2x3 mm) - 8-ball WLCSP - All devices are RoHS Compliant and Halogen-free
