MXIC

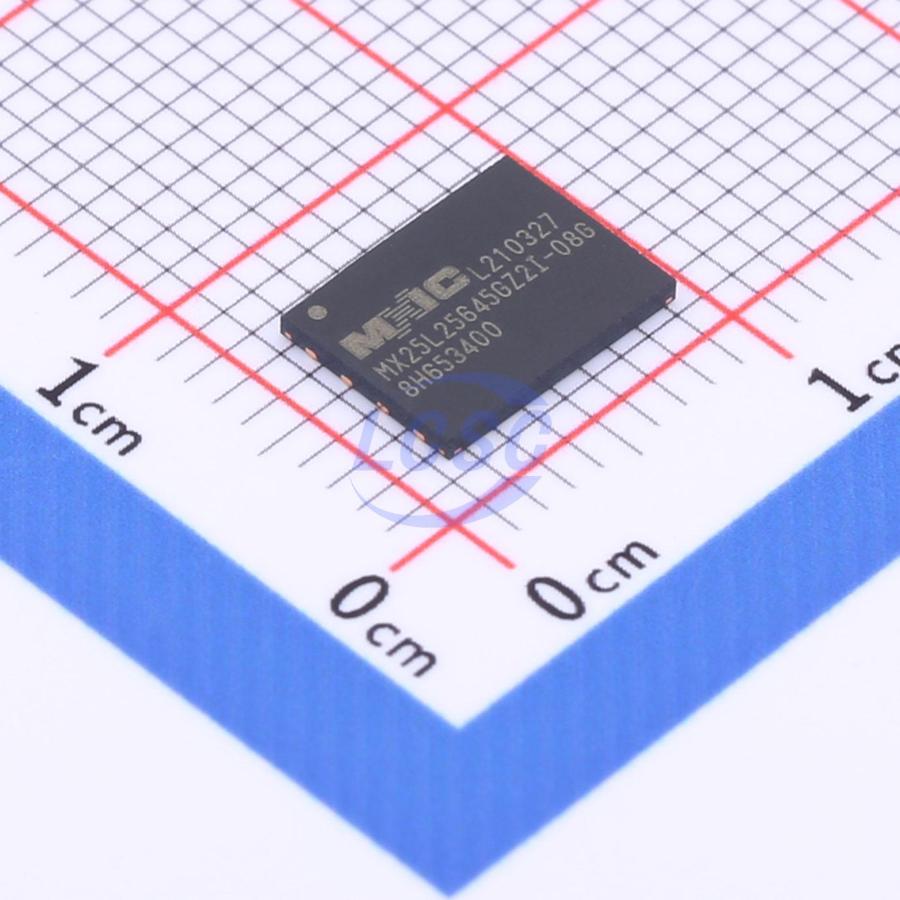

MX25L25645GZ2I-08G
FLASH - NOR Memory IC 256Mbit SPI 133MHz WSON-8-EP(6x8)
WSON-8-EP(6x8)RoHSActive
CMOS Serial Multi I/O Flash Memory
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,872 in stock
#C2802978
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹956.40 | ₹956.40 |
| 10+ | ₹843.23 | ₹8,432.30 |
| 30+ | ₹776.11 | ₹23,283.30 |
| 100+ | ₹708.12 | ₹70,812.00 |
| 500+ | ₹676.83 | ₹3,38,415.00 |
| 1,000+ | ₹662.51 | ₹6,62,510.00 |
1 × ₹956.40
₹956.40
excl. GST
₹1,128.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MX25L25645GZ2I-08G
₹956.40 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 256Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 120MHz
- Data Retention - TDR (Year)
- 20 Years
- Standby Supply Current
- 150uA
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- 3A991B1A
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
Key features
- Supports Serial Peripheral Interface -- Mode 0 and Mode 3
- Single Power Supply Operation - 2.7 to 3.6 volts for read, erase, and program operations
- 268,435,456×1 bit structure or 134,217,728×2 bits (two I/O mode) structure or 67,108,864×4 bits (four I/O mode) structure
- Protocol Support - Single I/O, Dual I/O and Quad I/O
- Latch-up protected to 100mA from -1V to Vcc + 1V
- Low Vcc write inhibit is from 1.5V to 2.5V
- Fast read for SPI mode - Supports clock frequencies up to 133MHz for all protocols - Supports Fast Read, 2READ, DREAD, 4READ, QREAD instructions - Supports DTR (Double Transfer Rate) Mode - Configurable dummy cycle number for fast read operation
- Supports Performance Enhance Mode - XIP (execute-in-place)
- Quad Peripheral Interface (QPI) available
- Equal 4K byte sectors, or Equal Blocks with 32K bytes or 64K bytes each - Any Block can be erased individually
- Programming: - 256byte page buffer - Quad Input/Output page program(4PP) to enhance program performance
- Typical 100,000 erase/program cycles
- 20 years data retention
- Input Data Format: 1-byte Command code
- Advanced Security Features: Block lock protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XT25F256BWSIGT#C2759959XTX · WSON-8-EP(6x8) | XTX | WSON-8-EP(6x8) | 163 | ₹809.44 · 163 in stock | View |
 | MX25L25645GZ2I-10G#C2802980MXIC · WSON-8-EP(6x8) | MXIC | WSON-8-EP(6x8) | 375 | ₹999.74 · 375 in stock | View |
 | MT25QL256ABA1EW9-0SIT#C2061007micron · WPDFN-8(6x8) | micron | WPDFN-8(6x8) | 99 | ₹2,910.79 · 99 in stock | View |
 | W25Q256JVEIQ#C2682312Winbond · WSON-8-EP(6x8) | Winbond | WSON-8-EP(6x8) | On request | ₹676.69 · 0 in stock | View |
 | GD25Q256EYIGR#C2927043GigaDevice Semicon Beijing · WSON-8-EP(6x8) | GigaDevice Semicon Beijing | WSON-8-EP(6x8) | 6,000 | ₹747.64 · 6,000 in stock | View |
