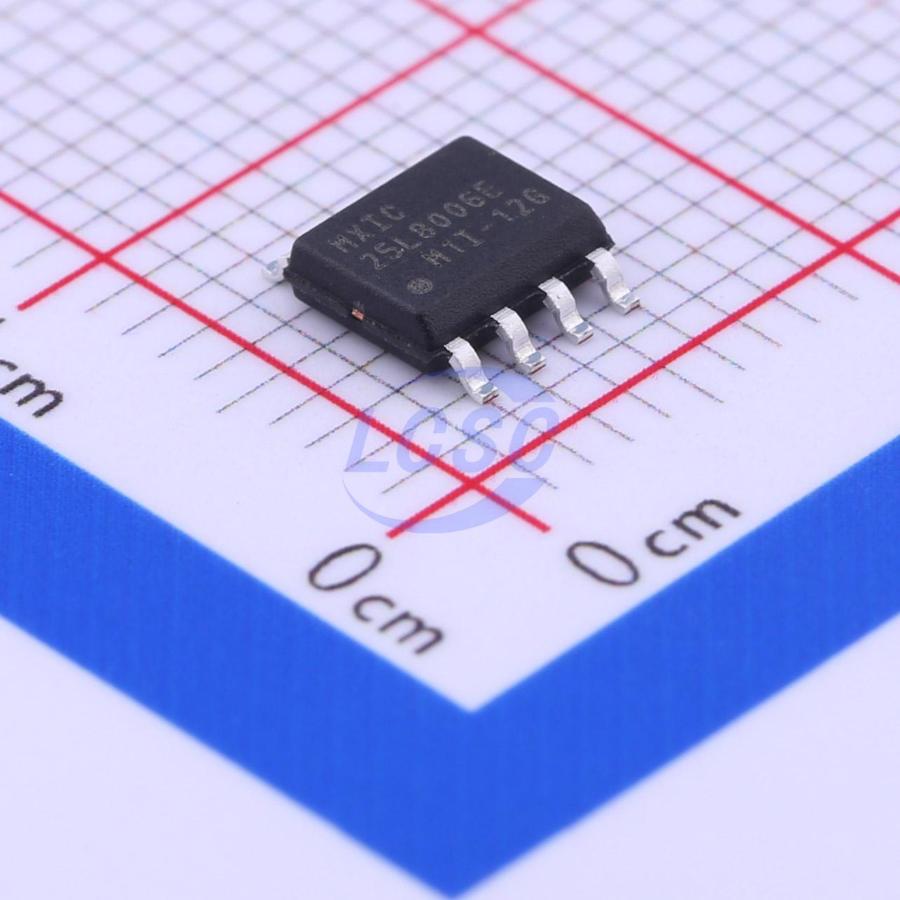

MX25L8006EM1I-12G

FLASH - NOR Memory IC 8Mbit SPI 86MHz SOP-8

SOP-8RoHSActive

8M-BIT CMOSSERIALFLASHMEMORY

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,969 in stock

#C106262

Stock & price checked 5 days ago

Quantity (min 1)

1 × ₹200.65

₹200.65

excl. GST

₹236.77 incl. 18% GST

MX25L8006EM1I-12G

₹200.65 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
Memory Size: 8Mbit
Voltage - Supply: 2.7V~3.6V
Program / Erase Cycles: 100,000 cycles
Clock Frequency: 86MHz
Data Retention - TDR (Year): 20 Years
Block Erase Time(tBE): 400ms@(64KB)
Page Programming Time (Tpp): 3ms
Standby Supply Current: 15uA
Interface: SPI

Hold Feature
Low Power Consumption
Auto Erase and Auto Program Algorithms
Additional 512 bit secured OTP for unique identifier
Single Power Supply Operation - 2.7 to 3.6 volt for read, erase, and program operations
Supports Serial Peripheral Interface -- Mode 0 and Mode 3
8,388,608 x 1 bit structure or 4,194,304 x 2 bits (Dual Output mode) structure
256 Equal Sectors with 4K byte each
Any Sector can be erased individually
16 Equal Blocks with 64K byte each
Any Block can be erased individually
Program Capability - Byte base
Page base (256 bytes)
Latch-up protected to 100mA from -1V to Vcc +1V
High Performance - Fast access time: 86MHz serial clock
Serial clock of Dual Output mode : 80MHz
Fast program time: 0.6ms(typ.) and 3ms(max.)/page
Byte program time: 9us (typical)
Fast erase time: 40ms(typ.) /sector ; 0.4s(typ.) /block
Low Power Consumption - Low active read current: 12mA(max.) at 86MHz
Low active programming current: 15mA (typ.)
Low active Sector/Block erase current: 9mA (typ.)
Low standby current: 15uA (typ.)
Deep power-down mode 2uA (typ.)
Typical 100,000 erase/program cycles
20 years of data retention
Input Data Format - 1-byte Command code
Advanced Security Features - Block lock protection The BP2-BP0 status bit defines the size of the area to be software protection against program and erase instructions
Auto Erase and Auto Program Algorithm - Automatically erases and verifies d
