MXIC

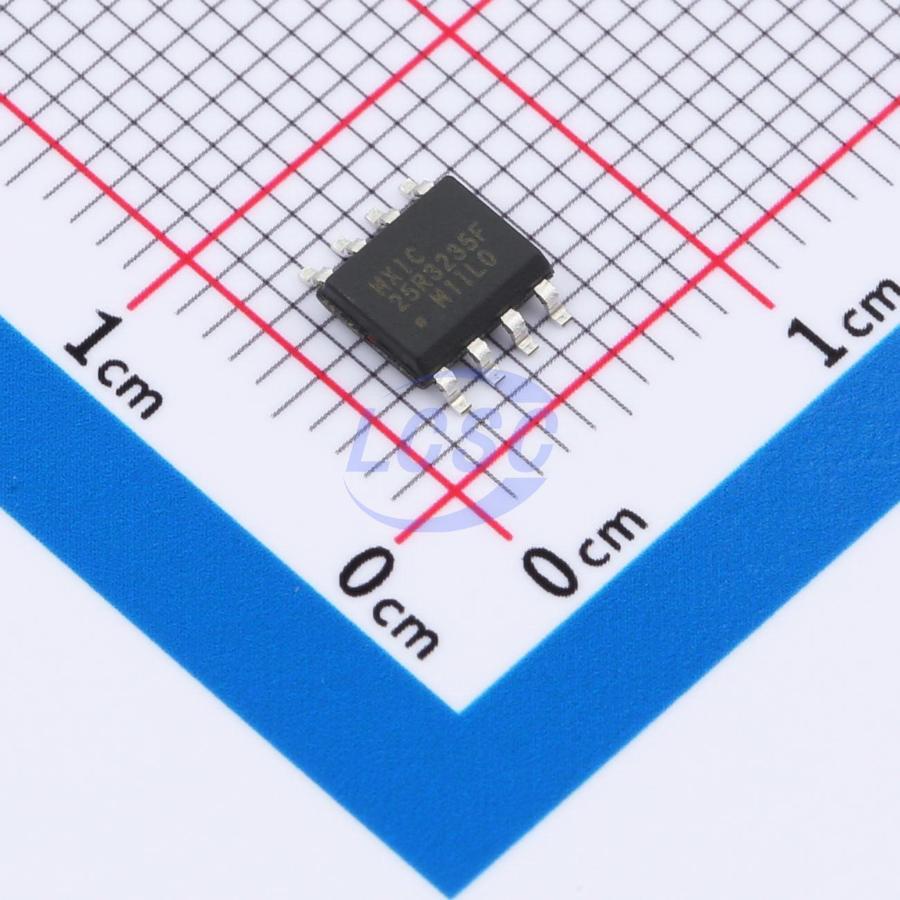

MX25R3235FM1IL0
FLASH - NOR Memory IC 32Mbit SPI 80MHz SOP-8
SOP-8RoHSActive
32M-BIT[x1/x2/x4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,427 in stock
#C2802824
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹214.17 | ₹214.17 |
| 10+ | ₹194.52 | ₹1,945.20 |
| 30+ | ₹183.51 | ₹5,505.30 |
| 100+ | ₹171.42 | ₹17,142.00 |
| 500+ | ₹166.02 | ₹83,010.00 |
| 1,000+ | ₹163.43 | ₹1,63,430.00 |
1 × ₹214.17
₹214.17
excl. GST
₹252.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MX25R3235FM1IL0
₹214.17 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 32Mbit
- Voltage - Supply
- 1.65V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 80MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 3.2ms
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- 3A991B1A
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
Key features
- Ultra Low Power Mode and High Performance Mode
- Wide Range VCC 1.65V - 3.6V for Read, Erase and Program Operations
- Unique ID and Secure OTP Support
- Multi I/O Support - Single I/O, Dual I/O and Quad I/O
- Program Suspend/Resume & Erase Suspend/Resume
- Supports Serial Peripheral Interface -- Mode 0 and Mode 3
- 33,554,432 x 1 bit structure or 16,777,216 x 2 bits (two I/O mode) structure or 8,388,608 x 4 bits (four I/O mode) structure
- Equal Sectors with 4K byte each, Equal Blocks with 32K byte each, or Equal Blocks with 64K byte each - Any Block can be erased individually
- Single Power Supply Operation - Operation Voltage: 1.65V - 3.6V for Read, Erase, and Program Operations
- Latch-up protected to 100mA from -1V to Vcc +1V
- High Performance
- Fast read - 1 I/O: 80MHz with 8 dummy cycles - 2 I/O: 80MHz with 4 dummy cycles, equivalent to 160MHz - 4 I/O: 80MHz with 2+4 dummy cycles, equivalent to 320MHz
- Fast program and erase time
- 8/16/32/64 byte Wrap-Around Burst Read Mode
- Support Performance Enhance Mode - XIP (execute-in-place)
- Ultra Low Power Consumption
- Minimum 100,000 erase/program cycles
- 20 years data retention
- Input Data Format - 1-byte Command code
- Advanced Security Features - Block lock protection The BP0 - BP3 status bit defines the size of the area to be software protection against program and erase instructions
- Additional 8K bits secured OTP - Features unique identifier. - Factory locked identifiable and customer lockable
- Auto Erase and Auto Program Algorithm - Automatically erases and verifies data at selected sector or block - Automatically programs and verifies data at selected page by an internal algorithm that automatically times the program pulse widths (Any page to be programed should have page in the erased state first)
- Status Register Feature
- Command Reset
- Program/Erase Suspend and Program/Erase Resume
- Electronic Identification - JEDEC 1-byte manufacturer ID and 2-byte device ID - RES command for 1-byte Device ID - REMS command for 1-byte manufacturer ID and 1-byte device ID
- Support Serial Flash Discoverable Parameters (SFDP) mode
- Support Unique ID
- SCLK Input - Serial clock input
- SI/SIO0 - Serial Data Input or Serial Data Inp
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FM25W32AI3-SO-T-G3#C42431558FUDAN MICRO · SOP-8-150mil | FUDAN MICRO | SOP-8-150mil | On request | Price on request | Quote |
 | MX25R3235FM1IH0#C112199MXIC · SOIC-8 | MXIC | SOIC-8 | On request | Price on request | Quote |
| MX25R3235FM1IH0TR#C2802823MXIC · SOP-8 | MXIC | SOP-8 | On request | Price on request | Quote | |
| MX25R3235FM1IL0TR#C2802825MXIC · SOP-8 | MXIC | SOP-8 | On request | Price on request | Quote | |
| MX25R3235FM2IL0TR#C2802829MXIC · SOP-8 | MXIC | SOP-8 | On request | Price on request | Quote | |
