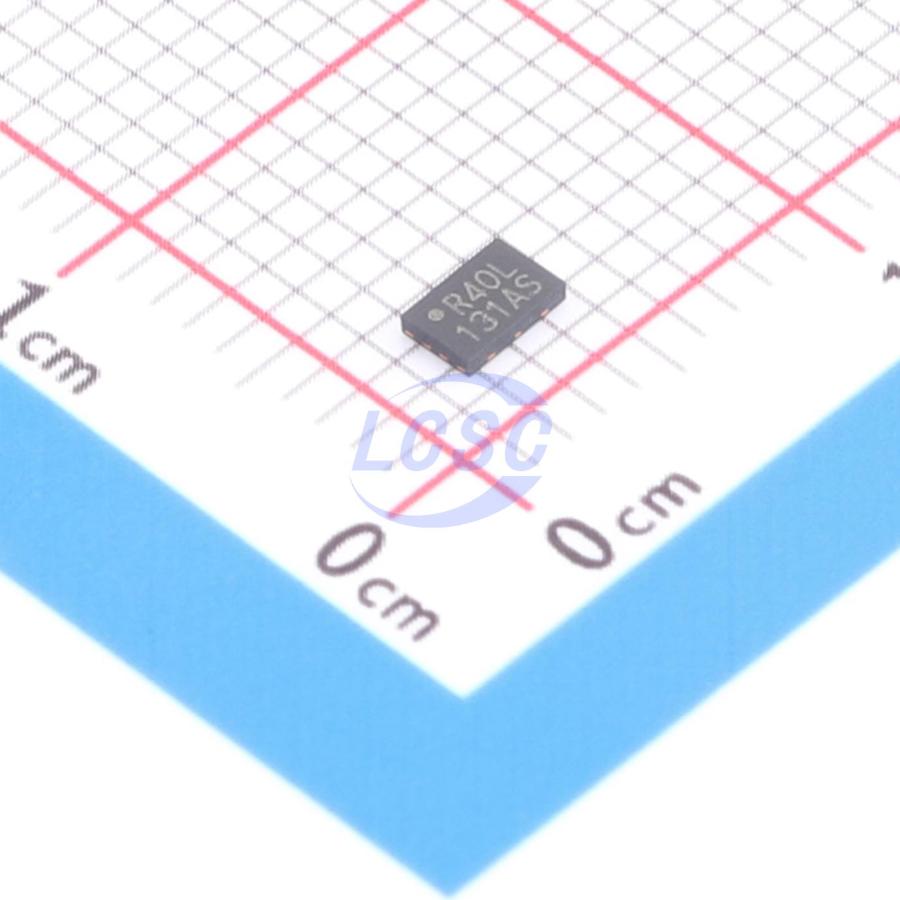

MXIC

MX25R4035FZUIL0TR

FLASH - NOR Memory IC 4Mbit SPI 108MHz USON-8(2x3)

USON-8(2x3)ROHS CompliantSold out at source

Manufacturer: MXIC
Manufacturer part #: MX25R4035FZUIL0TR
Store part #: C2802838
Package / case: USON-8(2x3)
Category: Memory
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,956 in stock

#C2802838

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹129.76	₹129.76
10+	₹127.59	₹1,275.90
30+	₹126.08	₹3,782.40
100+	₹124.79	₹12,479.00

Quantity (min 1)

1 × ₹129.76

₹129.76

excl. GST

₹153.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 12,000 per reel

MX25R4035FZUIL0TR

₹129.76 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
Memory Size: 4Mbit
Voltage - Supply: 1.65V~3.6V
Program / Erase Cycles: 100,000 cycles
Clock Frequency: 108MHz
Data Retention - TDR (Year): 20 Years
Page Programming Time (Tpp): 3.2ms
Standby Supply Current: 10uA
Interface: SPI

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Sold out at source
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 12,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.128 g

Overview

Applications

Portable electronic devices
Data storage and exchange systems
Devices requiring data security protection
Embedded systems
Industrial control and measurement equipment

Key features

Ultra Low Power Mode and High Performance Mode
Wide Range VCC 1.65V - 3.6V for Read, Erase and Program Operations
Unique ID and Secure OTP Support
Multi I/O Support - Single I/O, Dual I/O and Quad I/O
Program Suspend/Resume & Erase Suspend/Resume
Supports Serial Peripheral Interface -- Mode 0 and Mode 3
4,194,304×1 bit structure or 2,097,152×2 bits (two I/O mode) structure or 1048,576×4 bits (four I/O mode) structure
Equal Sectors with 4K byte each, or Equal Blocks with 32K/64K byte each - Any Block can be erased individually
Single Power Supply Operation - Operation Voltage: 1.65V - 3.6V for Read, Erase and Program Operations
Latch-up protected to 100mA from -1V to Vcc +1V
High Performance - Fast read - 1 I/O: 108MHz with 8 dummy cycles - 2 I/O: 104MHz with 4 dummy cycles, equivalent to 208MHz - 4 I/O: 104MHz with 2+4 dummy cycles, equivalent to 416MHz - Fast program and erase time - 8/16/32/64 byte Wrap-Around Burst Read Mode
Ultra Low Power Consumption
Minimum 100,000 erase/program cycles
20 years data retention
Input Data Format - 1-byte Command code
Advanced Security Features - Block lock protection The BP0 - BP3 status bit defines the size of the area to be software protection against program and erase instructions
Additional 8K bits secured OTP - Features unique identifier. - Factory locked identifiable and customer lockable
Auto Erase and Auto Program Algorithm - Automatically erases and verifies data at selected sector or block - Automatically programs and verifies data at selected page by an internal algorithm that automatically times the program pulse widths (Any page to be programed should have page in the erased state first)
Status Register Feature
Command Reset
Program/Erase Suspend and Program/Erase Resume
Electronic Identification - JEDEC 1-byte manufacturer ID and 2-byte device ID - RES command for 1-byte Device ID - REMS command for 1-byte manufacturer ID and 1-byte device ID
Support Serial Flash Discoverable Parameters (SFDP) mode
Support Unique ID
SCLK Input - Serial clock input
SI/SIO0 - Serial Data Input or Serial Data Input/Output for 2×I/O read mode and 4×I/O read mode
SO/SIO1 - Serial Data Output or Serial Data Input/Output for 2×I/O read mode and 4×I/O read mode
WP#/SIO2 - Hardware write protection or serial data Input/Output for 4×I/O read mode
RESET#/SIO3 * or HOLD#/SIO3 * - Hardware Reset pin or Serial input & Output for 4×I/O read mode or - HOLD feature, to pause the device without deselecting the device or Serial in
