MXIC

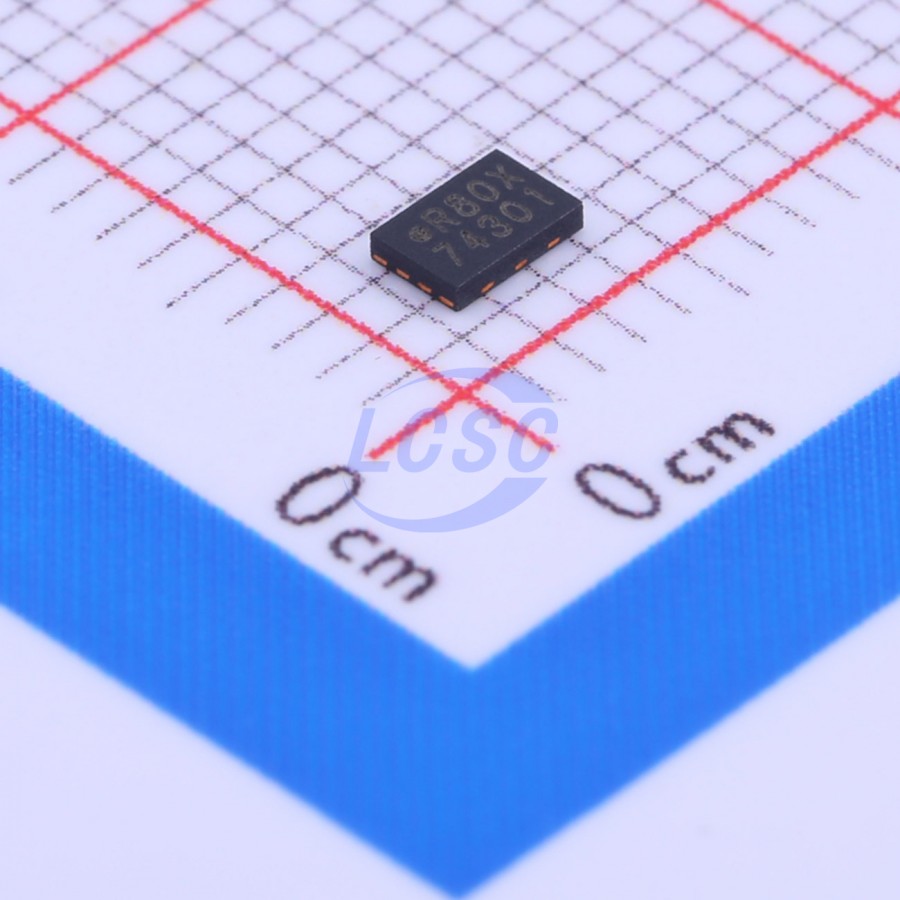

MX25R8035FZUIL0
8Mbit 1.65V~3.6V 33MHz SPI USON-8-EP(2x3) Memory RoHS
USON-8-EP(2x3)ROHS CompliantActive
Ultra Low Power, 8M-BIT CMOS MXSMIO (Serial Multi I/O) Flash Memory
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34,910 in stock
#C152596
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹195.13 | ₹1,951.30 |
| 100+ | ₹164.42 | ₹16,442.00 |
| 300+ | ₹134.97 | ₹40,491.00 |
| 1,000+ | ₹115.27 | ₹1,15,270.00 |
| 5,000+ | ₹106.24 | ₹5,31,200.00 |
| 12,000+ | ₹102.44 | ₹12,29,280.00 |
10 × ₹195.13
₹1,951.30
excl. GST
₹2,302.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
MX25R8035FZUIL0
₹1,951.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 8Mbit
- Voltage - Supply
- 1.65V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 33MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 3.2ms
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.3 g
Overview
Ultra Low Power, 8M-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY
Key features
- Ultra Low Power Mode and High Performance Mode
- Wide Range VCC 1.65V - 3.6V for Read, Erase and Program Operations
- Unique ID and Secure OTP Support
- Multi I/O Support - Single I/O, Dual I/O and Quad I/O
- Program Suspend/Resume & Erase Suspend/Resume
- Supports Serial Peripheral Interface -- Mode 0 and Mode 3
- 8,388,608 x 1 bit structure or 4,194,304 x 2 bits (two I/O mode) structure or 2,097,152 x 4 bits (four I/O mode) structure
- Equal Sectors with 4K byte each, or Equal Blocks with 32K/64K byte each - Any Block can be erased individually
- Single Power Supply Operation - Operation Voltage: 1.65V - 3.6V for Read, Erase and Program Operations
- Latch-up protected to 100mA from -1V to Vcc +1V
- High Performance - Fast read - 1 I/O: 108MHz with 8 dummy cycles - 2 I/O: 104MHz with 4 dummy cycles, equivalent to 208MHz - 4 I/O: 104MHz with 2+4 dummy cycles, equivalent to 416MHz - Fast program and erase time - 8/16/32/64 byte Wrap-Around Burst Read Mode
- Ultra Low Power Consumption
- Minimum 100,000 erase/program cycles
- 20 years data retention
- Input Data Format - 1-byte Command code
- Advanced Security Features - Block lock protection The BP0 - BP3 status bit defines the size of the area to be software protection against program and erase instructions
- Additional 8K bits secured OTP - Features unique identifier. - Factory locked identifiable and customer lockable
- Auto Erase and Auto Program Algorithm - Automatically erases and verifies data at selected sector or block - Automatically programs and verifies data at selected page by an internal algorithm that automatically times the program pulse widths (Any page to be programed should have page in the erased state first)
- Status Register Feature
- Command Reset
- Program/Erase Suspend and Program/Erase Resume
- Electronic Identification - JEDEC 1-byte manufacturer ID and 2-byte device ID - RES command for 1-byte Device ID - REMS command for 1-byte manufacturer ID and 1-byte device ID
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BY25Q80AWUIG(R)#C50176332BOYAMICRO · USON-8(2x3) | BOYAMICRO | USON-8(2x3) | 90 | ₹25.31 · 90 in stock | View | |
 | AT25EU0081A-MAUN-T#C24382234RENESAS · UDFN-8(2x3) | RENESAS | UDFN-8(2x3) | 37 | ₹84.37 · 37 in stock | View |
 | ZD25WQ80CEIGR#C16197313Zetta · USON-8(2x3) | Zetta | USON-8(2x3) | On request | Price on request | Quote |
 | MX25R8035FZUIH1#C152591MXIC · USON-8-EP(2x3) | MXIC | USON-8-EP(2x3) | On request | Price on request | Quote |
| MX25R8035FZUIH1TR#C2802858MXIC · USON-8(3x2) | MXIC | USON-8(3x2) | On request | Price on request | Quote | |
