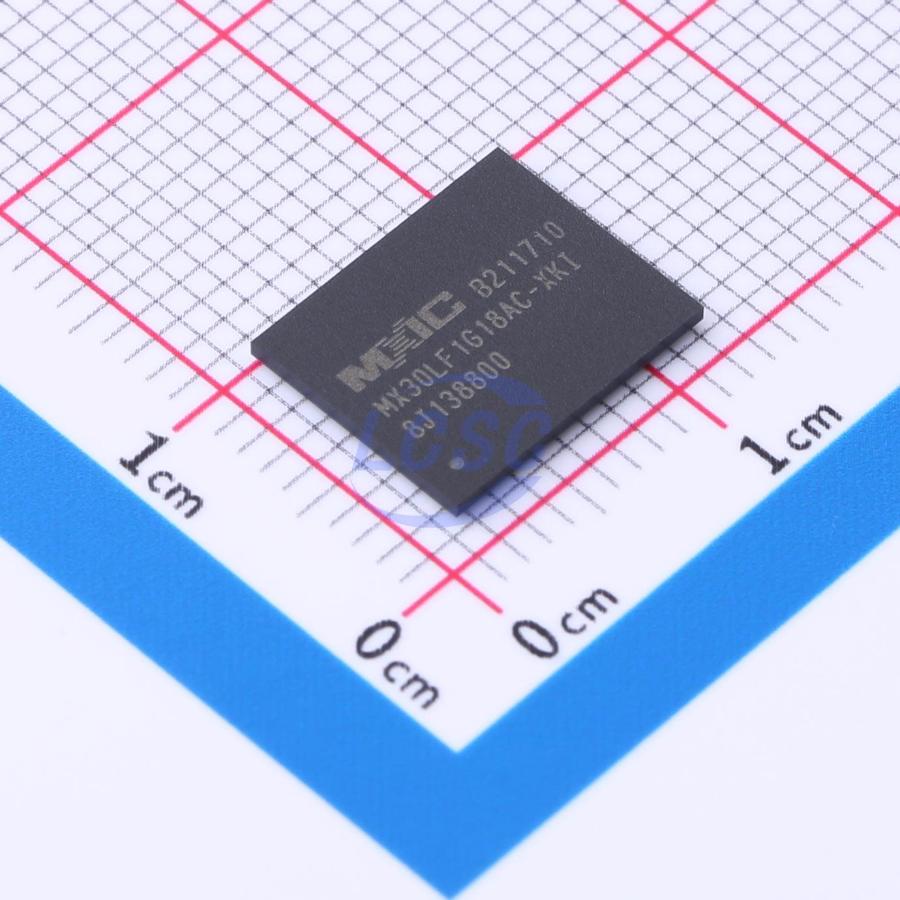

MX30LF1G18AC-XKI

1Gbit 2.7V~3.6V Parallel VFBGA-63 Memory

VFBGA-63RoHSActive

1G-bit NAND Flash Memory

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,045 in stock

#C2802753

Stock & price checked 5 days ago

Quantity (min 1)

1 × ₹1,126.49

₹1,126.49

excl. GST

₹1,329.26 incl. 18% GST

MX30LF1G18AC-XKI

₹1,126.49 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Read buffer function;Software reset function;Bad block management function;ECC error correction function;OTP region write protection and lock function;Hardware write protection function
Memory Size: 1Gbit
Voltage - Supply: 2.7V~3.6V
Program / Erase Cycles: 100,000 cycles
Data Retention - TDR (Year): 10 years
Block Erase Time(tBE): 1ms
Page Programming Time (Tpp): 20ns
Interface: Parallel
Standby Supply Current: 50uA

1G-bit SLC NAND Flash
Bus: x8
Page size: (2048 + 64) byte
Block size: (128K + 4K) byte
ONFI 1.0 compliant
Multiplexed Command/Address/Data
User Redundancy: 64-byte attached to each page
Fast Read Access
Latency of array to register: 25us
Sequential read: 20ns
Cache Read Support
Page Program Operation
Page program time: 300us (typ.)
Cache Program Support
Block Erase Operation
Block erase time: 1ms (typ.)
Single Voltage Operation: VCC: 2.7 - 3.6V
Low Power Dissipation
Max. 30mA Active current (Read/Program/Erase)
Sleep Mode: 50uA (Max) standby current
Hardware Data Protection: WP# pin
Block Protection: PT (Protection) pin: active high at power-on, which protects the entire chip. The pin has an internal weak pull down.
Temporary protection/un-protection function (enabling by PT pin)
Solid protection (enabling by PT pin)
Device Status Indicators: Ready/Busy
