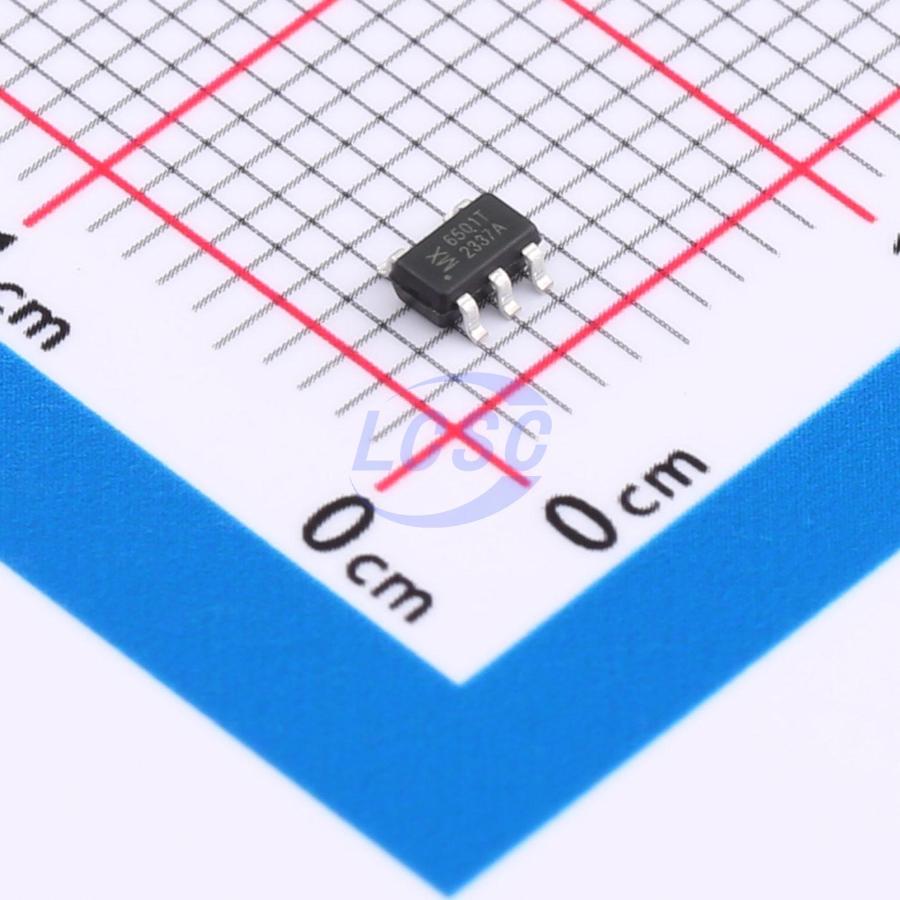

Wuxi Maxinmicro

MX6501T

SOT-23-5L Power Management - Specialized RoHS

SOT-23-5LROHS CompliantActive

Push-Pull Transformer Driver for Isolated Power Supplies

Manufacturer: Wuxi Maxinmicro
Manufacturer part #: MX6501T
Store part #: C19078227
Package / case: SOT-23-5L
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,295 in stock

#C19078227

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹24.87	₹124.35
50+	₹19.50	₹975.00
150+	₹17.20	₹2,580.00
500+	₹14.33	₹7,165.00
3,000+	₹13.04	₹39,120.00
6,000+	₹12.28	₹73,680.00

Quantity (min 5, multiples of 5)

5 × ₹24.87

₹124.35

excl. GST

₹146.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MX6501T

₹124.35 for 5 + GST

Specifications

Features: Under-voltage lockout
Operating Temperature: -40℃~+125℃
Current - Continuous Drain(Id): 1A
RDS(on): 300mΩ;350mΩ
Drain to Source Voltage: 30V
Quiescent Current: 1mA
Voltage - Supply: 3.3V~5V;2.25V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

The MX6501T is a monolithic oscillator or power-driver, specifically designed for small form factor, isolated power supplies in isolated interface applications. The device drives a low profile, center tapped transformer primary from 3.3V to 5V DC power supply. The secondary can be wound to provide any isolated voltage based on transformer turns ratio. The MX6501T consists of an oscillator followed by a gate drive circuit that provides the complementary output signals to drive the ground referenced N-channel power switches. The internal logic ensures break before make action between the two switches. The MX6501T is available in a small SOT23 package, and is specified for operation at temperatures from -40 °C to 125 °C.
