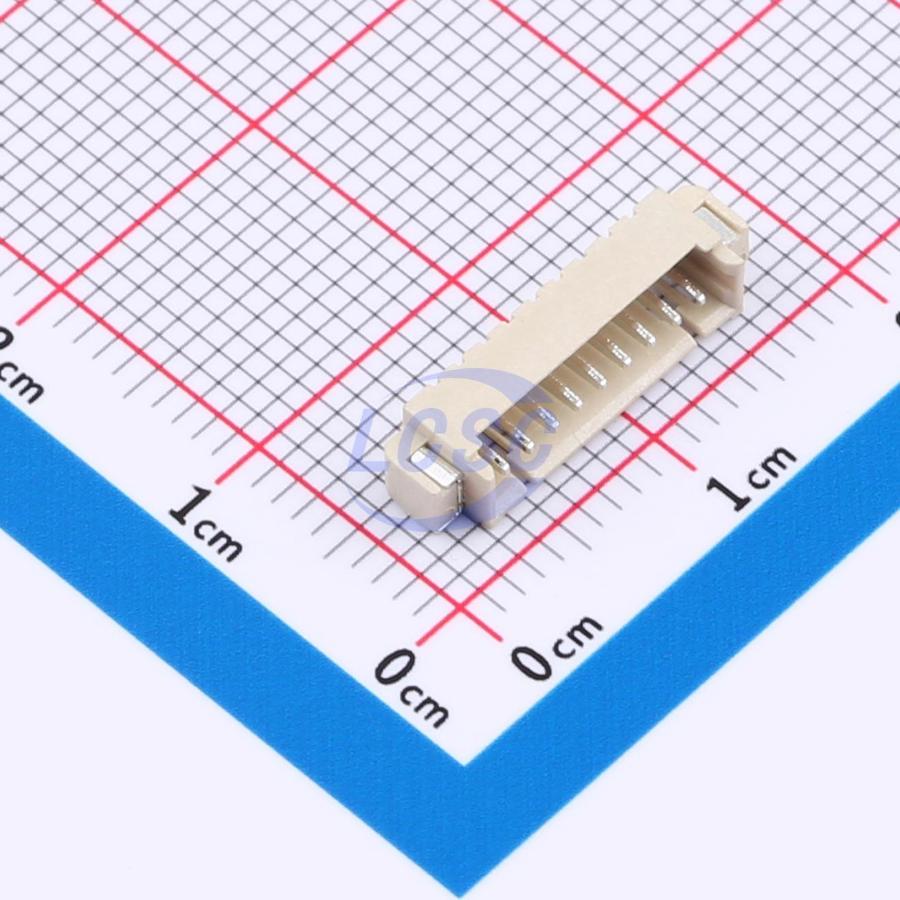

MXMS-1.25-09P-WT1-0-A MAX
MAX

MXMS-1.25-09P-WT1-0-A

Connector Header 9 position 1.25mm Pitch Surface Mount, Right Angle -25℃~+85℃

SMD,P=1.25mm,Surface Mount,Right AngleRoHSActive

CONN HEADER SMD R/A 9POS 1.25mm

Manufacturer
MAX
Manufacturer part #
MXMS-1.25-09P-WT1-0-A
Store part #
C19185673
Package / case
SMD,P=1.25mm,Surface Mount,Right Angle
Category
Headers, Male Pins
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,890 in stock

#C19185673

Stock & price checked 13 days ago

QuantityUnit pricePack price
10+₹7.78₹77.80
100+₹6.15₹615.00
300+₹5.33₹1,599.00
2,000+₹4.72₹9,440.00
4,000+₹4.23₹16,920.00
10,000+₹4.00₹40,000.00

10 × ₹7.78

₹77.80

excl. GST

₹91.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 2,000 per reel

MXMS-1.25-09P-WT1-0-A

₹77.80 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Connector Type
Surface Mount, Right Angle
Pitch
1.25mm
Voltage Rating (Max)
200V
Contact Material
Brass
Operating Temperature
-25℃~+85℃
Contact Plating
Tin
Number of PINs
9P
Plastic Material
LCP
Color
White
X-Length of Bottom Edge on Board (Spacing Line)
16.05mm
Number of PINs Per Row
9
Number of Rows
1
Pin Structure
1x9P

Packaging & compliance

RoHS
RoHS
Lifecycle
Active
Packaging
Tape & Reel (TR)
Standard pack
2,000 / Reel
Sold per
Piece
Minimum order
10 (multiples of 10)
Unit weight
0.405 g
