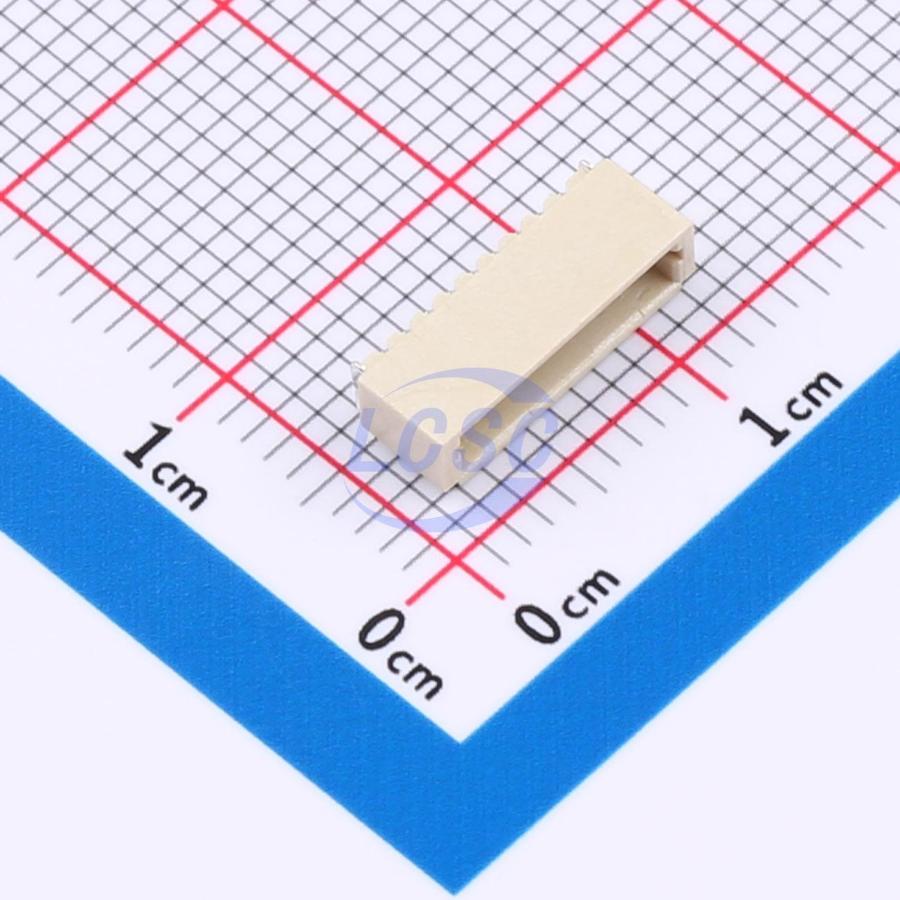

MXSH-1.0-09P-WT1-0-A
Connector Header 9 position 1mm Pitch Surface Mount, Right Angle -25℃~+85℃
SMD,P=1mm,Surface Mount,Right AngleRoHSActive
CONN HEADER SMD R/A 9POS 1mm
- Manufacturer
- MAX
- Manufacturer part #
- MXSH-1.0-09P-WT1-0-A
- Store part #
- C19185712
- Package / case
- SMD,P=1mm,Surface Mount,Right Angle
- Category
- Headers, Male Pins
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,945 in stock
#C19185712
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.58 | ₹52.90 |
| 50+ | ₹8.41 | ₹420.50 |
| 150+ | ₹7.34 | ₹1,101.00 |
| 500+ | ₹6.52 | ₹3,260.00 |
| 2,000+ | ₹5.87 | ₹11,740.00 |
| 4,000+ | ₹5.56 | ₹22,240.00 |
5 × ₹10.58
₹52.90
excl. GST
₹62.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
MXSH-1.0-09P-WT1-0-A
₹52.90 for 5 + GST
Specifications
- Connector Type
- Surface Mount, Right Angle
- Reference Series
- SH
- Voltage Rating (Max)
- 150V
- Contact Material
- Phosphor bronze
- Number of PINs Per Row
- 9
- Number of Rows
- 1
- Pitch
- 1mm
- Flame Retardant Rating
- UL94V-0
- Supplementary Features
- Auxiliary Solder Pin
- Number of PINs
- 9P
- Operating Temperature
- -25℃~+85℃
- Contact Plating
- Tin
- Plastic Material
- LCP
- X-Length of Bottom Edge on Board (Spacing Line)
- 11.3mm
- Pin Structure
- 1x9P
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.369 g
