TECH PUBLIC

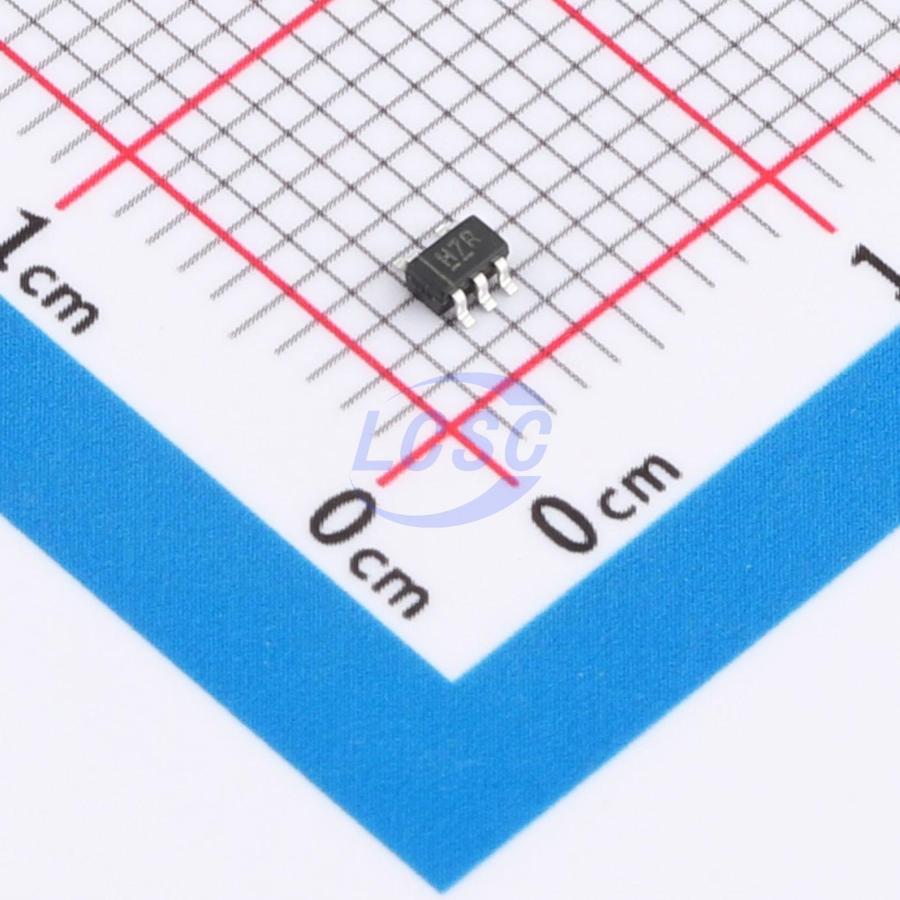

NC7SP17P5X-TP

800mV~3.6V 2 1 2.7ns@3.3V,5pF SOT-353 Flip Flops

SOT-353RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: NC7SP17P5X-TP
Store part #: C52098158
Package / case: SOT-353
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,810 in stock

#C52098158

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹5.85	₹58.50
100+	₹4.59	₹459.00
300+	₹3.97	₹1,191.00
3,000+	₹3.51	₹10,530.00
6,000+	₹3.14	₹18,840.00
9,000+	₹2.95	₹26,550.00

Quantity (min 10, multiples of 10)

10 × ₹5.85

₹58.50

excl. GST

₹69.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NC7SP17P5X-TP

₹58.50 for 10 + GST

Specifications

Voltage - Supply: 800mV~3.6V
Number of Bits per Element: 2
Output Type: Open-drain
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Current - Output Low(IOL): 4mA
Quiescent Current: 500nA
Propagation Delay: 2.7ns@3.3V,5pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

The device provides a single non-inverting buffer with open-drain output. The open-drain output structure allows connection with other open-drain outputs to implement active-low wired-OR and active-high wired-AND functions.

Applications

AV receivers
Embedded PCs
Personal digital assistants
Solid-state drives
Wireless headphones, keyboards, and mice

Key features

Wide supply voltage range: 0.8V ~ 3.6V
Input tolerant up to 3.6V
IOFF supports partial power-down mode
Low quiescent current; ICC = 0.5μA (max)
ESD protection exceeds JESD 22: HBM 2000V (A114-A), MM 200V (A115-A), CDM 1000V (C101)
