NC7ST04M5X
4.5V~5.5V 26ns@5.5V,50pF 1uA 1 SC-74A-5 Gates and Inverters RoHS
SC-74A-5ROHS3 CompliantActive

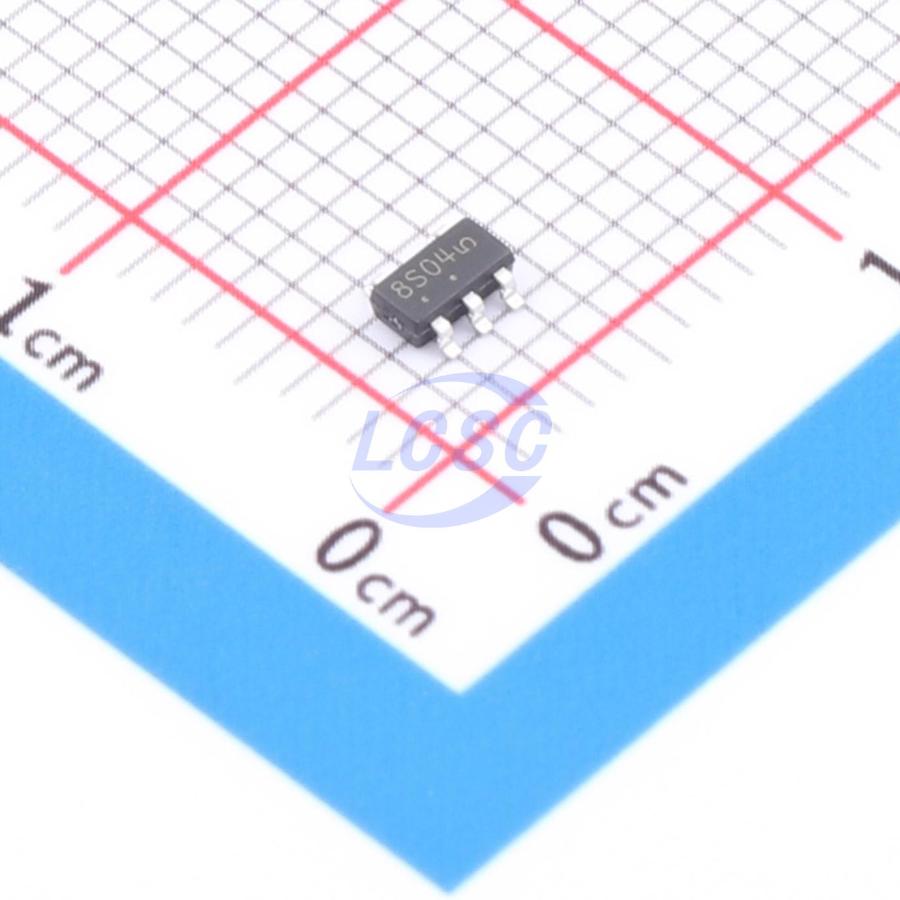

TinyLogic HS T Inverter
- Manufacturer
- onsemi
- Manufacturer part #
- NC7ST04M5X
- Store part #
- C891935
- Package / case
- SC-74A-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,270 in stock
#C891935
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.02 | ₹90.20 |
| 100+ | ₹7.12 | ₹712.00 |
| 300+ | ₹6.17 | ₹1,851.00 |
| 3,000+ | ₹5.45 | ₹16,350.00 |
| 6,000+ | ₹4.87 | ₹29,220.00 |
| 9,000+ | ₹4.59 | ₹41,310.00 |
10 × ₹9.02
₹90.20
excl. GST
₹106.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7ST04M5X
₹90.20 for 10 + GST
Specifications
- Logic Family
- 7ST
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 330mV
- Propagation Delay
- 26ns@5.5V,50pF
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Output Logic Level - High
- 4.13V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 2mA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.115 g
Overview
The NC7ST04 is a single high performance CMOS Inverter, with TTL−compatible inputs. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation. ESD protection diodes inherently guard both input and output with respect to the VCC and GND rails. High gain circuitry offers high noise immunity and reduced sensitivity to input edge rate. The TTL−compatible input facilitates TTL to NMOS/CMOS interfacing. Device performance is similar to MM74HCT but with 1/2 the output current drive of HC/HCT.
Key features
- Space Saving SC−74A and SC−88A 5−Lead Packages
- High Speed; tpD < 7 ns typ, VCC = 5 Vz, CL = 15 pF
- Low Quiescent Power; ICC < 1 μA typ, VCC = 5.5 V
- Balanced Output Drive; 2 mA IOL, -2 mA IOH
- TTL−compatible Inputs
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
