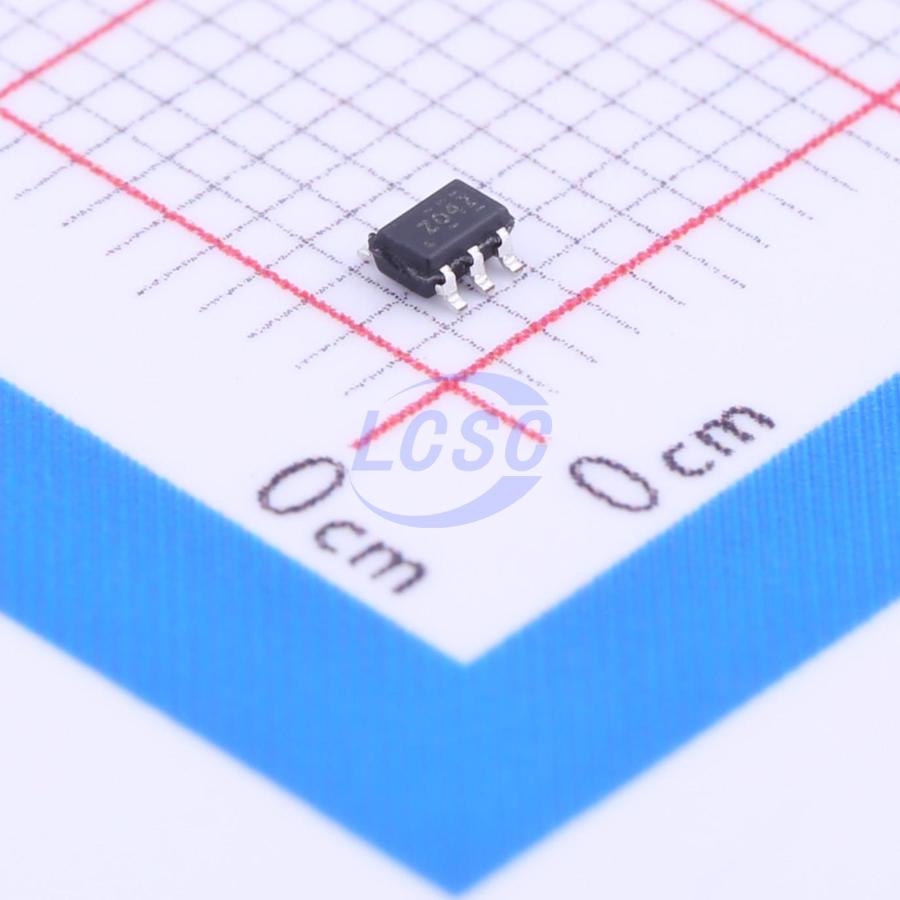

NC7SZ04P5X
₹94.30 for 10 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 7SZ
- Input Type
- StandardCMOS
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 4.3ns@5V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 2.3V;3.8V
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The NC7SZ04 is a single inverter from the UltraHigh Speed (UHS) series. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC operating range. The inputs and output are high-impedance when VCC is 0V. Inputs tolerate voltages up to 6V, independent of VCC operating voltage.
Key features
- Ultra-High Speed: tPD 2.4ns (Typical) into 50pF at 5V VCC
- High Output Drive: ±24mA at 3V VCC
- Broad VCC Operating Range: 1.65V to 5.5V
- Matches Performance of LCX when Operated at 3.3V VCC
- Power Down High Impedance Inputs/Outputs
- Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation
- Proprietary Noise/EMI Reduction Circuitry
- Ultra-Small MicroPak Packages
- Space-Saving SOT23 and SC70 Packages
