onsemiDatasheet (PDF)

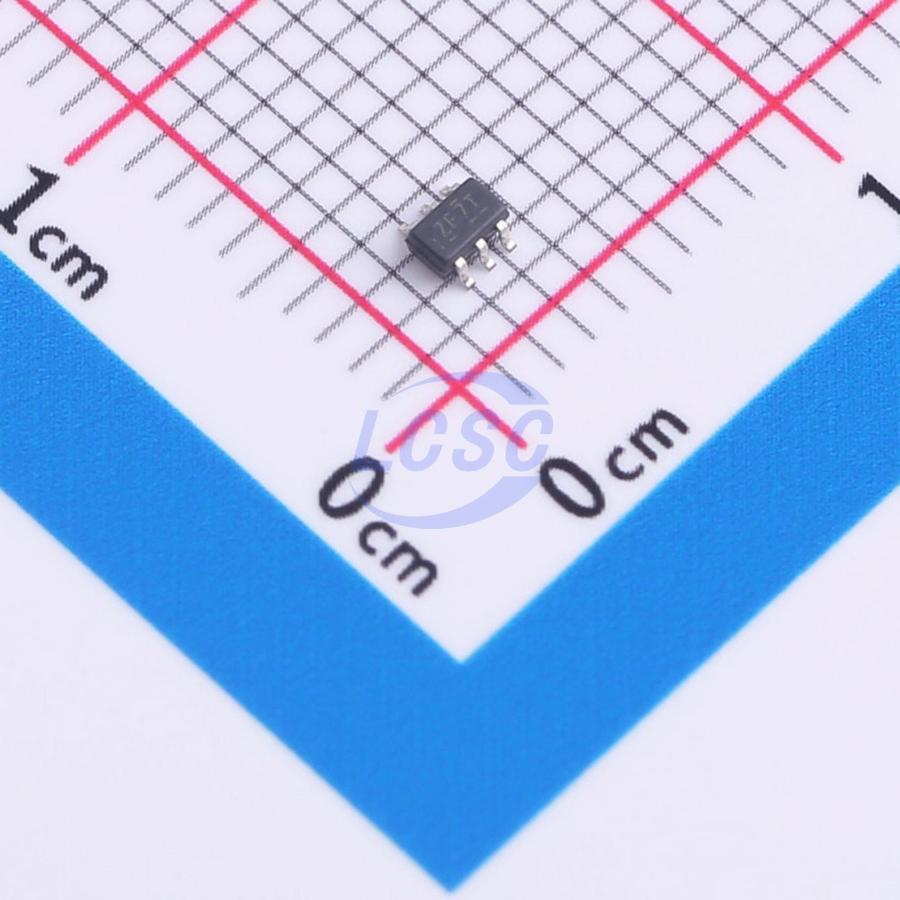

NC7SZ157P6X-L22347
2/1 1.65V~5.5V 10uA 3.5ns@5V,15pF SC-70-6 Signal Switches, Multiplexers, Decoders
SC-70-6RoHSActive
TinyLogic UHS 2-Input Non-inverting Multiplexer
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ157P6X-L22347
- Store part #
- C5208034
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,940 in stock
#C5208034
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.92 | ₹74.60 |
| 50+ | ₹11.67 | ₹583.50 |
| 150+ | ₹10.03 | ₹1,504.50 |
| 500+ | ₹8.81 | ₹4,405.00 |
| 3,000+ | ₹7.83 | ₹23,490.00 |
| 6,000+ | ₹7.34 | ₹44,040.00 |
5 × ₹14.92
₹74.60
excl. GST
₹88.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ157P6X-L22347
₹74.60 for 5 + GST
Specifications
- Type
- Multiplexer
- Number of Channels
- 2/1
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 10uA
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 3.5ns@5V,15pF
- Function
- Power-off protection;Level shifting
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The NC7SZ157 is a single, high performance, 2−to−1 CMOS non−inverting multiplexer from onsemi’s Ultra−High Speed series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC operating range. The inputs and outputs are high impedance when VCC is 0 V. Inputs tolerate voltages up to 5.5 V independent of VCC operating range.
Key features
- Broad VCC Operating Range: 1.65 V to 5.5 V
- Ultra High−Speed
- Power Down High−Impedance Inputs / Outputs
- Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
- Proprietary Noise / EMI Reduction Circuitry
- Ultra−Small MicroPak™ Packages
- Space−Saving SC−88 Package
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS1G157XC6#C20611889RUNIC · SC-70-6 | RUNIC | SC-70-6 | 2,975 | ₹15.66 · 2,975 in stock | View |
 | 74LVC1G157GW,125#C135822Nexperia · SOT-363-6 | Nexperia | SOT-363-6 | 10,705 | ₹28.29 · 10,705 in stock | View |
 | NC7SZ157P6X#C77686onsemi · SC-70-6 | onsemi | SC-70-6 | 8,950 | ₹7.29 · 8,950 in stock | View |
 | SN74LVC1G157DC(LX)#C22469913lingxingic · SOT-363 | lingxingic | SOT-363 | 2,490 | ₹10.21 · 2,490 in stock | View |
 | 74LVC1G157GW-JSM#C49006656JSMSEMI · SOT-363 | JSMSEMI | SOT-363 | 4,930 | ₹8.85 · 4,930 in stock | View |
