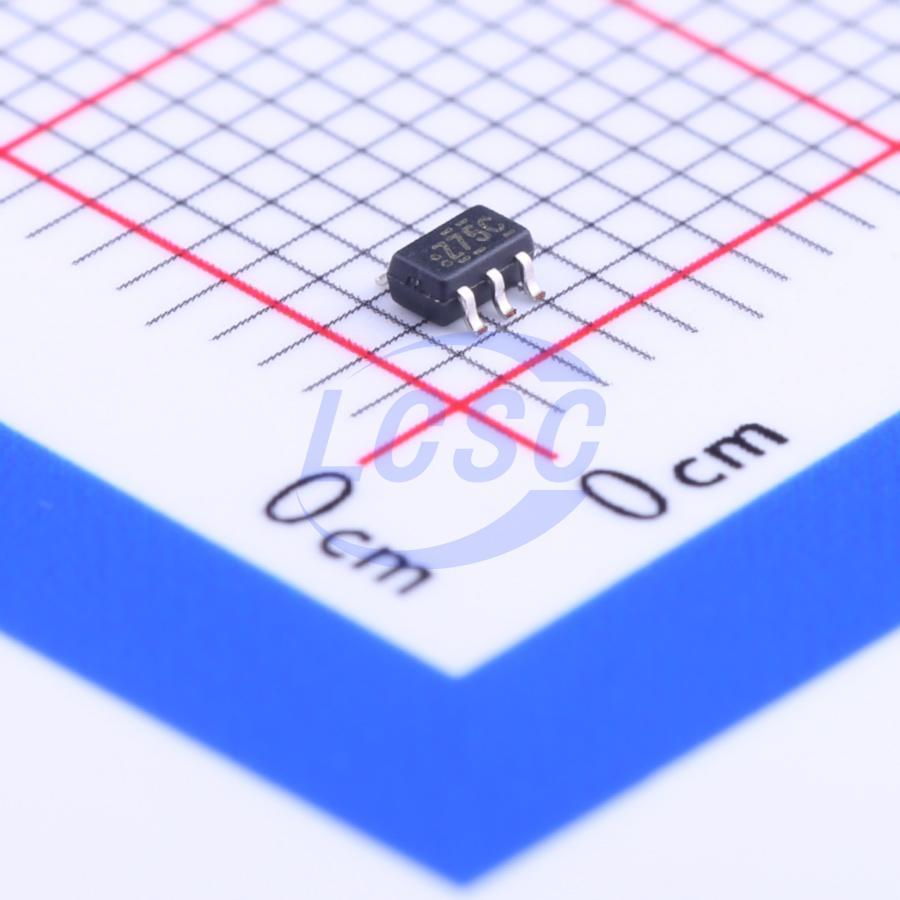

NC7SZ175P6X
1.65V~5.5V 1 1 4ns@5V,50pF SC-70-6(SOT-363) Flip Flops RoHS
TinyLogic UHS D-Type Flip-Flop with Asynchronous Clear
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ175P6X
- Store part #
- C128372
- Package / case
- SC-70-6(SOT-363)
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,650 in stock
#C128372
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.52 | ₹85.20 |
| 100+ | ₹6.64 | ₹664.00 |
| 300+ | ₹5.70 | ₹1,710.00 |
| 3,000+ | ₹5.00 | ₹15,000.00 |
| 6,000+ | ₹4.43 | ₹26,580.00 |
| 9,000+ | ₹4.15 | ₹37,350.00 |
10 × ₹8.52
₹85.20
excl. GST
₹100.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ175P6X
₹85.20 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Number of Bits per Element
- 1
- Operating Temperature
- -40℃~+85℃
- Series
- 7SZ Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
- Setup Time
- 1.5ns
- Quiescent Current
- 1uA
- Hold Time
- 1.5ns
- Propagation Delay
- 4ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The NC7SZ175 is a single positive edge-triggered D-type CMOS Flip-Flop with Asynchronous Clear from Fairchild’s Ultra High Speed Series of TinyLogic in the space saving SC70 6-lead package. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 7V independent of VCC operating voltage. This single flip-flop will store the state of the D input that meets the setup and hold time requirements on the LOW-to-HIGH Clock (CP) transition. A LOW input to Clear sets the Q output to LOW level. The Clear input is independent of clock.
Key features
- Space saving SC70 6-lead package
- Ultra small MicroPak leadless package
- Ultra High Speed; tPD 2.6 ns Typ into 50 pF at 5V VCC
- High Output Drive; ±24 mA at 3V VCC
- Broad VCC Operating Range; 1.65V to 5.5V
- Matches the performance of LCX when operated at 3.3V VCC
- Power down high impedance inputs/output
- Overvoltage tolerant inputs facilitate 5V to 3V translation
- Proprietary noise/EMI reduction circuitry implemented
