onsemiDatasheet (PDF)

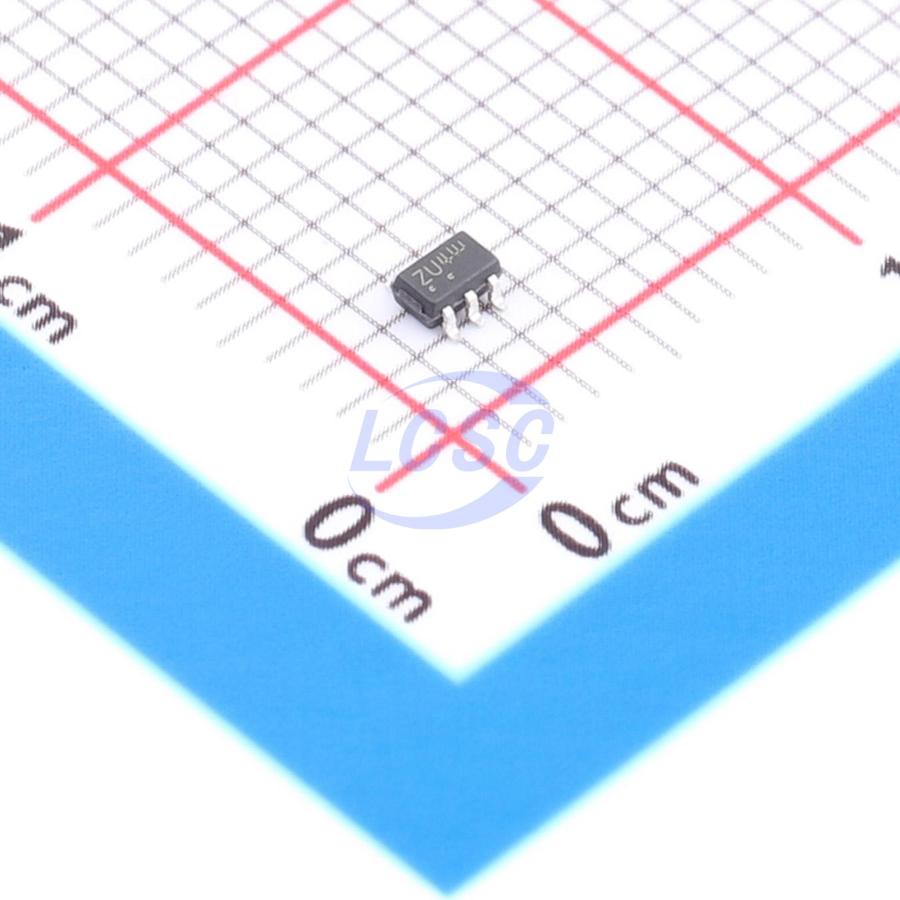

NC7SZU04P5X
1.65V~5.5V 5ns@5V,50pF 2uA 1 SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
TinyLogic UHs Unbuffered Inverter
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZU04P5X
- Store part #
- C891959
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,595 in stock
#C891959
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.88 | ₹49.40 |
| 50+ | ₹7.75 | ₹387.50 |
| 150+ | ₹6.68 | ₹1,002.00 |
| 500+ | ₹5.87 | ₹2,935.00 |
| 3,000+ | ₹5.24 | ₹15,720.00 |
| 6,000+ | ₹4.92 | ₹29,520.00 |
5 × ₹9.88
₹49.40
excl. GST
₹58.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZU04P5X
₹49.40 for 5 + GST
Specifications
- Logic Family
- 7SZU
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 5ns@5V,50pF
- Operating Temperature
- -40℃~+85℃
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 16mA
- Current - Output Low(IOL)
- 16mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The NC7SZU04 is a single unbuffered inverter from the Ultra−High Speed series of TinyLogic. The special purpose unbuffered circuit design is primarily intended for crystal oscillator or analog applications. The device is fabricated with advanced CMOS technology to achieve ultra−high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC range.
Key features
- Unbuffered for Crystal Oscillator and Analog Applications
- Balanced Output Drive: ±16 mA at 4.5 V VCC
- Broad VCC Operating Range: 1.65 V to 5.5 V
- Matches Performance of LCX Operated at 3.3 V VCC
- Low Quiescent Power: ICC < 2 μA, VCC = 5.5 V, TA = 25 ℃
- Ultra−Small MicroPak Packages
- Space−Saving SC−74A and SC−88A Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
