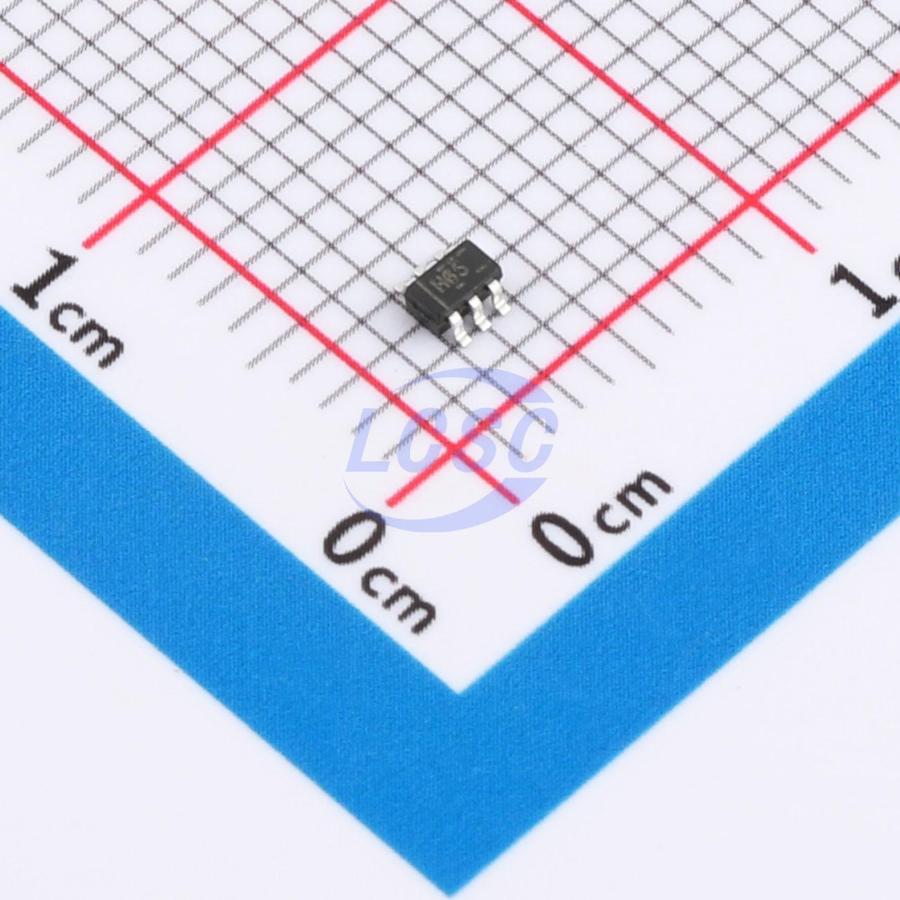

NC7WP14P6X-TP
Schmitt trigger 800mV~3.6V 15.6ns@0.8V,5pF 500nA 2 SOT-363 Gates and Inverters
SOT-363RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7WP14P6X-TP
- Store part #
- C52098004
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,190 in stock
#C52098004
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.57 | ₹95.70 |
| 100+ | ₹7.51 | ₹751.00 |
| 300+ | ₹6.50 | ₹1,950.00 |
| 3,000+ | ₹5.73 | ₹17,190.00 |
| 6,000+ | ₹5.12 | ₹30,720.00 |
| 9,000+ | ₹4.82 | ₹43,380.00 |
10 × ₹9.57
₹95.70
excl. GST
₹112.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7WP14P6X-TP
₹95.70 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Voltage - Supply
- 800mV~3.6V
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 15.6ns@0.8V,5pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V
- Quiescent Current(Iq)
- 500nA
- Number of Channels
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
NC7WP14P6X-TP is a dual inverter with Schmitt-trigger inputs. The device ensures extremely low static and dynamic power consumption across the full VCC range of 0.8V ~ 3.6V. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the outputs.
Applications
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
- Solid-state drives
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V ~ 3.6V
- Inputs accept voltages up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5μA (max)
- ESD protection exceeds JESD 22 standard
- 2000V Human Body Model
- 200V Machine Model
- 1000V Charged Device Model
