NCD0805G1

You can search LCSC for discrete 0805 green SMD LEDs featuring a peak wavelength around 520nm, forward voltage of 2.5V to 3.6V, and luminous intensity near 400mcd. Always review pinout diagrams, forward current ratings, and pad dimensions to ensure direct drop-in replacement compatibility for your specific application.

Mount the LED using standard SMT reflow soldering processes according to recommended 0805 footprint profiles. To safely drive the LED, use a current-limiting resistor calculated for a nominal forward current of 20mA based on your supply voltage and the LED forward voltage range of 2.5V to 3.6V.

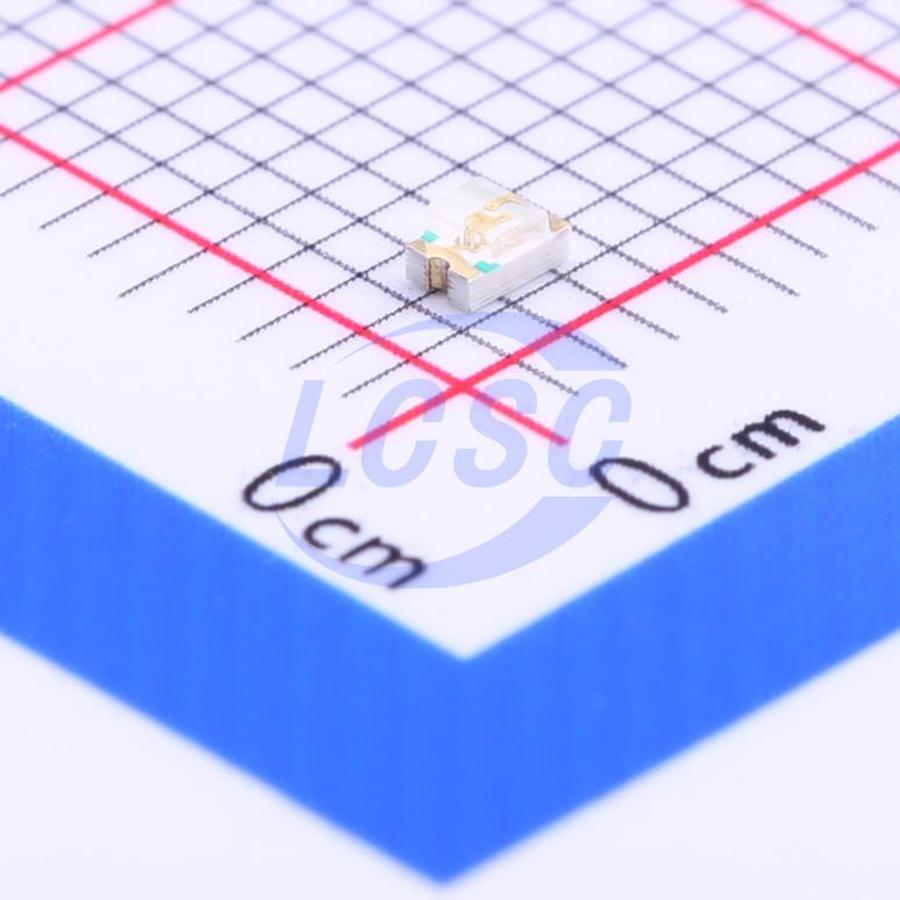

The NATIONSTAR NCD0805G1 is an 0805 green SMD LED with a peak wavelength of 520nm, luminous intensity of 400mcd, and a 130-degree viewing angle. It operates at a forward current of 20mA with a forward voltage between 2.5V and 3.6V across an operating temperature range of -30°C to +85°C.

This green SMD LED is ideal for status indication and backlighting across various electronic devices. Common applications include household appliance indicator lights, mobile phone keypad backlights, automotive dashboard displays, network communication equipment, and general SMT electronic products requiring high-visibility visual feedback in a compact footprint.

Yes, the NATIONSTAR NCD0805G1 features a standard 0805 surface-mount package, making it fully compatible with standard 0805 PCB footprint layouts and automated SMT assembly processes. It easily integrates into existing circuit board designs requiring compact green LED indicators operating within a standard 2.5V to 3.6V forward voltage range.
