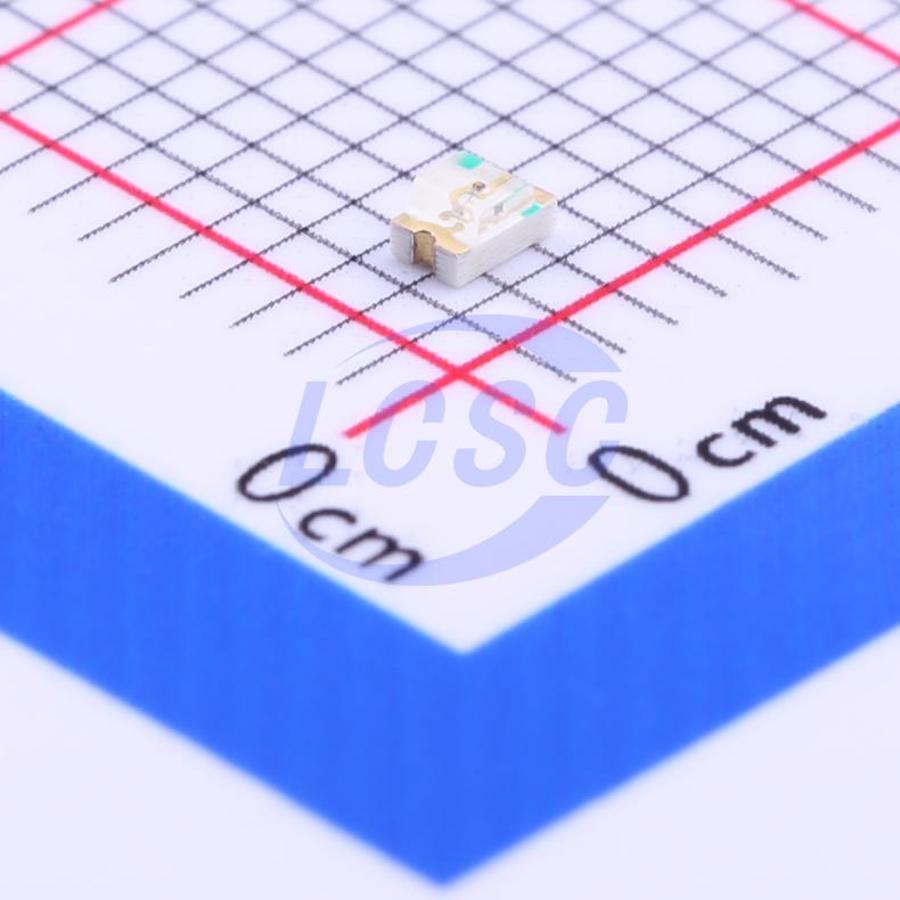

NCD0805R1
Red 630nm LED Indication - Discrete 1.6V~2.6V 0805
LED RED 0805 SMD
- Manufacturer
- NATIONSTAR
- Manufacturer part #
- NCD0805R1
- Store part #
- C84256
- Package / case
- 0805
- Category
- LED Indication - Discrete
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36,66,100 in stock
#C84256
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.49 | ₹74.50 |
| 500+ | ₹1.17 | ₹585.00 |
| 3,000+ | ₹0.979 | ₹2,937.00 |
| 6,000+ | ₹0.880 | ₹5,280.00 |
| 24,000+ | ₹0.836 | ₹20,064.00 |
| 51,000+ | ₹0.803 | ₹40,953.00 |
50 × ₹1.49
₹74.50
excl. GST
₹87.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCD0805R1
₹74.50 for 50 + GST
Specifications
- Half wave width
- 15nm
- Forward Current
- 25mA
- Operating Temperature
- -30℃~+85℃
- Voltage - Forward(Vf)
- 1.6V~2.6V
- Diode Configuration
- Discrete Diode
- Installation method
- Top-mount
- Peak Wavelength
- 630nm
- Lens Color
- Water Clear
- Viewing Angle
- 130°
- Luminous Intensity
- 195mcd
- Illumination Color
- Red
- Lamp Holder Type
- 1.2mm square LED
- Wavelength
- 615nm~630nm
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This product is mainly used as an electronic component for signal indication and lighting, and is widely applied in various electronic products adopting SMT structure, such as switch indicator lights for household appliances, mobile phone keyboard lights, automobile dashboard indicator lights, etc.
Applications
- Switch indicator lights for household appliances
- Mobile phone keypad lights
- Automotive dashboard indicator lights
- Surface-mount electronic products
- Communication equipment
Key features
- Die material: AlGaInP
- Emission color: Red
- Package material: Epoxy resin
- Soldering method: Lead-free reflow soldering
- High luminous intensity, low power consumption, high reliability, long lifespan
- Compliant with EU RoHS directive requirements
Alternatives
Similar parts — check the datasheet before substituting.
Questions about NCD0805R1
What are the core electrical and optical specifications of the NATIONSTAR NCD0805R1 LED?
The NATIONSTAR NCD0805R1 is an 0805 surface-mount LED with a maximum forward current of 25mA and a forward voltage of 1.5V to 2.6V (at IF = 20mA). It features a dominant wavelength of 615nm to 630nm, a 130° viewing angle, and a luminous intensity of 50mcd to 230mcd (typical 115mcd, depending on the brightness bin). The device is rated for an operating temperature range of -30°C to +85°C.
Can the NCD0805R1 be used in standard 0805 SMT LED applications?
Yes. The NCD0805R1 is an 0805 surface-mount LED intended for standard SMT assembly processes. When replacing another LED in an existing design, designers should verify that the forward voltage, forward current, optical performance, and PCB footprint meet the requirements of the application.
What environmental ratings does the NCD0805R1 support?
The NCD0805R1 is specified for an operating temperature range of -30°C to +85°C and a storage temperature range of -40°C to +100°C. The datasheet also specifies a maximum power dissipation of 65mW, reverse voltage of 5V, and maximum reverse current of 10µA at VR = 5V. These ratings define the recommended operating limits for reliable use.
How is the NCD0805R1 supplied?
The NCD0805R1 is supplied in tape-and-reel packaging for automated SMT assembly. According to the datasheet packaging information, a standard loaded reel contains 3,000 LEDs. Availability of cut tape, minimum order quantities, and purchasing options may vary by distributor.
What should be considered when installing the NCD0805R1?
The NCD0805R1 is intended for surface-mount (SMT) assembly and is supplied in tape-and-reel packaging for automated placement. During operation, the device should be used within the electrical and environmental limits specified in the datasheet.
