onsemiDatasheet (PDF)

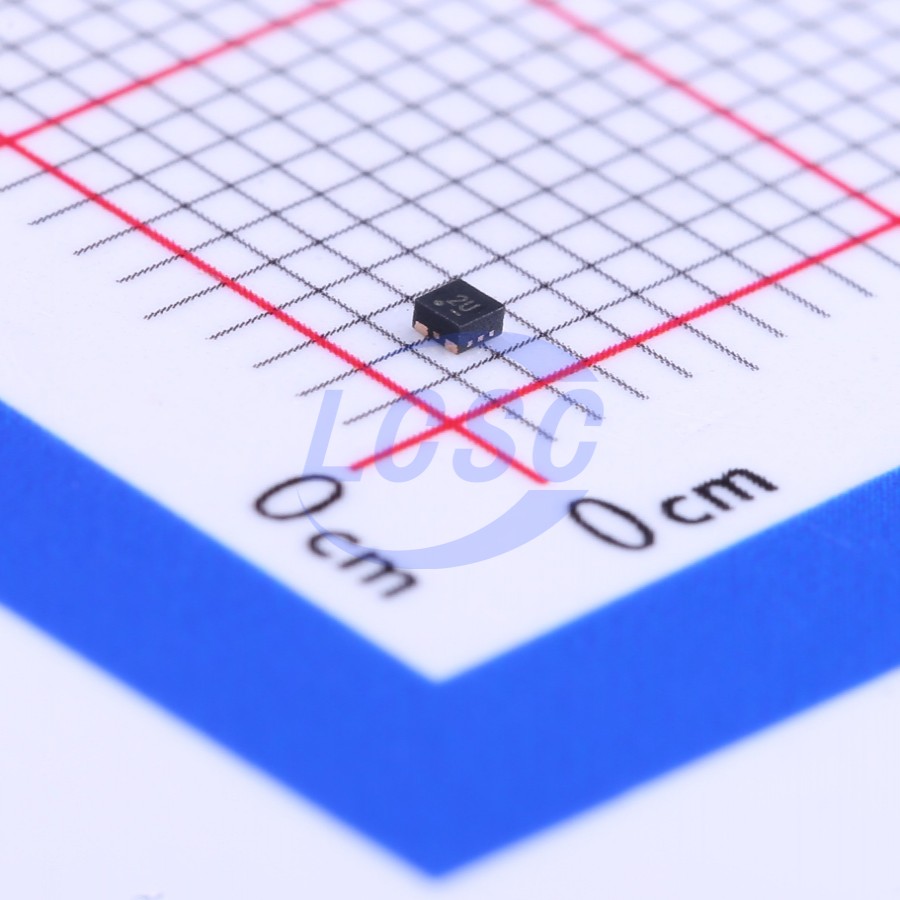

NCP114AMX280TCG
2.8V Positive Fixed UDFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
UDFN-4-EP(1x1)ROHS3 CompliantActive
300 mA CMos Low Dropout Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCP114AMX280TCG
- Store part #
- C133054
- Package / case
- UDFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,340 in stock
#C133054
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.67 | ₹98.35 |
| 50+ | ₹15.27 | ₹763.50 |
| 150+ | ₹13.38 | ₹2,007.00 |
| 500+ | ₹11.02 | ₹5,510.00 |
| 3,000+ | ₹9.98 | ₹29,940.00 |
| 6,000+ | ₹9.35 | ₹56,100.00 |
5 × ₹19.67
₹98.35
excl. GST
₹116.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP114AMX280TCG
₹98.35 for 5 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The NCP114 is 300 mA LDO that provides the engineer with a very stable, accurate voltage with low noise suitable for space constrained, noise sensitive applications. In order to optimize performance for battery operated portable applications, the NCP114 employs the dynamic quiescent current adjustment for very low IQ consumption at no−load.
Applications
- PDAs, Mobile phones, GPS, Smartphones
- Wireless Handsets, Wireless LAN
- Portable Medical Equipment
- Other Battery Powered Applications
Key features
- Operating Input Voltage Range: 1.7 V to 5.5 V
- Available in Fixed Voltage Options: 0.75 V to 3.6 V Contact Factory for Other Voltage Options
- Very Low Quiescent Current of Typ. 50 μA
- Standby Current Consumption: Typ. 0.1 μA
- Low Dropout: 135 mV Typical at 300 mA
- ±1% Accuracy at Room Temperature
- High Power Supply Ripple Rejection: 75 dB at 1 kHz
- Thermal Shutdown and Current Limit Protections
- Stable with a 1 μF Ceramic Output Capacitor
- Available in UDFN and TSOP Packages
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP114AMX280TBG#C603491onsemi · UDFN-4-EP(1x1) | onsemi | UDFN-4-EP(1x1) | 900 | ₹27.50 · 900 in stock | View |
 | PJ9350L28DE#C22470322PJSEMI · DFN-4L(1x1) | PJSEMI | DFN-4L(1x1) | 445 | ₹8.42 · 445 in stock | View |
 | CJ6205B28F#C2829396JSCJ · XDFN-4-EP(1x1) | JSCJ | XDFN-4-EP(1x1) | 9,700 | ₹7.00 · 9,700 in stock | View |
 | WL2836D28-4/TR#C2931317WILLSEMI · DFN1x1-4L | WILLSEMI | DFN1x1-4L | 1,060 | ₹8.20 · 1,060 in stock | View |
 | SK6013SD4-28#C47325472Suntek · DFN-4-EP(1x1) | Suntek | DFN-4-EP(1x1) | 180 | ₹11.30 · 180 in stock | View |
