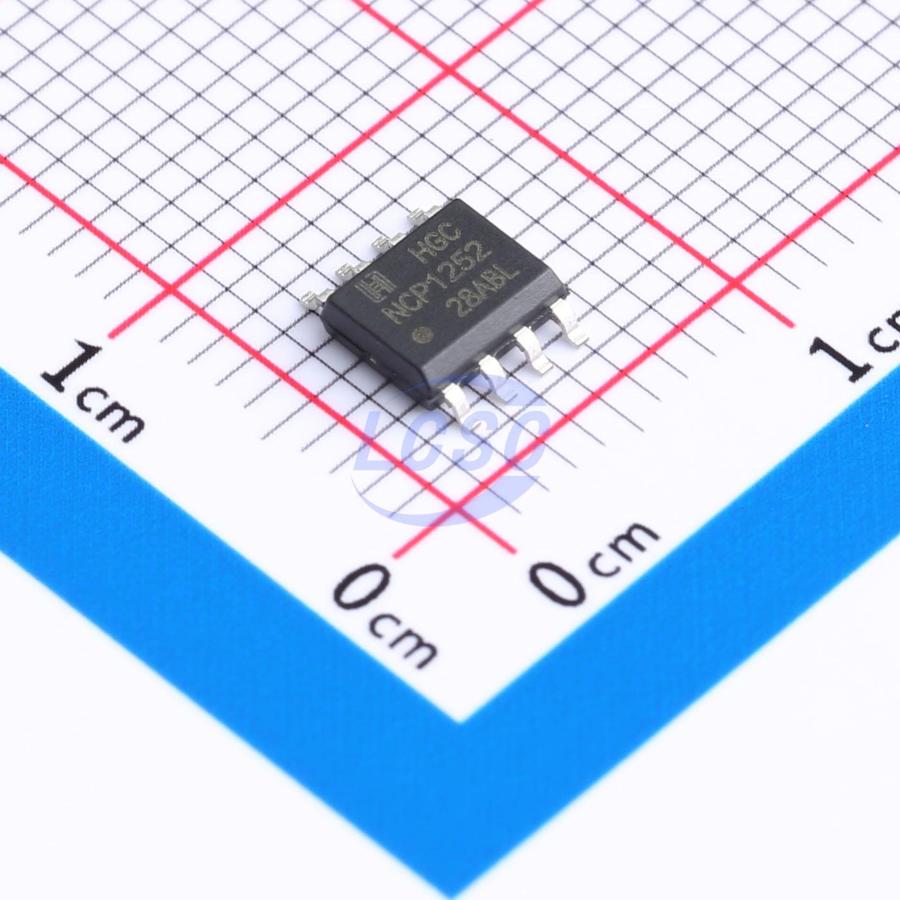

NCP1252DRG
92kHz~108kHz 9V~28V SOP-8 AC DC Converters, Offline Switchers RoHS
SOP-8ROHS CompliantActive
Current Mode PwM Controller for Forward and Flyback Applications
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- NCP1252DRG
- Store part #
- C5145243
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,865 in stock
#C5145243
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.67 | ₹108.35 |
| 50+ | ₹18.95 | ₹947.50 |
| 150+ | ₹17.77 | ₹2,665.50 |
| 500+ | ₹16.30 | ₹8,150.00 |
| 2,500+ | ₹14.87 | ₹37,175.00 |
| 5,000+ | ₹14.47 | ₹72,350.00 |
5 × ₹21.67
₹108.35
excl. GST
₹127.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCP1252DRG
₹108.35 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+125℃
- Output Current
- 500mA;800mA
- Frequency - Switching
- 92kHz~108kHz
- Voltage - Supply
- 9V~28V
- Features
- Soft-start;Over Voltage Protection;Over Current Protection;Under Voltage Protection
- Topology
- Flyback;Forward
- Duty Cycle(Max)
- 49.6%
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
The NCP1252 controller provides everything needed to build a cost-effective and reliable AC/DC switching power supply, dedicated for ATX power supplies. Thanks to an internal fixed timer, the NCP1252 can detect output overloads without relying on an auxiliary VDD. Under-voltage input protection prevents low input voltage conditions and enhances converter safety. Finally, the SOP8 package saves PCB space, making it the preferred solution for cost-sensitive projects. The NCP1252 is available in SOP-8/DIP-8 packages.
Applications
- PC silver chassis power supplies, gaming adapters
- Flyback and forward converters
Key features
- Peak current mode control
- Adjustable switching frequency up to 500 kHz
- Frequency jitter
- Latched primary OCP with 10 ms delay
- OLP with 55 ms delay
- Delayed operation at startup via internal fixed timer
- Adjustable soft-start timer
- VDD range 10V to 26V with auto-recovery UVLO
- Auto-recovery undervoltage detection
- Internal 160 ns leading edge blanking
- Adjustable internal slope compensation
- +500 mA / –800 mA source/sink current capability
- Compliant with latest no-load regulation specifications
- Maximum duty cycle 50%
- SOP-8 and DIP-8 packages
