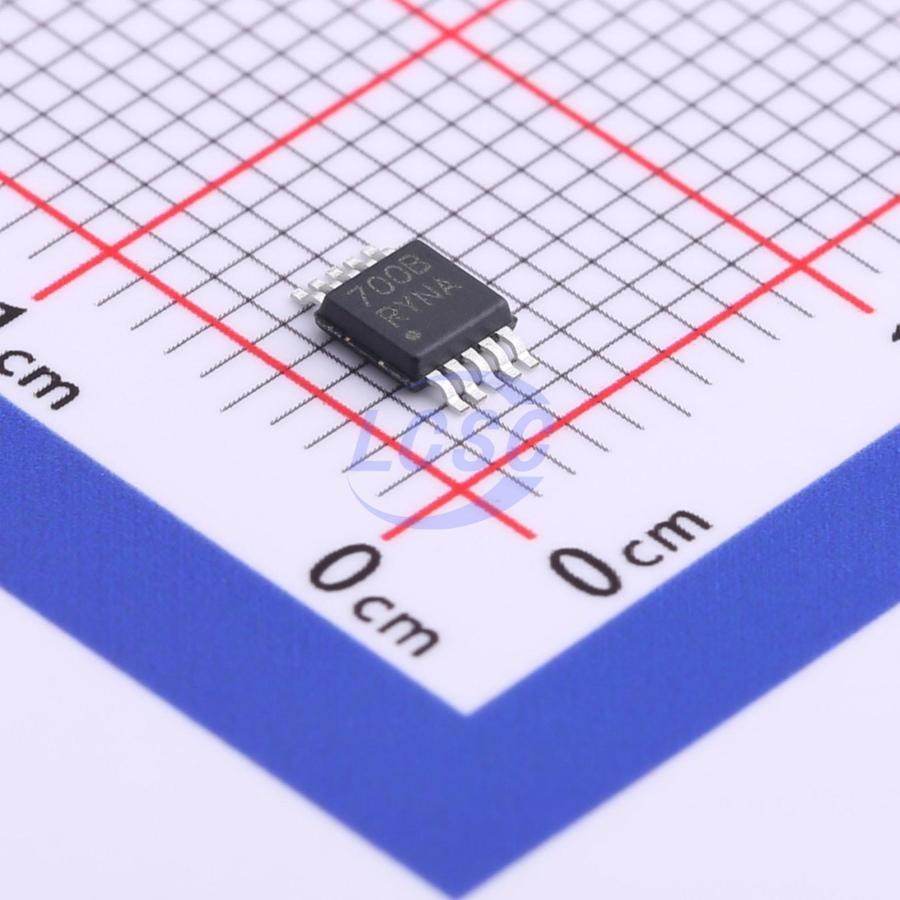

NCP12700BDNR2G
100kHz~1MHz 9V~20V Flyback MSOP-10 AC DC Converters, Offline Switchers RoHS
MSOP-10ROHS3 CompliantActive
PwM Controller, Input Current Mode, Ultra Wide
- Manufacturer
- onsemi
- Manufacturer part #
- NCP12700BDNR2G
- Store part #
- C603535
- Package / case
- MSOP-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,878 in stock
#C603535
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹196.62 | ₹196.62 |
| 10+ | ₹162.73 | ₹1,627.30 |
| 30+ | ₹144.05 | ₹4,321.50 |
| 100+ | ₹113.63 | ₹11,363.00 |
| 500+ | ₹104.07 | ₹52,035.00 |
| 1,000+ | ₹99.94 | ₹99,940.00 |
1 × ₹196.62
₹196.62
excl. GST
₹232.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NCP12700BDNR2G
₹196.62 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Output Current
- 1A;2.8A
- Frequency - Switching
- 100kHz~1MHz
- Voltage - Supply
- 9V~20V
- Features
- High voltage direct start;Adjustable soft-start;Slope compensation;Leading edge blanking;Under-voltage lockout;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
- Topology
- Flyback
- Duty Cycle(Max)
- 80%
- Feedback System
- Secondary-Side Feedback
- Working Mode
- CCM;DCM
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
The NCP12700 is a fixed frequency, peak current mode, PWM controller containing all of the features necessary for implementing single−ended power converter topologies. The device features a high voltage startup capable of operating over a wide input range and supplying at least 15 mA to provide temporary bias to VCC during system startup. The device contains a programmable oscillator capable of operating from 100 kHz to 1 MHz and integrates slope compensation to prevent subharmonic oscillations. The controller offers an adjustable soft−start, input voltage UVLO protection, and an adjustable Over−Power Protection circuit which limits the total power capability of the circuit as the input voltage increases, easing the system thermal design. The UVLO pin also features a shutdown comparator which allows for an external signal to disable switching and bring the controller into a low quiescent state. The NCP12700 contains a suite of protection features including cycle−by−cycle peak current limiting, timer−based overload protection, and a FLT pin which can be interfaced with an NTC and an auxiliary winding to provide system thermal protection and output over−voltage protection. All protection features place the device into a low quiescent fault mode and recovery from fault mode is dependent on the device option.
Applications
- Single−ended Power Converters including CCM/DCM Flyback and Forward Converters
- Telecommunications Power Converters
- Industrial Power Converter Modules
- Transportation & Railway Power Modules
Key features
- Wide Input Range (9 – 120/200 V; MSOP10/WQFN10)
- Startup Regulator Circuit with 15 mA Capability
- Current Mode Control with Integrated Slope Compensation
- Suitable for Flyback or Forward Converters
- Single Resistor Programmable Oscillator
- 1 A / 2.8 A Source / Sink Gate Driver
- User Adjustable Soft−Start Ramp
- Input Voltage UVLO with Hysteresis
- Shutdown Threshold for External Disable
- Skip Cycle Mode for Low Standby Power
- This is a Pb−Free Device
- User Adjustable Over−Power Protection
- Overload Protection with 30 ms Overload Timer
- NTC−Compatible Fault Interface for Thermal Protection
- Output OVP Fault Interface
- Fault Auto−recovery Mode with 1 s Auto−recovery Period
