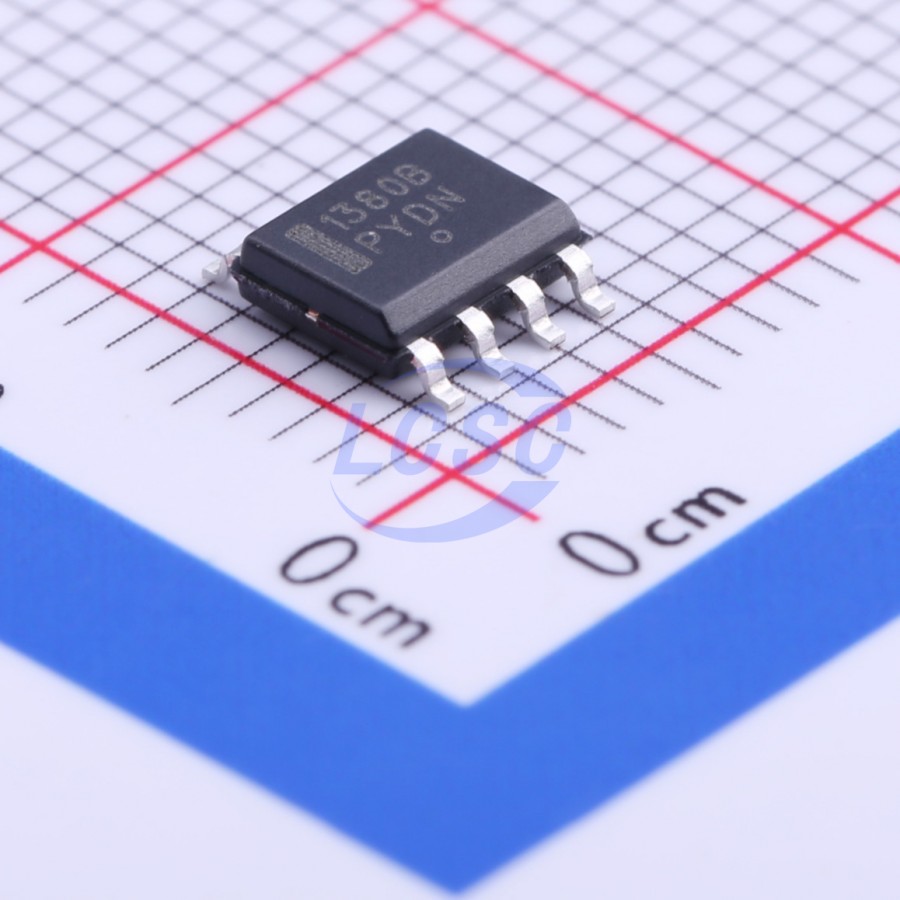

NCP1380BDR2G

The NCP1380 hosts a high−performance circuitry aimed to powering quasi−resonant converters. Capitalizing on a proprietary valley−lockout system, the controller shifts gears and reduces the switching frequency as the power loading becomes lighter. This results in a stable operation despite switching events always occurring in the drain−source valley. This system works down to the 4th valley and toggles to a variable frequency mode beyond, ensuring an excellent standby power performance. To improve the safety in overload situations, the controller includes an Over Power Protection (OPP) circuit which clamps the delivered power at high−line. Safety−wise, a fixed internal timer relies on the feedback voltage to detect a fault. Once the timer elapses, the controller stops and stays latched for option A and C or enters auto−recovery mode for option B and D. Particularly well suited for adapter applications, the controller features a pin to implement either a combined overvoltage / overtemperature protection (Version A and B) or a combined brown−out/overvoltage protection (Version C and D).

Applications

• High Power ac−dc Converters for TVs, Set−Top Boxes etc.
• Offline Adapters for Notebooks

Key features

• Quasi−Resonant Peak Current−Mode Control Operation
• Valley Switching Operation with Valley−Lockout for Noise−Immune Operation
• Frequency Foldback at Light Load to Improve the Light Load Efficiency
• Adjustable Over Power Protection
• Auto−Recovery or Latched Internal Output Short−Circuit Protection
• Fixed Internal 80 ms Timer for Short−Circuit Protection
• Combined Overvoltage and Overtemperature Protection (A and B Versions)
• Combined Overvoltage Protection and Brown−Out (C and D Versions)
• +500 mA Peak Current Source/Sink Capability
• Internal Temperature Shutdown
• Direct Optocoupler Connection
• Extended VCC Range Operation Up to 28 V
• Extremely Low No−Load Standby Power
• SO−8 Package
• These Devices are Pb −Free and are RoHS Compliant
