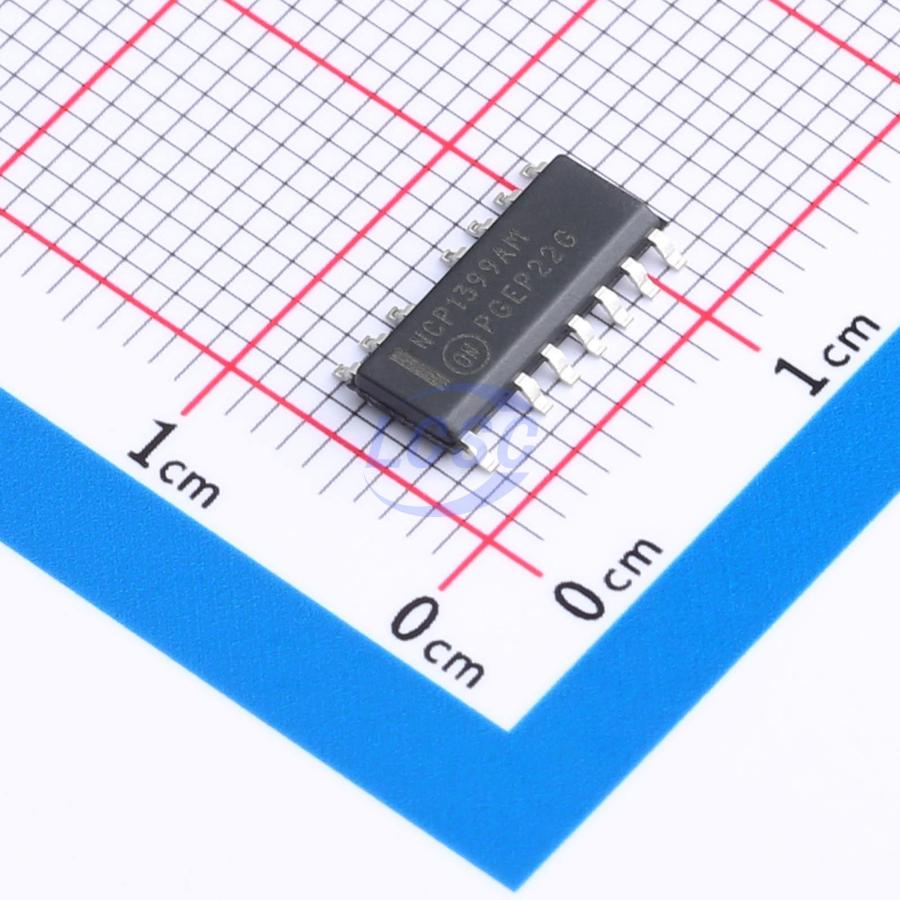

NCP1399AMDR2G

The NCP1399 is a high performance current mode controller for half bridge resonant converters. This controller implements 600 V gate drivers, simplifying layout and reducing external component count. The built−in Brown−Out input function eases implementation of the controller in all applications. In applications where a PFC front stage is needed, the NCP1399 features a dedicated output to drive the PFC controller. This feature together with dedicated skip mode technique further improves light load efficiency of the whole application. The NCP1399 provides a suite of protection features allowing safe operation in any application. This includes: overload protection, over−current protection to prevent hard switching cycles, brown−out detection, open optocoupler detection, automatic dead−time adjust, overvoltage (OVP) and overtemperature (OTP) protections.

Applications

• Adapters and Offline Battery Chargers
• Flat Panel Display Power Converters
• Computing Power Supplies
• Industrial and Medical Power Sources

Key features

• High−Frequency Operation from 20 kHz up to 750 kHz
• Current Mode Control Scheme
• Automatic Dead−time with Maximum Dead−time Clamp
• Dedicated Startup Sequence for Fast Resonant Tank Stabilization
• Skip Mode Operation for Improved Light Load Efficiency
• Off−mode Operation for Extremely Low No−load Consumption
• Latched or Auto−Recovery Overload Protection
• Latched or Auto−Recovery Output Short Circuit Protection
• Latched Input for Severe Fault Conditions, e.g. OVP or OTP
• Out of Resonance Switching Protection
• Open Feedback Loop Protection
• Precise Brown−Out Protection
• PFC Stage Operation Control According to Load Conditions
• Startup Current Source with Extremely Low Leakage Current
• Dynamic Self−Supply (DSS) Operation in Off−mode or Fault Modes
• Pin to Adjacent Pin / Open Pin Fail Safe
• These are Pb−Free Devices
