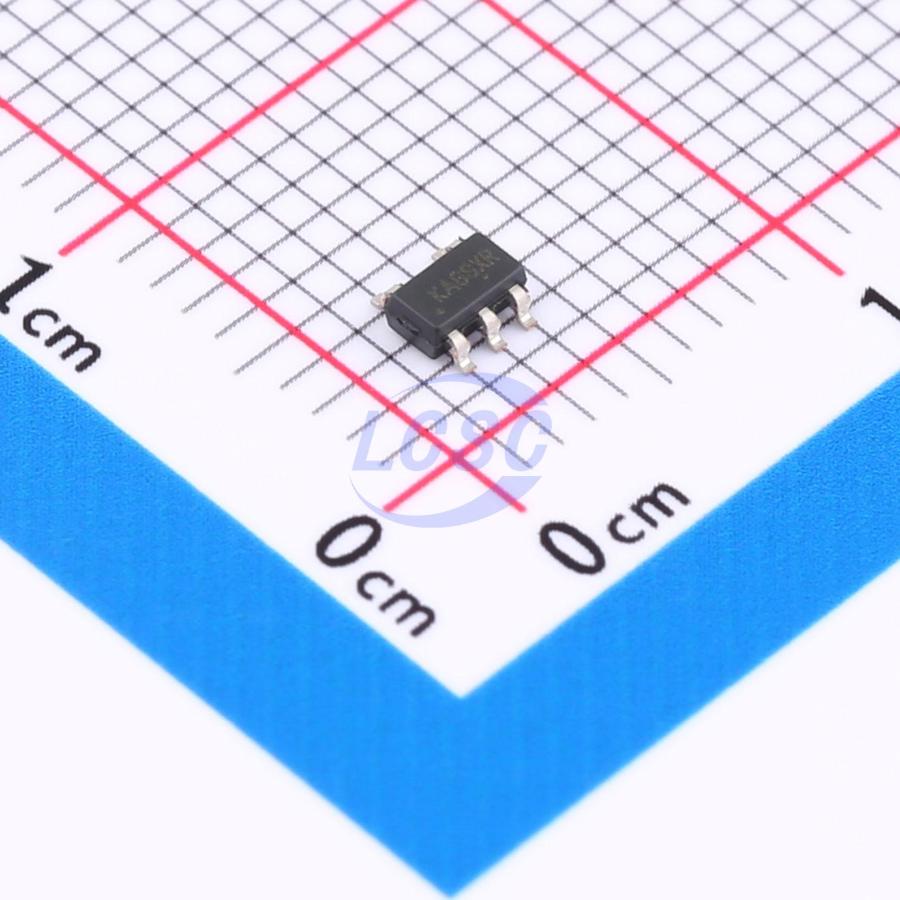

NCP163ASN330T1G
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
LDO Regulator - Ultra-Low Noise, High PSRR, RF and Analog Circuits
- Manufacturer
- onsemi
- Manufacturer part #
- NCP163ASN330T1G
- Store part #
- C603656
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,080 in stock
#C603656
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.42 | ₹217.10 |
| 50+ | ₹33.83 | ₹1,691.50 |
| 150+ | ₹29.73 | ₹4,459.50 |
| 500+ | ₹24.59 | ₹12,295.00 |
| 3,000+ | ₹22.31 | ₹66,930.00 |
| 6,000+ | ₹20.94 | ₹1,25,640.00 |
5 × ₹43.42
₹217.10
excl. GST
₹256.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP163ASN330T1G
₹217.10 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 12uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Features
- Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.388 g
Overview
The NCP163 is a next generation of high PSRR, ultra−low noise LDO capable of supplying 250 mA output current. Designed to meet the requirements of RF and sensitive analog circuits, the NCP163 device provides ultra−low noise, high PSRR and low quiescent current. The device also offer excelent load/line transients. The NCP163 is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in two thickness ultra−small 0.35P, WLCSP Packages, XDFN4 0.65P and industry standard SOT23−5L.
Applications
- Battery−powered Equipment
- Wireless LAN Devices
- Smartphones, Tablets
- Cameras, DVRs, STB and Camcorders
Key features
- Operating Input Voltage Range: 2.2 V to 5.5 V
- Available in Fixed Voltage Option: 1.2 V to 5.3 V
- ±2% Accuracy Over Load/Temperature
- Ultra Low Quiescent Current Typ. 12 μA
- Standby Current: Typ. 0.1 μA
- Very Low Dropout: 80 mV at 250 mA
- Ultra High PSRR: Typ. 92 dB at 20 mA, f = 1 kHz
- Ultra Low Noise: 6.5 VRMS
- Stable with a 1 μF Small Case Size Ceramic Capacitors
- Available in − WLCSP4: 0.65 mm x 0.65 mm x 0.33 mm, WLCSP4: 0.65 mm x 0.65 mm x 0.4 mm, XDFN4: 1 mm x 1 mm x 0.4 mm, SOT23−5: 2.9 mm x 2.8 mm x 1.2 mm
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV8163ASN330T1G#C604041onsemi · TSOP-5 | onsemi | TSOP-5 | 68 | ₹96.27 · 68 in stock | View |
 | LDLN025M33R#C2970118ST · SOT-23-5L | ST | SOT-23-5L | 268 | ₹74.52 · 268 in stock | View |
 | LW5433A23E#C20630445Lewa Micro · SOT-23-5L | Lewa Micro | SOT-23-5L | 8,146 | ₹38.18 · 8,146 in stock | View |
 | LW5733A23E#C47018876Lewa Micro · SOT-23-5L | Lewa Micro | SOT-23-5L | 3,630 | ₹35.69 · 3,630 in stock | View |
 | ETA5055V330DS2F#C22362747etasolution · SOT-23-5 | etasolution | SOT-23-5 | 34,350 | ₹8.96 · 34,350 in stock | View |
