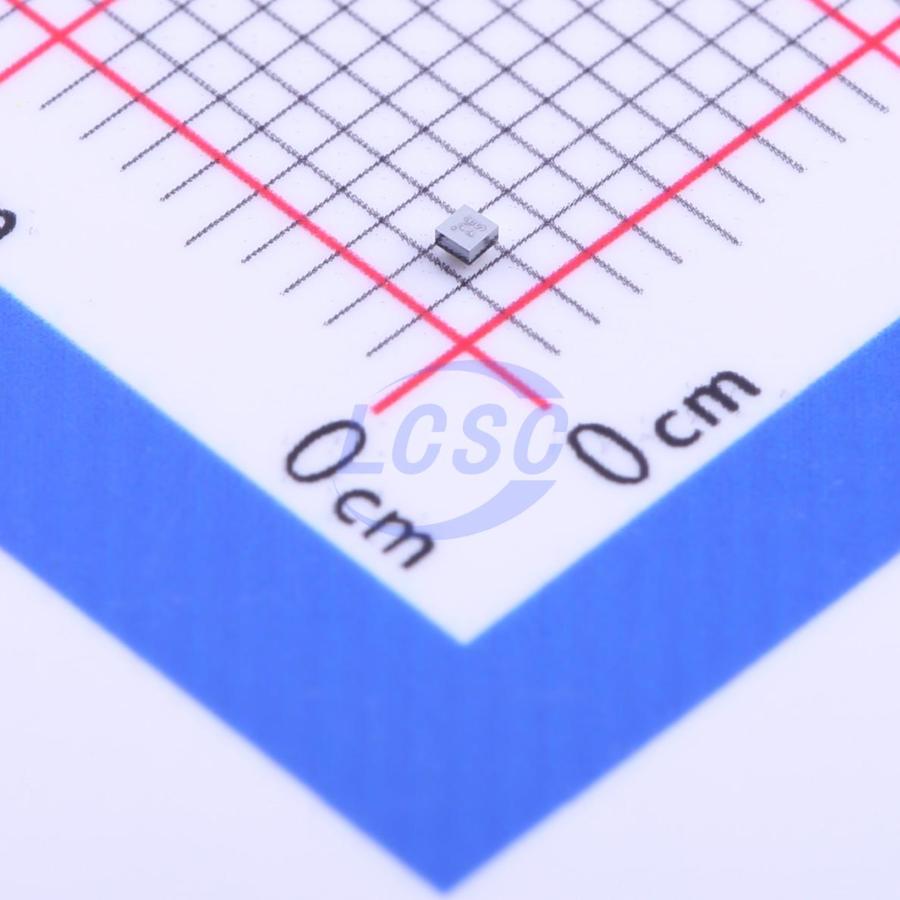

NCP333FCT2G
1 Active High 1.5A High Side Switch WLCSP-4(0.8x0.8) Power Distribution Switches, Load Drivers RoHS
WLCSP-4(0.8x0.8)ROHS3 CompliantActive
1.5 A Ultra-Small Controlled Load Switch with Auto-Discharge Path
- Manufacturer
- onsemi
- Manufacturer part #
- NCP333FCT2G
- Store part #
- C150074
- Package / case
- WLCSP-4(0.8x0.8)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,980 in stock
#C150074
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.00 | ₹180.00 |
| 50+ | ₹28.56 | ₹1,428.00 |
| 150+ | ₹25.36 | ₹3,804.00 |
| 500+ | ₹21.37 | ₹10,685.00 |
| 3,000+ | ₹19.60 | ₹58,800.00 |
| 6,000+ | ₹18.54 | ₹1,11,240.00 |
5 × ₹36.00
₹180.00
excl. GST
₹212.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP333FCT2G
₹180.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Output discharge function;Soft-start
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1.5A
- RDS(on)
- 45mΩ
- Operating Voltage
- 1.2V~5.5V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.019 g
Overview
The NCP333 are low Ron MOSFET controlled by external logic pin, allowing optimization of battery life, and portable device autonomy. Indeed, thanks to a current consumption optimization with PMOS structure, leakage currents are eliminated by isolating connected IC’s on the battery when not used. Output discharge path is also embedded to eliminate residual voltages on the output rail. Proposed in a wide input voltage range from 1.2 V to 5.5 V, and a very small 0.76 x 0.76 mm WLCSP4, 0.4 pitch.
Applications
- Mobile Phones
- Tablets
- Digital Cameras
- GPS
- Portable Devices
Key features
- 1.2 V - 5.5 V Operating Range
- 55 mΩ P MOSFET at 3.3 V
- DC Current up to 1.5 A
- Output Auto−Discharge
- Active High EN Pin
- WLCSP4 0.76 x 0.76 mm
- This Device is Pb −Free, Halogen Free/BFR Free and is RoHS Compliant
