onsemi

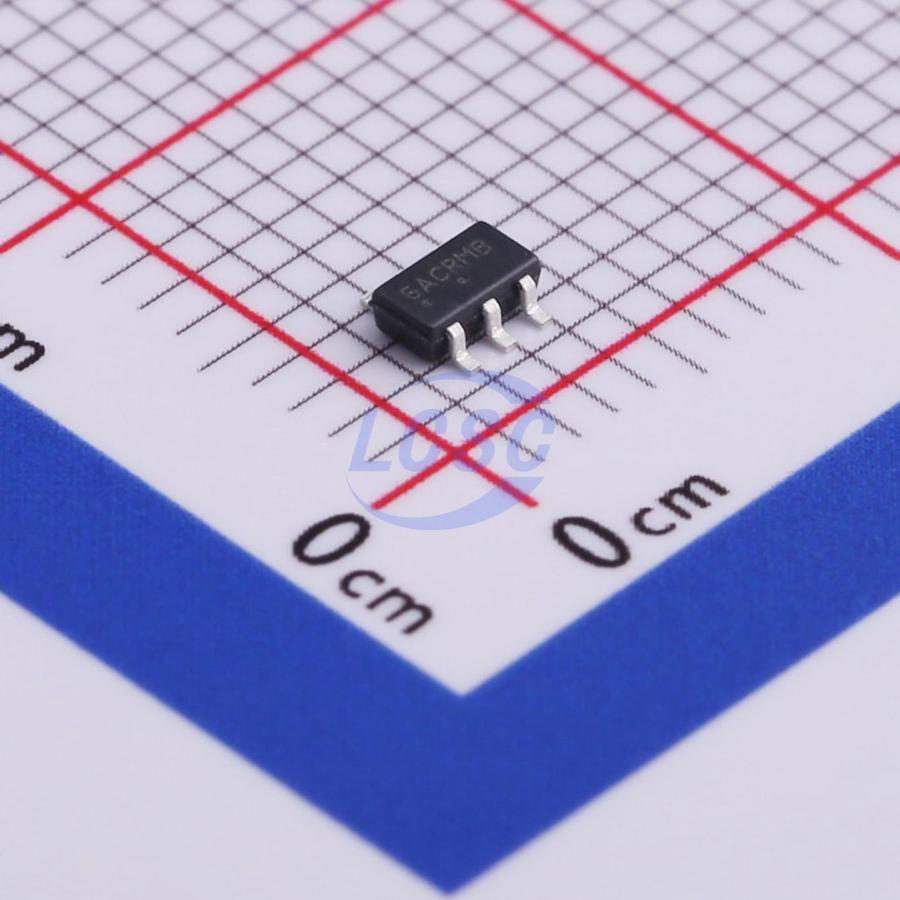

NCP4306DADZZDASNT1G

1MHz TSOP-6-1.5mm Power Supply Controllers, Monitors RoHS

TSOP-6-1.5mmROHS3 CompliantActive

Secondary Side Synchronous Rectification Driver for High Efficiency SMPs Topologies

Manufacturer: onsemi
Manufacturer part #: NCP4306DADZZDASNT1G
Store part #: C504885
Package / case: TSOP-6-1.5mm
Category: Power Supply Controllers, Monitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,206 in stock

#C504885

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹96.22	₹96.22
10+	₹77.77	₹777.70
30+	₹68.43	₹2,052.90
100+	₹59.30	₹5,930.00
500+	₹49.53	₹24,765.00
1,000+	₹46.70	₹46,700.00

Quantity (min 1)

1 × ₹96.22

₹96.22

excl. GST

₹113.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCP4306DADZZDASNT1G

₹96.22 for 1 + GST

Specifications

MOS Breakdown Voltage: 200V
Function: Multi-mode compatible control;Programmable dead-time;Light load efficient mode
Frequency - Switching: 1MHz
Switch Tube (Built-In/External): Non Built-In
Quiescent Current: 60uA
Operating Temperature: -40℃~+125℃
Operating Voltage: 4V~35V
Peak Output Current(Sink): 7A
Peak Output Current(Source): 2A
Turn-Off Delay: 13ns

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.042 g

Overview

The NCP4306 is high performance driver tailored to control a synchronous rectification MOSFET in switch mode power supplies. Thanks to its high performance drivers and versatility, it can be used in various topologies such as DCM or CCM flyback, quasi resonant flyback, forward and half bridge resonant LLC. The combination of externally or fixed adjustable minimum off-time and on-time blanking periods helps to fight the ringing induced by the PCB layout and other parasitic elements. A reliable and noise less operation of the SR system is insured due to the Self Synchronization feature. The NCP4306 also utilizes Kelvin connection of the driver to the MOSFET to achieve high efficiency operation at full load and utilizes a light load detection architecture to achieve high efficiency at light load. The precise turn−off threshold, extremely low turn−off delay time and high sink current capability of the driver allow the maximum synchronous rectification MOSFET conduction time and enables maximum SMPS efficiency. The high accuracy driver and 5 V gate clamp enables the use of GaN MOSFETs.

Applications

Notebook Adapters
High Power Density AC / DC Power Supplies (Cell Phone Chargers)
LCD TVs
All SMPS with High Efficiency Requirements

Key features

Self−Contained Control of Synchronous Rectifier in CCM, DCM and QR for Flyback or LLC Applications
Precise True Secondary Zero Current Detection
Typically 15 ns Turn off Delay from Current Sense Input to Driver
Rugged Current Sense Pin (up to 200 V)
Ultrafast Turn−off Trigger Interface / Disable Input (10.5 ns)
Adjustable or Fixed Minimum ON−Time
Adjustable or Fixed Minimum OFF-Time with Ringing Detection
Improved Robust Self Synchronization Capability
7 A / 2 A Peak Current Sink / Source Drive Capability
Operating Voltage Range up to VCC = 35 V
Automatic Light−load Disable Mode
GaN Transistor Driving Capability
Low Startup and Disable Current Consumption
Maximum Operation Frequency up to 1 MHz
TSOP6, SOIC8, DFN8 4x4 and DFN8 2x2.2 Packages
This is a Pb−Free Device
