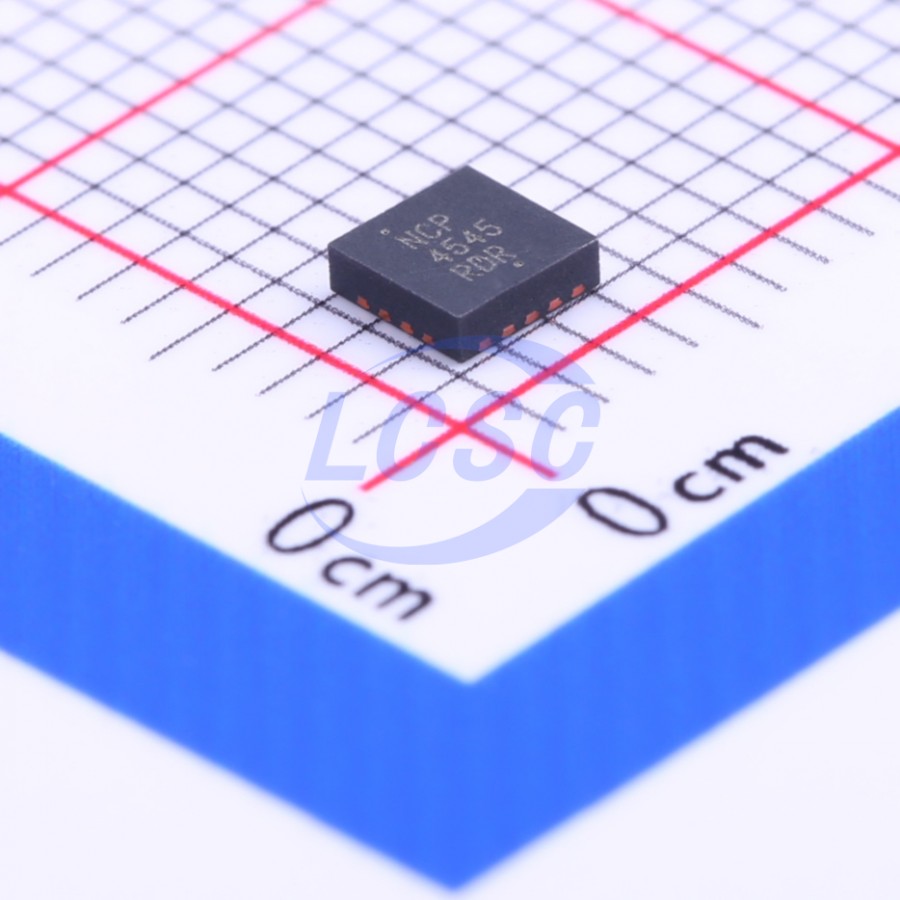

NCP4545IMNTWG
1 Active High 10.5A Load Switch QFN-18-EP(3x3) Power Distribution Switches, Load Drivers RoHS
QFN-18-EP(3x3)ROHS3 CompliantDiscontinued
Controlled Load Switch with Low RoN
- Manufacturer
- onsemi
- Manufacturer part #
- NCP4545IMNTWG
- Store part #
- C154786
- Package / case
- QFN-18-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,808 in stock
#C154786
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹178.99 | ₹178.99 |
| 10+ | ₹164.61 | ₹1,646.10 |
| 30+ | ₹155.81 | ₹4,674.30 |
| 100+ | ₹146.58 | ₹14,658.00 |
| 500+ | ₹142.50 | ₹71,250.00 |
| 1,000+ | ₹140.78 | ₹1,40,780.00 |
1 × ₹178.99
₹178.99
excl. GST
₹211.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP4545IMNTWG
₹178.99 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Features
- Soft-start;Output discharge function;Integrated charge pump
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 10.5A
- RDS(on)
- 4.7mΩ
- Operating Voltage
- 500mV~6V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.84 g
Overview
The NCP4545 load switch provides a component and area-reducing solution for efficient power domain switching with inrush current limit via soft start. It is designed to integrate control and driver functionality with a high performance low on-resistance power MOSFET in a single device. This cost effective solution is ideal for power management and hot−swap applications requiring low power consumption in a small footprint.
Applications
- Notebook and Tablet Computers
- Handheld Electronics
- Digital Cameras
- Portable Medical Devices
- Hard Drives
- Peripheral Ports
Key features
- Advanced Controller with Charge Pump
- Integrated N−Channel MOSFET
- Soft−Start via Adjustable Slew Rate Control
- Low On−Resistance
- Input Voltage Range 0.5 V to 6 V
- Low Standby Current
- Load Bleed Function
- No External Components Required
- Enable Pin with CMOS Input Levels
- This is a Pb−Free Device
