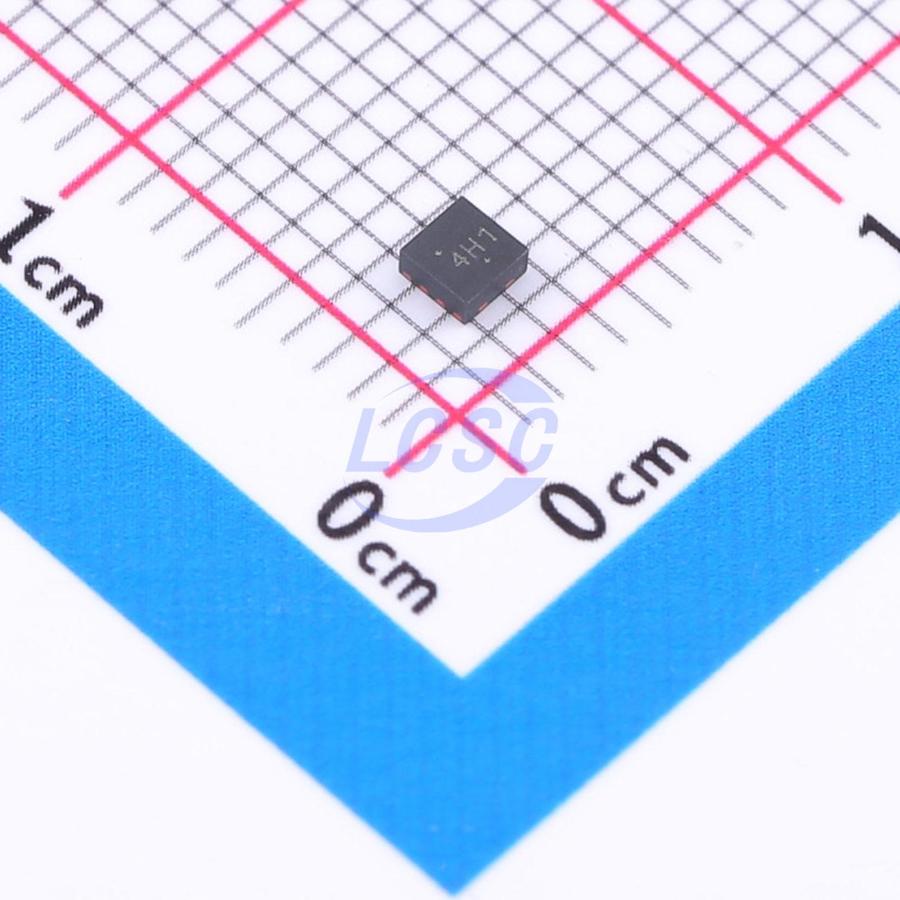

NCP45524IMNTWG-H
1 6A Active High Load Switch WFDFN-8-EP(2x2) Power Distribution Switches, Load Drivers RoHS
WFDFN-8-EP(2x2)ROHS3 CompliantActive
Advanced Load Management with Inrush Current Limit via Soft Start
- Manufacturer
- onsemi
- Manufacturer part #
- NCP45524IMNTWG-H
- Store part #
- C603740
- Package / case
- WFDFN-8-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,001 in stock
#C603740
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹173.67 | ₹173.67 |
| 10+ | ₹153.07 | ₹1,530.70 |
| 30+ | ₹142.67 | ₹4,280.10 |
| 100+ | ₹132.49 | ₹13,249.00 |
| 500+ | ₹84.34 | ₹42,170.00 |
| 1,000+ | ₹81.31 | ₹81,310.00 |
1 × ₹173.67
₹173.67
excl. GST
₹204.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP45524IMNTWG-H
₹173.67 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Integrated charge pump;Soft-start;Output discharge function
- number of channels
- 1
- Maximum Continuous Current
- 6A
- Control Input Logic
- Active High
- RDS(on)
- 18mΩ
- Operating Voltage
- 500mV~13.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.063 g
Overview
The NCP4552x series of load switches provide a component and area-reducing solution for efficient power domain switching with inrush current limit via soft start. These devices are designed to integrate control and driver functionality with a high performance low on−resistance power MOSFET in a single package. This cost effective solution is ideal for power management and hot-swap applications requiring low power consumption in a small footprint.
Applications
- Portable Electronics and Systems
- Notebook and Tablet Computers
- Telecom, Networking, Medical, and Industrial Equipment
- Set−Top Boxes, Servers, and Gateways
- Hot Swap Devices and Peripheral Ports
Key features
- Advanced Controller with Charge Pump
- Integrated N-Channel MOSFET with Low RON
- Input Voltage Range 0.5 V to 13.5 V
- Soft-Start via Controlled Slew Rate
- Adjustable Slew Rate Control (NCP45525)
- Power Good Signal (NCP45524)
- Extremely Low Standby Current
- Load Bleed (Quick Discharge)
- This is a Pb−Free Device
