onsemiDatasheet (PDF)

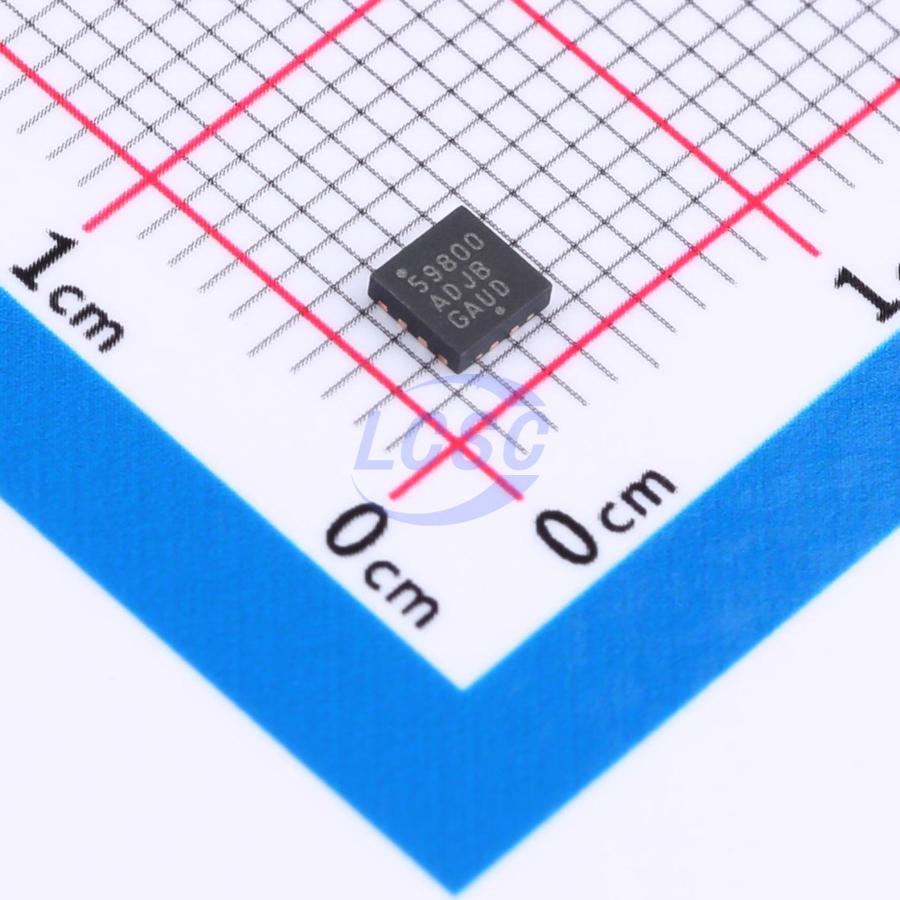

NCP59800BMNADJTBG
800mV~5V Positive Adjustable DFN-8(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-8(3x3)ROHS3 CompliantActive
1A Low-Noise RF LDO Voltage Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCP59800BMNADJTBG
- Store part #
- C464053
- Package / case
- DFN-8(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,667 in stock
#C464053
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.99 | ₹120.99 |
| 10+ | ₹96.24 | ₹962.40 |
| 30+ | ₹83.85 | ₹2,515.50 |
| 100+ | ₹71.47 | ₹7,147.00 |
| 500+ | ₹64.09 | ₹32,045.00 |
| 1,000+ | ₹60.39 | ₹60,390.00 |
1 × ₹120.99
₹120.99
excl. GST
₹142.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP59800BMNADJTBG
₹120.99 for 1 + GST
Specifications
- Output Voltage
- 800mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 1A
- Features
- Enable control;Adjustable soft-start;Noise bypass terminal;Input under-voltage protection;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
The NCP59800 is a 1 A low−dropout linear regulators (LDOs) offering high power−supply ripple rejection (PSRR) and ultra−low output noise. This LDO uses an advanced BiCMOS process to achieve very good electrical performance. It is an ideal choice for noise sensitive Analog RF Front−Ends used in Telecom Equipment. The NCP59800 is available in the 3 mm×3 mm DFN8 package.
Applications
- Telecom Infrastructure
- Audio
- High−Speed I/F (PLL/VCO)
Key features
- Operating Input Voltage Range: 2.2 V to 6.0 V
- Output Voltage Range: 0.8 V to 5 V (adjustable)
- Quiescent Current typ. 60 μA
- Low Dropout: 200 mV typ. at 1 A, VOUT = 2.5 V
- ±2.5% VOUT Accuracy across Load/Line/Temperature
- Stable with Small 4.7 μF Ceramic Capacitors
- Very−Low Noise: Typically 15 μVRMS from 100 Hz to 100 kHz
- Over−Current and Thermal Shutdown Protection
- Available in 3 x 3 mm DFN8 Package
- These Devices are Pb −Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV59800BMWADJTBG#C892997onsemi · DFN-8(3x3) | onsemi | DFN-8(3x3) | 5 | ₹114.52 · 5 in stock | View |
 | AP7361C-FGE-7#C460398DIODES · DFN3030-8-EP | DIODES | DFN3030-8-EP | 3,157 | ₹81.19 · 3,157 in stock | View |
 | MCP1726-ADJE/MF#C184287MICROCHIP · DFN-8-EP(3x3) | MICROCHIP | DFN-8-EP(3x3) | 94 | ₹205.59 · 94 in stock | View |
 | HX59800-SQ#C22392180ZHHXDZ · DFN-8(3x3) | ZHHXDZ | DFN-8(3x3) | 338 | ₹55.50 · 338 in stock | View |
 | TPL910ADJQ-DF6R-S#C392359203PEAK · DFN-8(3x3) | 3PEAK | DFN-8(3x3) | 11 | ₹145.28 · 11 in stock | View |
