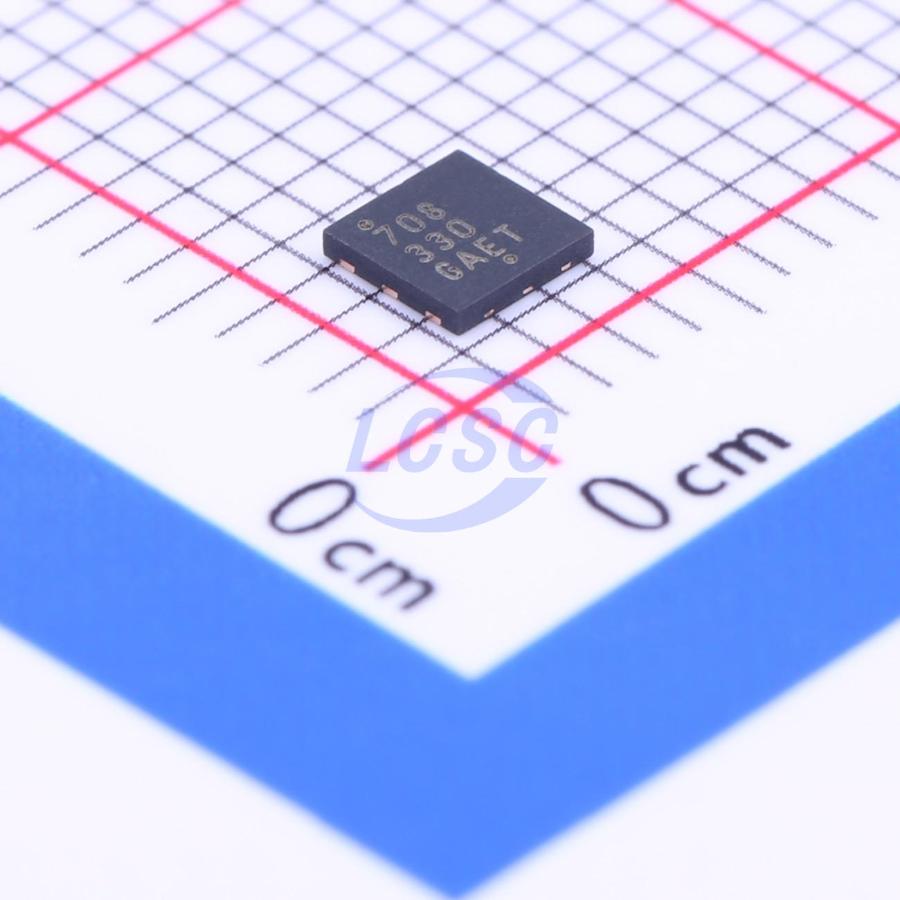

NCP708MU330TAG

The NCP708 is a Very Low Dropout Regulator which provides up to 1 A of load current and maintains excellent output voltage accuracy of 1.5% including line, load and temperature variations. The operating input voltage range from 2.4 V up to 5.5 V makes this device suitable for Li−ion battery powered products as well as post−regulation applications. The product is available in 3.3 V fixed output voltage option. Other voltage options are possible on request. NCP708 is fully protected against overheating and output short circuit. Small 6−pin UDFN6 3x3 package makes the device especially suitable for space constrained applications.

Applications

• Hard−Drives, SSDs
• Servers, Networking Equipment
• Telecom Equipment
• Battery Powered Applications

Key features

• Operating Input Voltage Range: 2.4 V to 5.5 V
• Fixed Output Voltage Option: 3.3 V
• Other Output Voltage Options Available on Request
• Low Quiescent Current of Typ. 200 μA
• Very Low Dropout: 250 mV Max. at IoUT = 1 A
• ±1.5% Accuracy Over Load/Line/Temperature
• High PSRR: 70 dB at 1 kHz
• Internal Soft−Start to Limit the Inrush Current
• Thermal Shutdown and Current Limit Protections
• Stable with a 4.7 μF Ceramic Output Capacitor
• Available in UDFN6 3x3 mm Package
• These are Pb−Free Devices
