ChipNoboDatasheet (PDF)

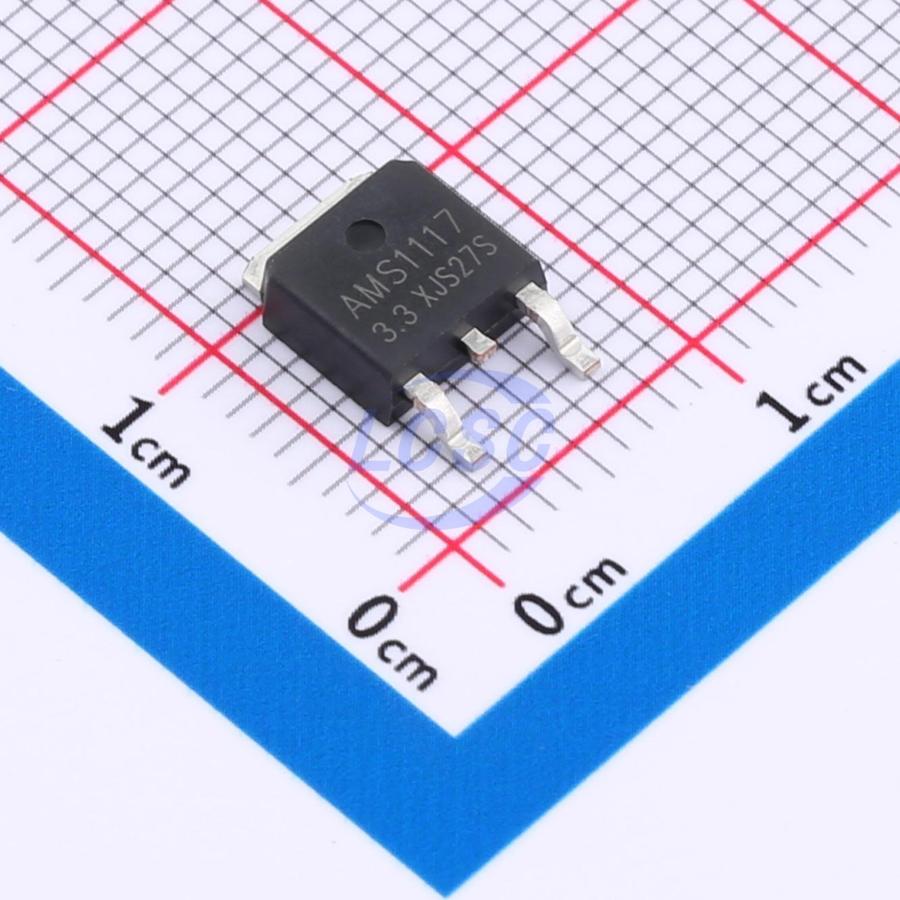

NCV1117DT33T5G-CN
Positive Adjustable TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252RoHSActive
IC REG LINEAR 3.3V 1A TO-252
- Manufacturer
- ChipNobo
- Manufacturer part #
- NCV1117DT33T5G-CN
- Store part #
- C49006716
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,237 in stock
#C49006716
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.11 | ₹59.11 |
| 10+ | ₹46.50 | ₹465.00 |
| 30+ | ₹41.08 | ₹1,232.40 |
| 100+ | ₹34.35 | ₹3,435.00 |
| 500+ | ₹31.30 | ₹15,650.00 |
| 1,000+ | ₹29.34 | ₹29,340.00 |
1 × ₹59.11
₹59.11
excl. GST
₹69.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCV1117DT33T5G-CN
₹59.11 for 1 + GST
Specifications
- Output Voltage
- 3.3V;1.25V~18.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 20V
- Output Current
- 1A
- Output Type
- Adjustable
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.432 g
Overview
NCV1117DT33T5G-CN is a low dropout positive voltage regulator capable of delivering over 1.0A output current across the entire temperature range, with a maximum dropout voltage of 1.2V at 800mA. The output voltage is 3.3V, maintaining regulation without a minimum load requirement. The series also includes an adjustable output version, allowing the output voltage to be programmed between 1.25V and 18.8V via two external resistors. On-chip trimming adjusts the reference/output voltage accuracy to within ±1.0%. Internal protection features include output current limiting, safe operating area compensation, and thermal shutdown. The NCV1117DT33T5G-CN operates with input voltages up to 20V. The device is available in a TO-252 package.
Applications
- Voltage regulation points for consumer and industrial equipment
- Post-stage regulation in switching power supplies
- Hard disk drive controllers
- Battery chargers
Key features
- Output current exceeding 1.0A
- Maximum dropout voltage of 1.2V at 800mA across the full temperature range
- Fixed output voltage of 3.3V
- Optional adjustable output voltage
- No minimum load required for fixed voltage output devices
- Reference/output voltage trimmed to ±1.0%
- Current limiting, safe operating area, and thermal shutdown protection
- Input operating voltage up to 20V
