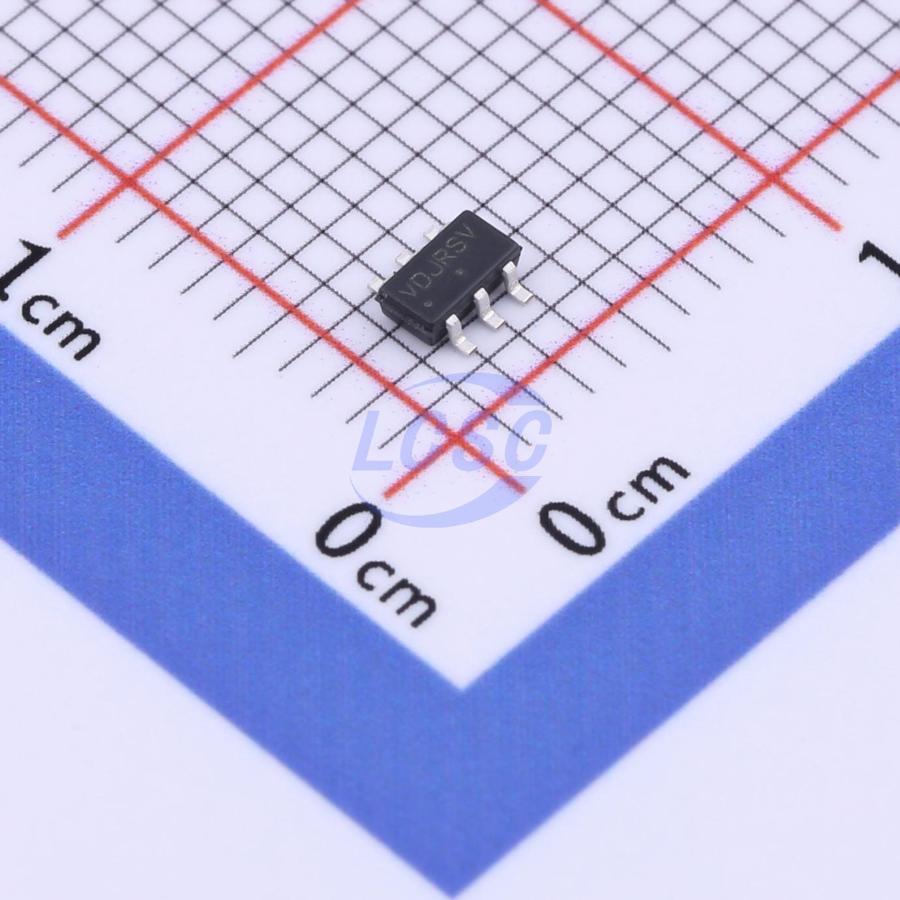

NCV308SNADJT1G

The NCP308 microprocessor supervisory product family is designed to assert a RESET signal when either the SENSE pin voltage drops below VIT or the Manual Reset input (MR) is driven low. The RESET output remains asserted for a programmable delay time after both MR and SENSE voltages return above the respective thresholds. A broad range of voltage threshold and reset delay time options are available, allowing NCP308 series to be used in a wide range of applications. Reset threshold voltages can be factory−set from 0.82 V to 3.3 V or from 4.4 V to 5.0 V, while the NCP308XXADJ can be used for any voltage above 0.405 V using an external resistor divider.

Applications

• DSP or Microcontroller Applications
• Notebook/Desktop Computers
• PDAs/Hand−Held Products
• Portable/Battery−Powered Products
• FPGA/ASIC Applications

Key features

• Wide Supply Voltage Range 1.6 to 5.5 V
• Very Low Quiescent Current 1.6 μA
• Fixed Threshold Voltage Versions for Standard Voltage Rails Including 0.9 V, 1.2 V, 1.25 V, 1.5 V, 1.8 V, 1.9 V, 2.5 V, 2.8 V, 3.0 V, 3.3 V, 5.0 V
• Adjustable Version with Low Threshold Voltage 0.405 V (min)
• High Threshold Voltage Accuracy: 0.31% typ
• Support Manual Reset Input (MR)
• Open−Drain RESET Output (Push−pull Output upon Request)
• Flexible Delay Time Programmability: 1.25 ms to 10 s
• Temperature Range: -40°C to +125°C
• Small TSOP−6 and WDFN6 2 x 2 mm, Pb−Free packages
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices
