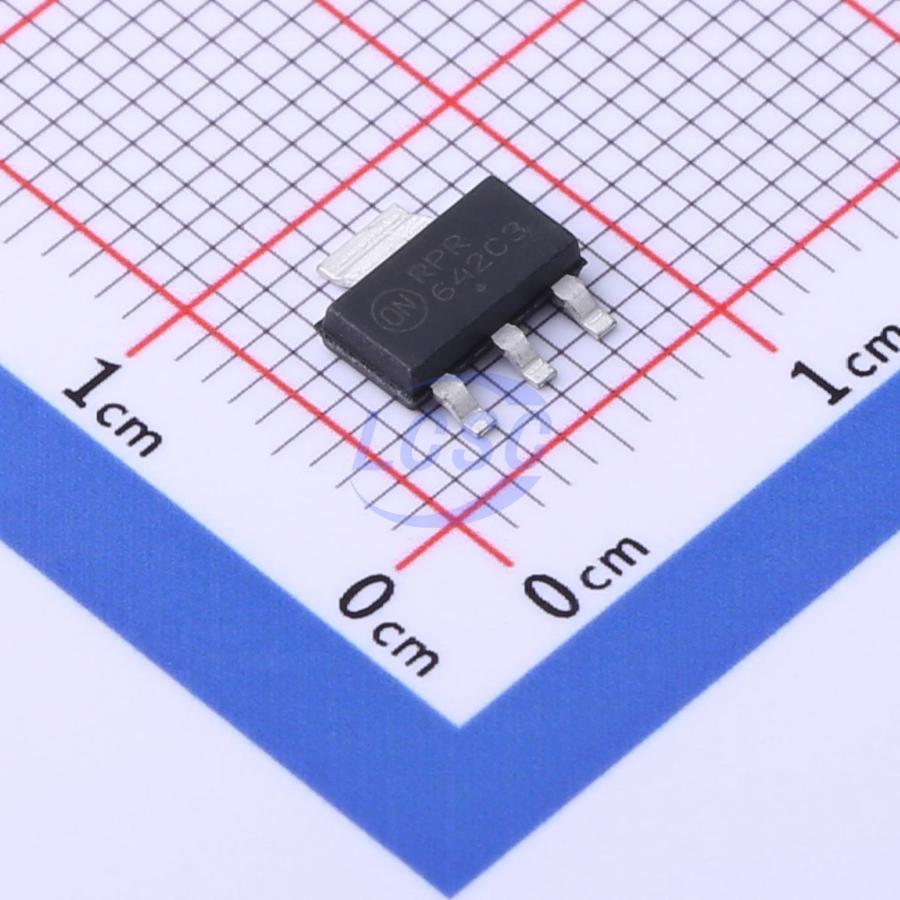

NCV4264-2CST33T3G
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
Linear Regulator, Low Dropout, Low IQ
- Manufacturer
- onsemi
- Manufacturer part #
- NCV4264-2CST33T3G
- Store part #
- C556473
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,123 in stock
#C556473
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹144.05 | ₹144.05 |
| 10+ | ₹119.03 | ₹1,190.30 |
| 30+ | ₹105.10 | ₹3,153.00 |
| 100+ | ₹89.43 | ₹8,943.00 |
| 500+ | ₹78.33 | ₹39,165.00 |
| 1,000+ | ₹75.08 | ₹75,080.00 |
1 × ₹144.05
₹144.05
excl. GST
₹169.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NCV4264-2CST33T3G
₹144.05 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 45V
- Features
- Reverse polarity voltage protection;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.156 g
Overview
The NCV4264−2C is a low quiescent current consumption LDO regulator. Its output stage supplies 100 mA with ±2.0% output voltage accuracy. Maximum dropout voltage is 500 mV at 100 mA load current. It is internally protected against 45 V input transients, input supply reversal, output overcurrent faults, and excess die temperature. No external components are required to enable these features.
Key features
- 3.3 V and 5.0 V Fixed Output
- ±2.0% Output Accuracy, Over Full Temperature Range
- 33 μA Typical Quiescent Current
- 500 mV Maximum Dropout Voltage at 100 mA Load Current
- Wide Input Voltage Operating Range of 4.5 V to 45 V
- Internal Fault Protection: -42 V Reverse Voltage, Short Circuit/Overcurrent, Thermal Overload
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- This is a Pb−Free Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLE42662GSV33HTMA2#C148289Infineon · SOT-223 | Infineon | SOT-223 | 3 | ₹323.75 · 3 in stock | View |
 | NCV4264-2ST33T3G#C895032onsemi · SOT-223 | onsemi | SOT-223 | 1 | ₹121.82 · 1 in stock | View |
 | NCV8664CST33T3G#C604074onsemi · SOT-223 | onsemi | SOT-223 | 63 | ₹218.40 · 63 in stock | View |
| NCV4266-2CST33T3G#C603921onsemi · SOT-223 | onsemi | SOT-223 | 65 | ₹317.97 · 65 in stock | View | |
 | RS3007-3.3YD3#C5372516RUNIC · SOT-223 | RUNIC | SOT-223 | 210 | ₹30.20 · 210 in stock | View |
