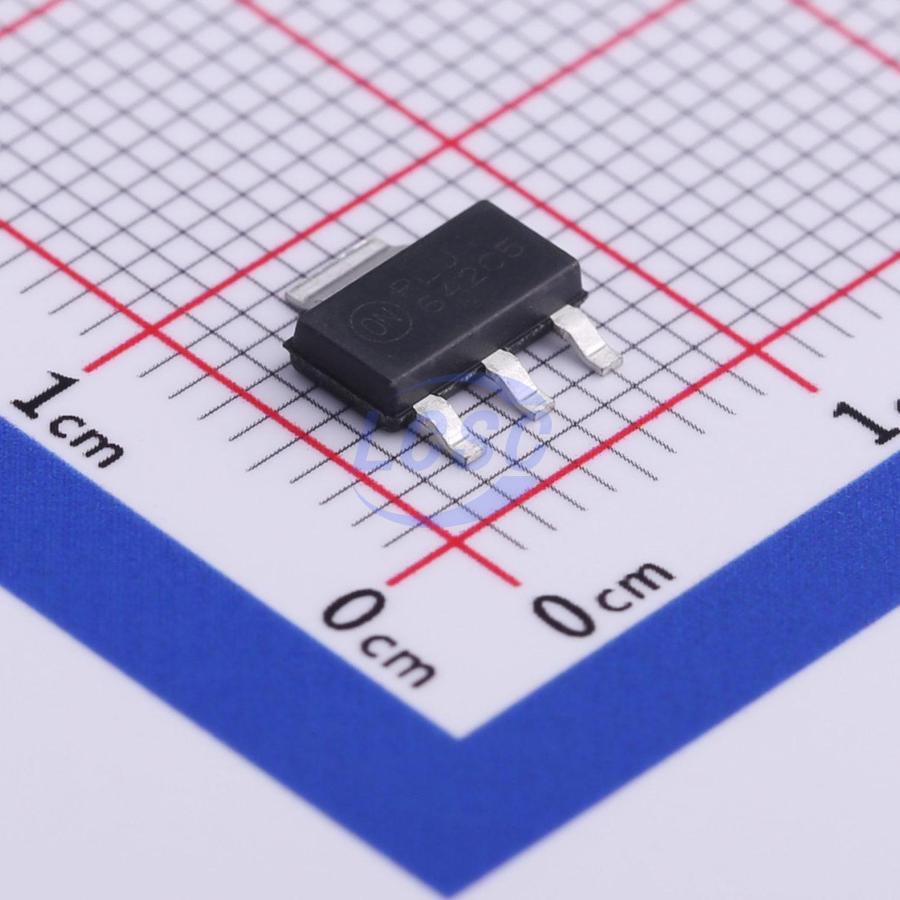

NCV4264-2CST50T3G
5V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3ROHS3 CompliantActive
Linear Regulator, Low Dropout, Low IQ
- Manufacturer
- onsemi
- Manufacturer part #
- NCV4264-2CST50T3G
- Store part #
- C513030
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,886 in stock
#C513030
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.95 | ₹69.95 |
| 10+ | ₹55.83 | ₹558.30 |
| 30+ | ₹48.66 | ₹1,459.80 |
| 100+ | ₹41.49 | ₹4,149.00 |
| 500+ | ₹37.36 | ₹18,680.00 |
| 1,000+ | ₹35.19 | ₹35,190.00 |
1 × ₹69.95
₹69.95
excl. GST
₹82.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NCV4264-2CST50T3G
₹69.95 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 45V
- Features
- Reverse polarity voltage protection;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.157 g
Overview
The NCV4264−2C is a low quiescent current consumption LDO regulator. Its output stage supplies 100 mA with ±2.0% output voltage accuracy. Maximum dropout voltage is 500 mV at 100 mA load current. It is internally protected against 45 V input transients, input supply reversal, output overcurrent faults, and excess die temperature. No external components are required to enable these features.
Key features
- 3.3 V and 5.0 V Fixed Output
- ±2.0% Output Accuracy, Over Full Temperature Range
- 33 μA Typical Quiescent Current
- 500 mV Maximum Dropout Voltage at 100 mA Load Current
- Wide Input Voltage Operating Range of 4.5 V to 45 V
- Internal Fault Protection
- -42 V Reverse Voltage
- Short Circuit/Overcurrent
- Thermal Overload
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- This is a Pb−Free Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLE42642GHTSA2#C3743740Infineon · SOT-223-4 | Infineon | SOT-223-4 | 542 | ₹251.58 · 542 in stock | View |
 | NCV4264-2ST50T3G#C73115onsemi · SOT-223-3 | onsemi | SOT-223-3 | 8,248 | ₹78.86 · 8,248 in stock | View |
 | TLE42644G#C539683Infineon · SOT-223-4 | Infineon | SOT-223-4 | 257 | ₹162.33 · 257 in stock | View |
 | NCV8664ST50T3G#C417290onsemi · SOT-223 | onsemi | SOT-223 | 2,879 | ₹186.74 · 2,879 in stock | View |
 | TLE4266G#C3747248Infineon · SOT-223-4 | Infineon | SOT-223-4 | 12 | ₹172.27 · 12 in stock | View |
