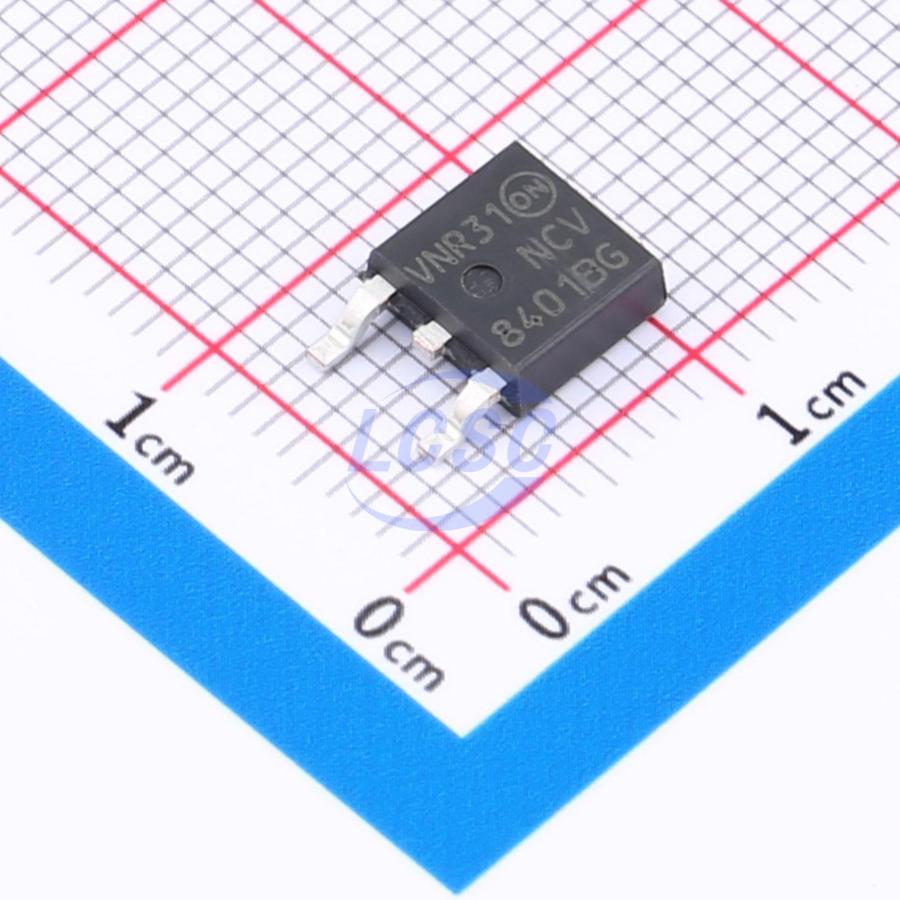

NCV8401BDTRKG
1 Active High 30A Low Side Switch DPAK Power Distribution Switches, Load Drivers RoHS
DPAKROHS3 CompliantActive
Self-Protected Low Side Driver with Temperature and Current Limit
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8401BDTRKG
- Store part #
- C604055
- Package / case
- DPAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,338 in stock
#C604055
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹205.09 | ₹205.09 |
| 10+ | ₹171.88 | ₹1,718.80 |
| 30+ | ₹151.06 | ₹4,531.80 |
| 100+ | ₹129.79 | ₹12,979.00 |
| 500+ | ₹120.23 | ₹60,115.00 |
| 1,000+ | ₹115.89 | ₹1,15,890.00 |
1 × ₹205.09
₹205.09
excl. GST
₹242.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCV8401BDTRKG
₹205.09 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 30A
- RDS(on)
- 23mΩ
- Operating Voltage
- 42V
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.383 g
Overview
NCV8401A/B is a three terminal protected Low-Side Smart Discrete device. The protection features include overcurrent, overtemperature, ESD and integrated Drain-to-Gate clamping for overvoltage protection. This device offers protection and is suitable for harsh automotive environments.
Applications
- Switch a Variety of Resistive, Inductive and Capacitive Loads
- Can Replace Electromechanical Relays and Discrete Circuits
- Automotive / Industrial
Key features
- Short Circuit Protection
- Thermal Shutdown with Automatic Restart
- Over Voltage Protection
- Integrated Clamp for Inductive Switching
- ESD Protection
- dV/dt Robustness
- Analog Drive Capability (Logic Level Input)
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
