NDPDatasheet (PDF)

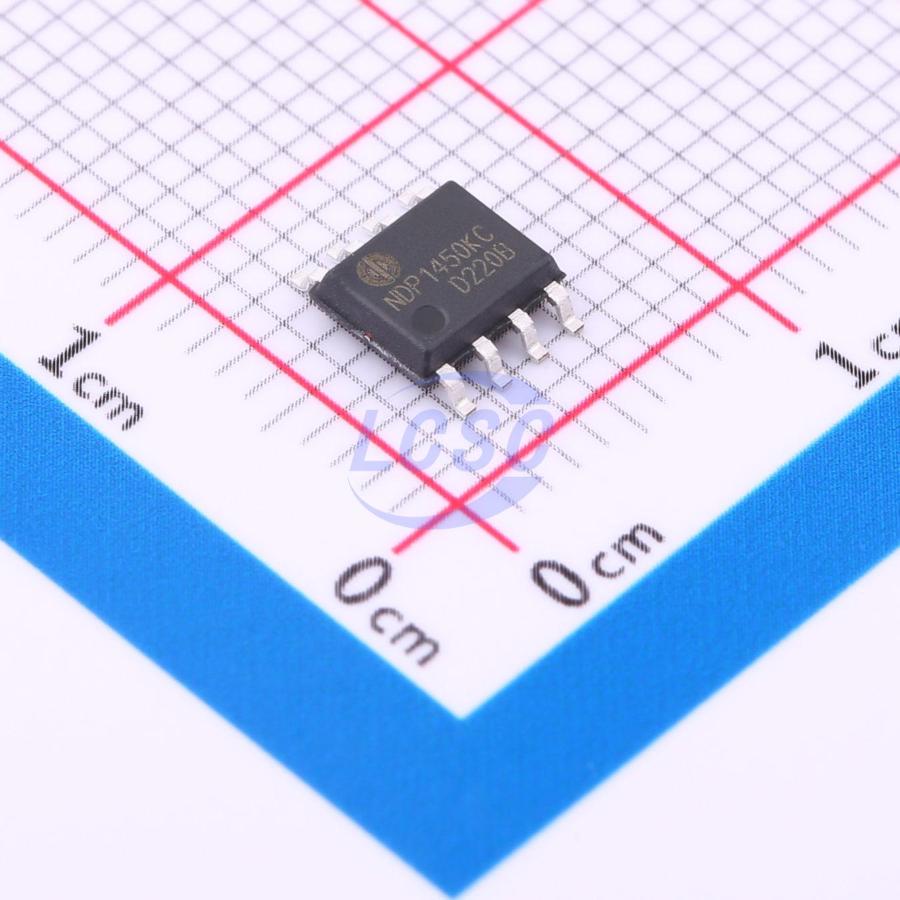

NDP1450KC
Step-down type 110kHz~150kHz Adjustable 3.3V~25V 5A SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
High Efficiency Synchronous Step-Down DC/DC Converter
- Manufacturer
- NDP
- Manufacturer part #
- NDP1450KC
- Store part #
- C7420583
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,778 in stock
#C7420583
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.59 | ₹67.59 |
| 10+ | ₹53.03 | ₹530.30 |
| 30+ | ₹46.73 | ₹1,401.90 |
| 100+ | ₹38.90 | ₹3,890.00 |
| 500+ | ₹35.43 | ₹17,715.00 |
| 1,000+ | ₹33.25 | ₹33,250.00 |
1 × ₹67.59
₹67.59
excl. GST
₹79.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NDP1450KC
₹67.59 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Function
- Step-down type
- Frequency - Switching
- 110kHz~150kHz
- Number of Outputs
- 1
- Features
- Hiccup current limiting;Adjustable output voltage;Cable compensation;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 7V~37V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.3V~25V
- Output Current
- 5A
- Quiescent Current
- 1.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.119 g
Overview
NDP1450KC is a high efficiency, monolithic synchronous step - down DC/DC converter utilizing a jitter frequency mode control architecture. Capable of delivering up to 8A continuous load with excellent line and load regulation. The device operates from an input voltage range of 7V to 37V and provides an adjustable output voltage from 3.3V to 25V. The NDP1450KC features short circuit and thermal protection circuits to increase system reliability. The internal soft start avoids input inrush current during startup.
Applications
- Car Charger
- Rechargeable Portable Devices
- Networking Systems
- Distributed Power Systems
Key features
- The NDP1450KC require a minimum number of external components and a wide array of protection features to enhance reliability.
- VIN Range: 7V to 37V
- 5A Continuous Output Current
- Up to 95% Efficiency @ 24V Input
- Dual - Channel CC/CV Mode Control
- Brick Wall Current Limit
- Built in Adjustable Line - Compensation
- Adjustable Output Voltages
- Output Voltage Accuracy: ±1.5%
- Current Limit Accuracy: ±4mV
- Integrated 14mΩ High Side Switch
- Integrated 14mΩ Low Side Switch
- Fixed Frequency: 130kHz
- Burst Mode Operation at Light Load
- Internal Loop Compensation
- Internal Soft Start SOP8 Package
