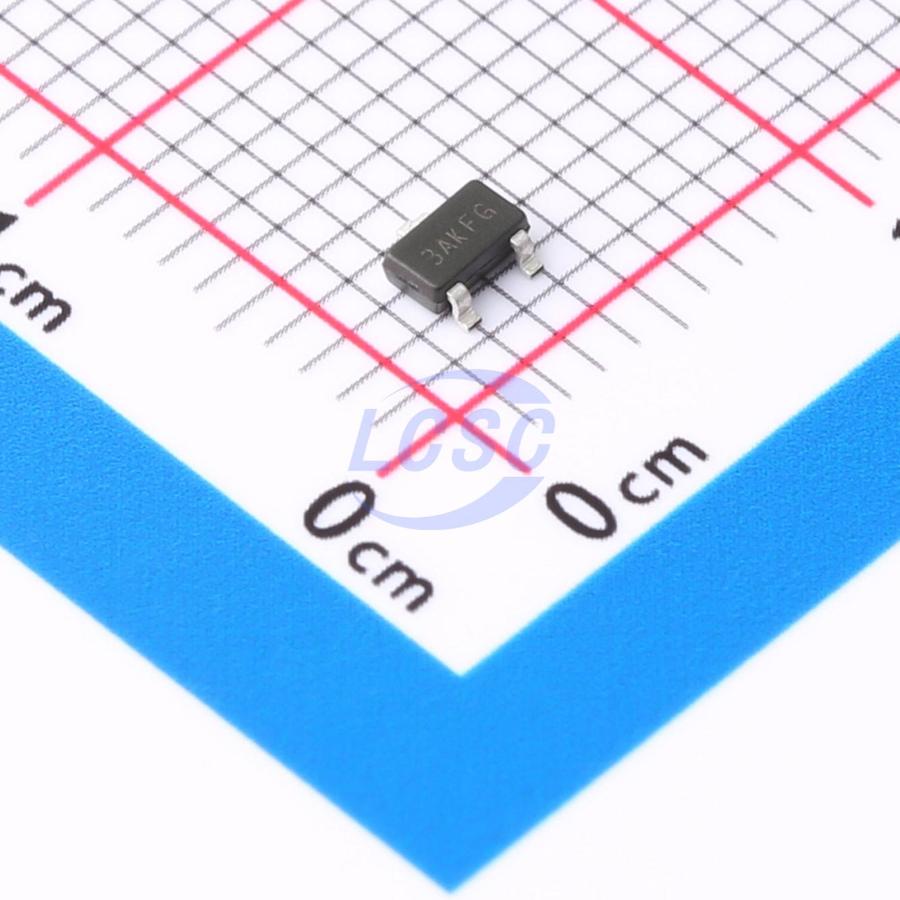

NH6302A30M
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3
SOT-23-3ROHS CompliantActive
IC REG LINEAR 3V 300mA SOT-23-3
- Manufacturer
- NH
- Manufacturer part #
- NH6302A30M
- Store part #
- C7427775
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,190 in stock
#C7427775
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.58 | ₹95.80 |
| 100+ | ₹7.58 | ₹758.00 |
| 300+ | ₹6.58 | ₹1,974.00 |
| 3,000+ | ₹5.82 | ₹17,460.00 |
| 6,000+ | ₹5.23 | ₹31,380.00 |
| 9,000+ | ₹4.92 | ₹44,280.00 |
10 × ₹9.58
₹95.80
excl. GST
₹113.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NH6302A30M
₹95.80 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 300mA
- Features
- Enable control;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The NH6302 series are a group of positive voltage regulators manufactured by CMOS technologies with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The NH6675 series can deliver 150mA output current and allow an input voltage as high as 50V. The series are very suitable for the battery-powered equipments, such as RF applications and other systems requiring a quiet voltage source.
Applications
- Cordless Phones
- Radio control systems
- Laptop, Palmtops and PDAs
- Single-lens reflex DSC
- PC peripherals with memory
Key features
- Low Quiescent Current: 2uA
- Operating Voltage Range: 2.5V~18V
- Output Current: 300mA
- Low Dropout Voltage: 160mV@100mA(VOUT = 3.3V)
- Output Voltage: 1.2~12V
- High Accuracy: ±2%/±1%(Typ.)
- High Power Supply Rejection Ratio: 65dB@1kHz
- Low Output Noise: 27xVOUT μVRMS (10Hz~100kHz)
- Excellent Line and Load Transient Response
- Built-in Current Limiter, Short-Circuit Protection
- Over-Temperature Protection
