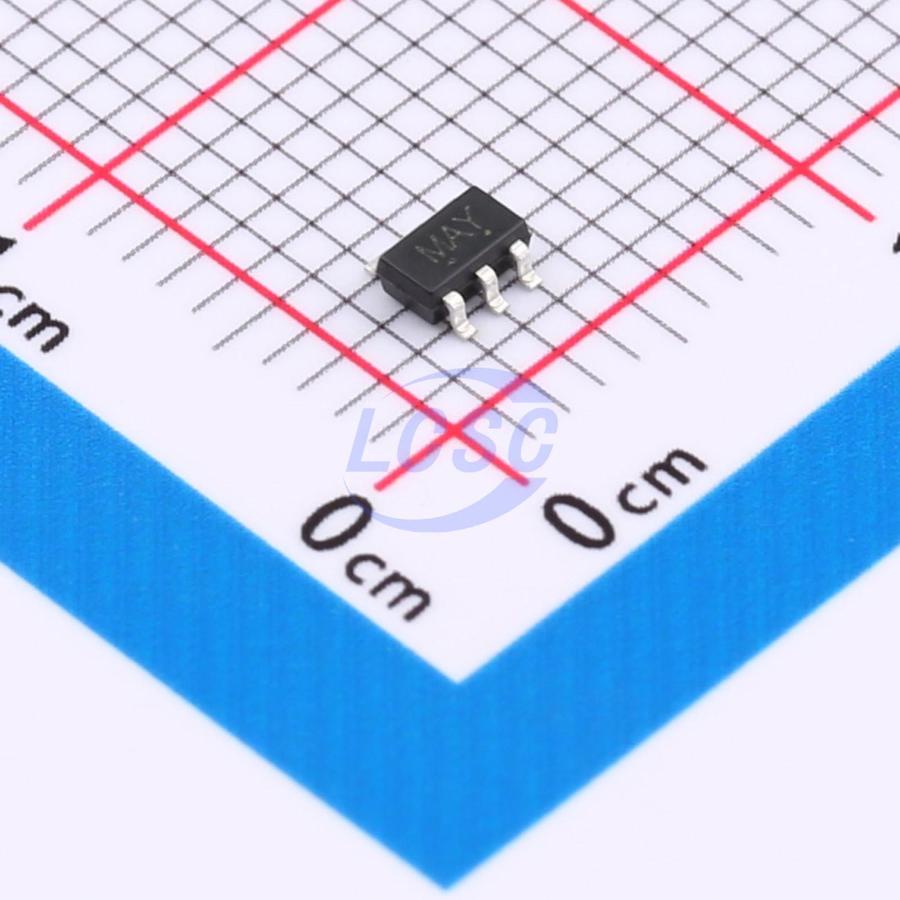

NL27WZ14DTT1G-TP
Schmitt trigger 1.65V~5.5V 5ns@5V,50pF 10uA 2 SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
DUAL SCHMITT-TRIGGER INVERTER WITH 5V TOLERANT INPUT
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NL27WZ14DTT1G-TP
- Store part #
- C41408017
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,690 in stock
#C41408017
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.75 | ₹77.50 |
| 100+ | ₹6.14 | ₹614.00 |
| 300+ | ₹5.32 | ₹1,596.00 |
| 1,000+ | ₹4.71 | ₹4,710.00 |
| 5,000+ | ₹4.22 | ₹21,100.00 |
| 10,000+ | ₹3.98 | ₹39,800.00 |
10 × ₹7.75
₹77.50
excl. GST
₹91.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL27WZ14DTT1G-TP
₹77.50 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV;800mV
- Propagation Delay
- 5ns@5V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The NL27wZ14 is a high-performance, low-power, low-voltage, Si-gate CMOS device which provides two inverters with Schmitt trigger action. It is capable of transforming slowly changed input signals into sharply defined, jitter-free output signals.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply: Single
- Controller: Analog and Digital
Key features
- Operation Voltage Range: 1.65V ~ 5.5V
- 5V Tolerant Input/Output for Interfacing with 5V logic
- ±24mA Output Drive (VCC = 3.0V)
- CMOS Low-Power Consumption and High Noise Immunity
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
